Pylontech Powercube SC1000-200J | 200A High Voltage BMS

€1.531,86 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–8 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

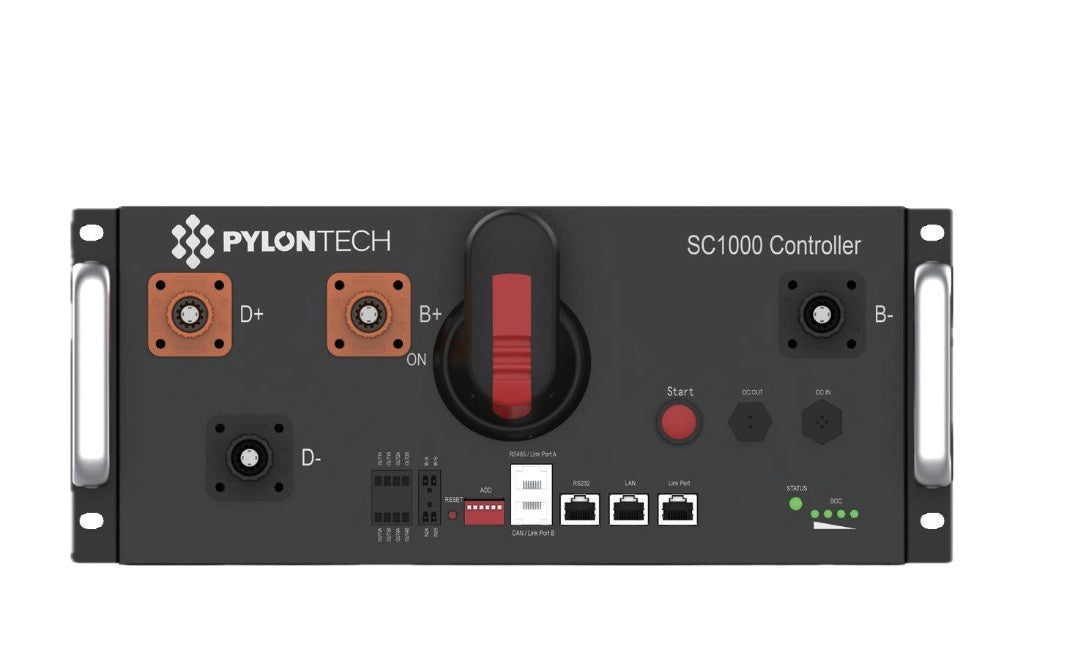

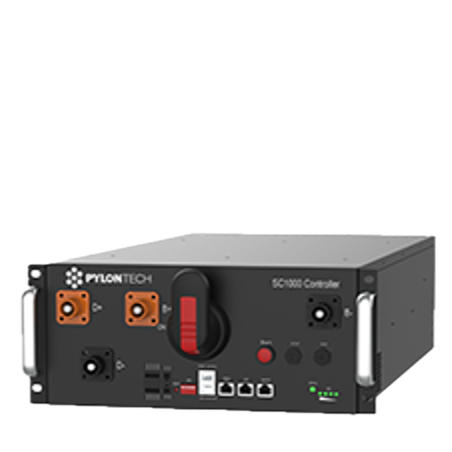

The Pylontech SC1000-200J Main Controller is the high-performance control unit designed for demanding Commercial & Industrial (C&I) energy storage systems. Unlike standard controllers, this unit supports continuous charge and discharge currents of up to 200A within a 1000V system architecture. This high-current capability is essential for projects requiring rapid power delivery and optimized LCOE efficiency in heavy-duty applications.

  • High Current Rated: Delivers 200A continuous output for high-power inverters.
  • 1000V Architecture: Manages DC system voltages up to 1000V (Powercube M1).
  • Connectivity: Seamless integration via CAN/RS485 with major inverter brands.
  • Certified Safety: Fully compliant with IEC 62619, CE, and UN38.3 standards.

Industrial Grade Power Management (Pylontech)

Serving as the intelligent brain of the battery rack, the SC1000-200J manages the series-connected H48050 modules with precision. Its 200A capacity allows for robust pairing with large-scale hybrid inverters from manufacturers like Solis, Sungrow, and GoodWe. The controller provides real-time monitoring of voltage, current, and temperature, ensuring protection against thermal runaway while maximizing the operational lifespan of the battery stack through active balancing. This makes it the ideal choice for peak-shaving and backup power solutions.

Expert Note: This product is the BMS Main Controller only. Operational systems require Pylontech H48050 battery modules and a compatible rack enclosure to function.
Technical Spec Value
Brand & Model Pylontech SC1000-200J (Main Controller)
Operating Voltage 200V ~ 1000V DC
Max. Current (Continuous) 200 A
Communication CAN / RS485 / Modbus
Self-Consumption ≤ 8 W
Protection Class IP20 (Indoor)
Certifications IEC 62619, CE, UN38.3
Download Datasheet Download Manual
What is the advantage of the SC1000-200J?

The primary advantage is its 200A current rating, which is double that of the standard SC1000-100S. This allows the battery system to support higher power loads and faster charging rates, which is critical for industrial applications and high-capacity inverters.

Does this controller include battery cells?

No, this unit is strictly the Battery Management System (BMS) controller. It must be connected to a stack of Pylontech H48050 battery modules housed in a rack to form a complete energy storage system.

Is it compatible with 1000V systems?

Yes, the SC1000-200J is designed for High Voltage systems up to 1000V DC. It can manage series connections of up to 23 H48050 modules, providing significant energy density for commercial installations.
