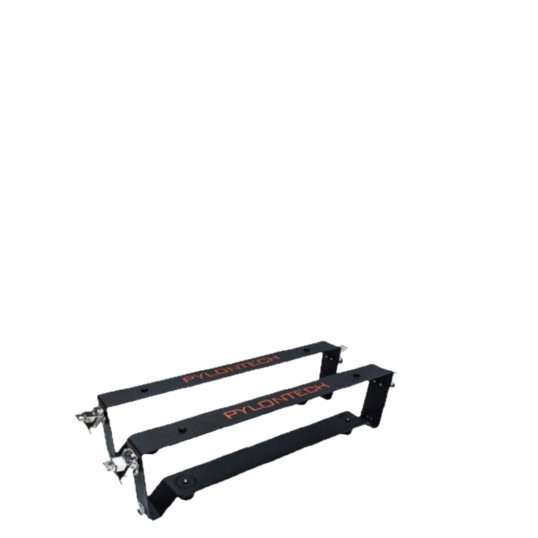

• Pylontech US3000 bracket
  • US-serie_brackets
1 2

Pylontech US3000C Stacking Brackets | Set of 2 | Max 4 High

€45,98 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech US3000C Stacking Brackets provide a robust, cabinet-free solution for deploying your energy storage system. Engineered specifically for the US3000C chassis, this kit anchors modules together vertically using a secure interlocking mechanism. By eliminating the need for a 19-inch server rack, these brackets significantly reduce the installation footprint while ensuring compliance with thermal management requirements through optimal spacing.

  • Cabinet-Free Install: Save on space and equipment costs.
  • Max 4 Units: Officially rated for stacks of up to 4 batteries.
  • Interlocking Design: Lockers connect brackets for structural rigidity.
  • Airflow Optimized: Maintains necessary gap for natural convection.

Secure Vertical Integration

Stability is paramount when stacking heavy LFP modules. To install, the standard rack-mounting tabs on the US3000C must first be removed (dismantle 12 screws), allowing the brackets to fit perfectly around the unit. The brackets utilize "location holes" to align each module precisely. This system supports a vertical stack of up to four units, creating a compact 14.2 kWh tower that remains stable and secure.

Note: One bracket set is required per battery module. You must remove the battery's original front mounting ears before fitting these brackets.
Feature Value
Brand & Model Pylontech US3000C Bracket Kit
Kit Contents 2x Bracket (Front/Back)
Mounting Type Vertical Stacking
Max Stack Height 4 Modules
Compatibility Pylontech US3000C Only
Download Manual
How many bracket sets do I need?

You require 1 set of brackets per battery. For example, a stack of 3 batteries requires 3 sets of brackets to ensure they are all locked together and stable on the floor.

Can I use these for US5000 batteries?

No, the US5000 has different dimensions and requires its own specific bracket kit. These brackets are designed exclusively for the US3000 series dimensions.

Is stacking 4 units safe?

Yes, Pylontech officially rates the US3000C brackets for a maximum stack height of 4 units. For larger systems, start a new stack or use a server cabinet.
