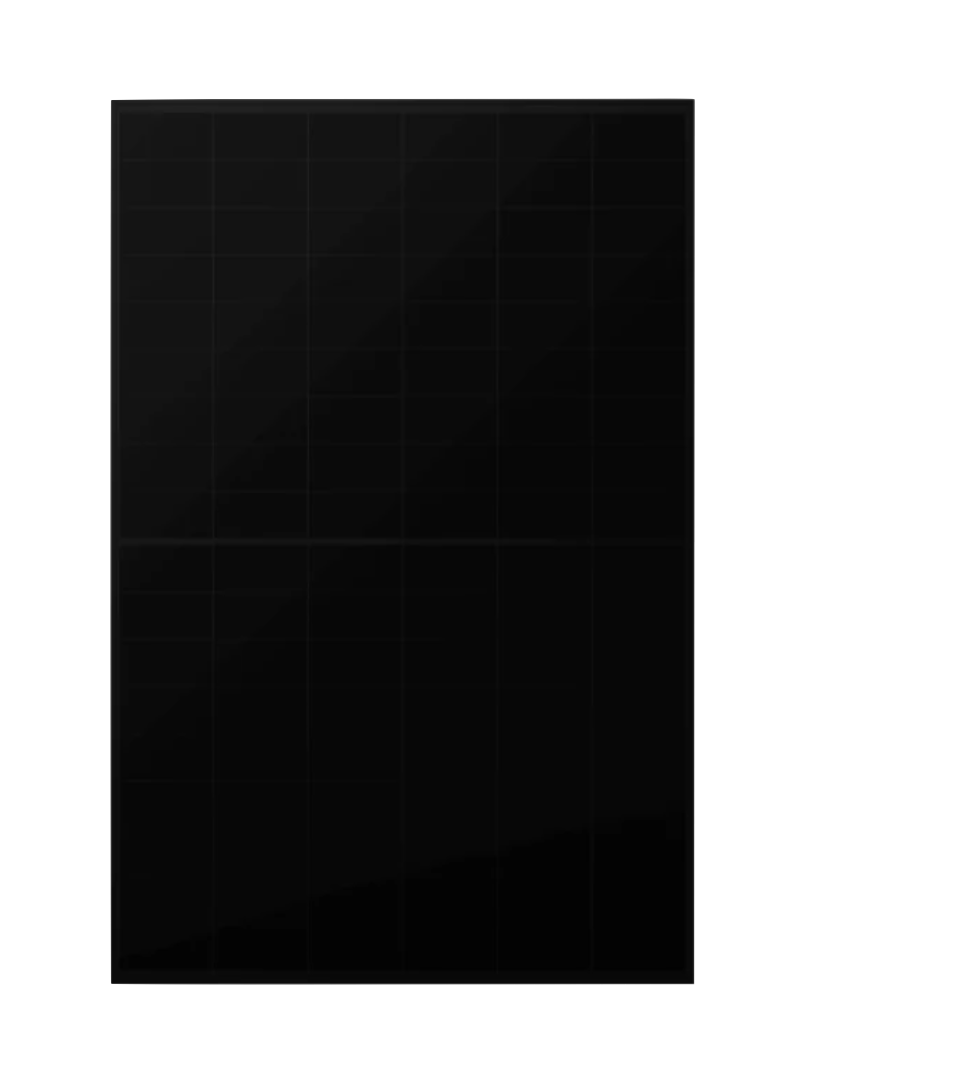

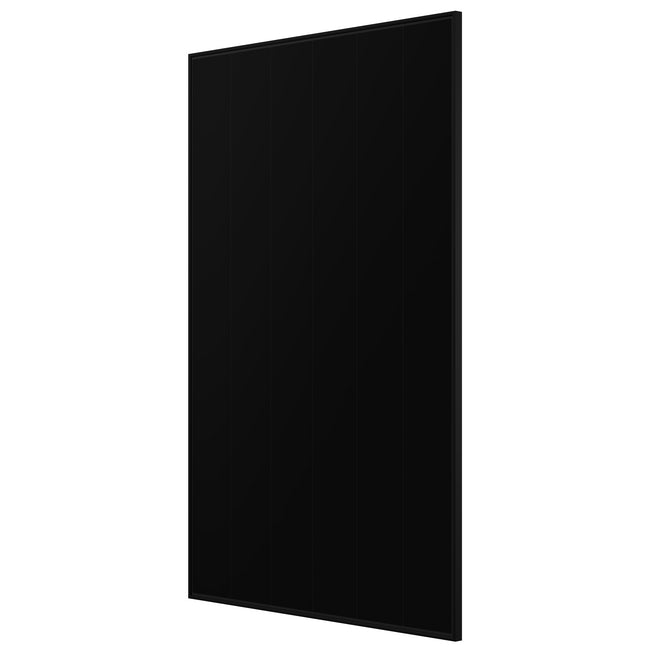

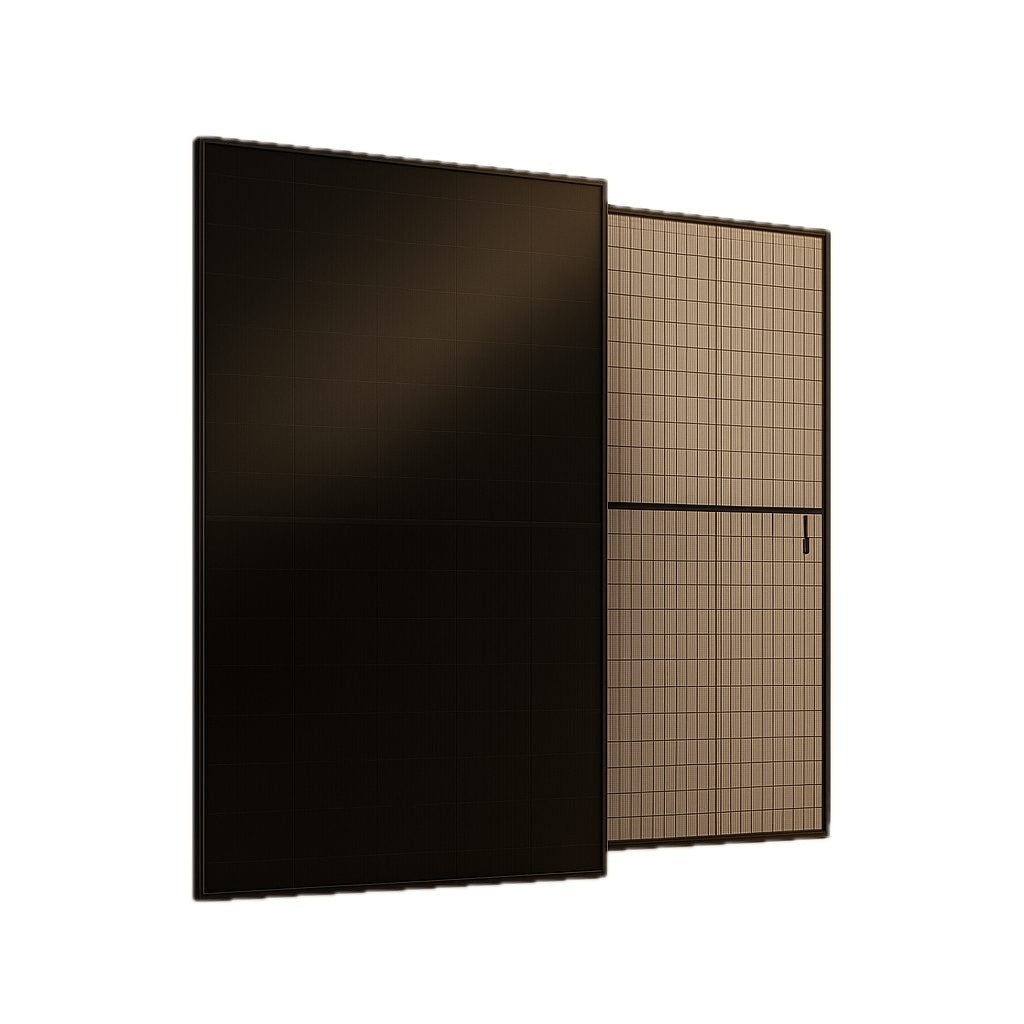

Aiko Neostar 3S 475Wp Dual Glass All Black (N-Type ABC)
Couldn't load pickup availability
The Aiko Neostar 3S (475Wp) combines extreme durability with aesthetic perfection. This Dual Glass panel features the award-winning N-Type ABC technology and a completely black design ('All Black'). Thanks to innovative shading optimization, this panel delivers top performance even on roofs with complex shading.
- 475Wp Power: High output (23.8% efficiency) on a compact surface (1762 x 1134 mm).
- Dual Glass Construction: Superior protection against micro-cracks, humidity, and mechanical stress.
- Shading Optimization: Minimizes loss from partial shading through individual cell control.
- Premium Warranty: 25-year product warranty and 30-year linear performance warranty.
Maximum Lifespan with Dual Glass ABC Technology
The Neostar 3S stands out with its robust glass-glass construction, significantly extending lifespan and reducing fire risk. The ABC (All Back Contact) cells have no metal grids on the front, ensuring a 100% black appearance and maximum light absorption. Compatible with powerful inverters from Solis and GoodWe thanks to optimized current characteristics.
| Feature | Value |
|---|---|
| Brand & Model | Aiko Neostar 3S (AIKO-A475-MCE54Db) |
| Power (Pmax) | 475 Wp |
| Cell Technology | N-Type ABC / Dual Glass |
| Efficiency | 23.8% |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | approx. 21.0 kg |
| Connector | MC4-Evo2 |
| Warranty | 25-Year Product / 30-Year Power |
What are the benefits of Dual Glass?
Dual glass panels consist of two layers of tempered glass (front and back) instead of glass and a plastic backsheet. This makes the panel extremely resistant to micro-cracks (caused by wind/snow), moisture ingress, and chemical influences (salt/ammonia). As a result, the panel degrades slower and lasts longer.
Inverter compatibility?
With an Imp of approx. 14A, this panel is compatible with modern string inverters from Solis and GoodWe (High Current versions). For micro-inverters (Enphase/APsystems), please check if the input current is supported.
What is shading optimization?
Aiko's 'Partial Shading Optimisation' ensures that when one cell is shaded, only that specific cell is switched off. In traditional panels, an entire row or section often drops out. This results in significantly higher yield in real-world situations with chimneys, trees, or dirt.
