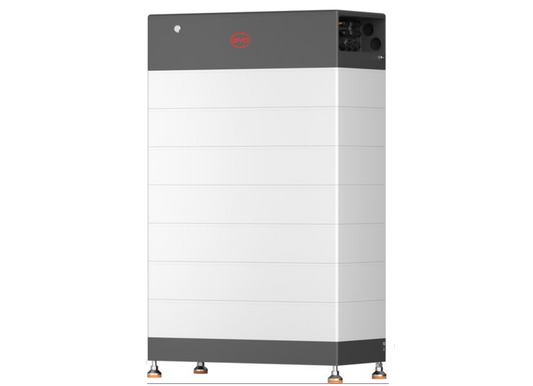

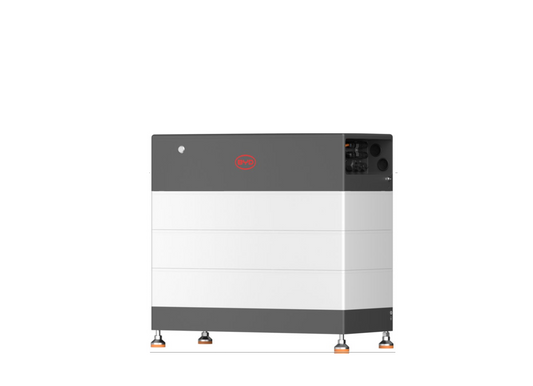

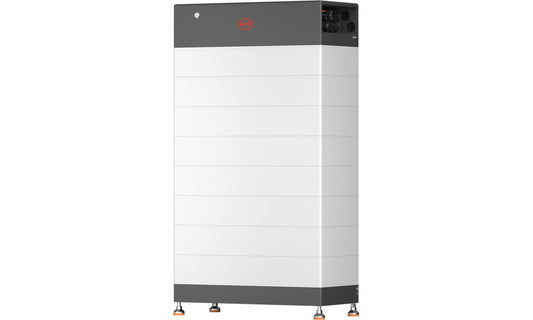

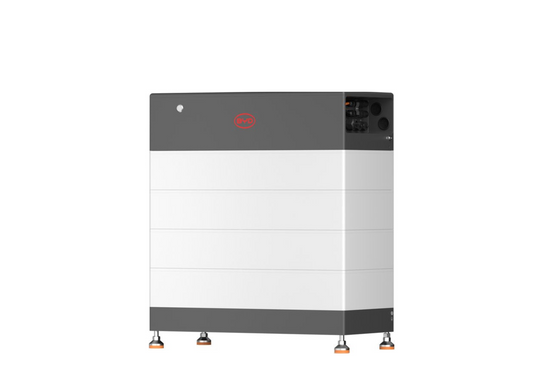

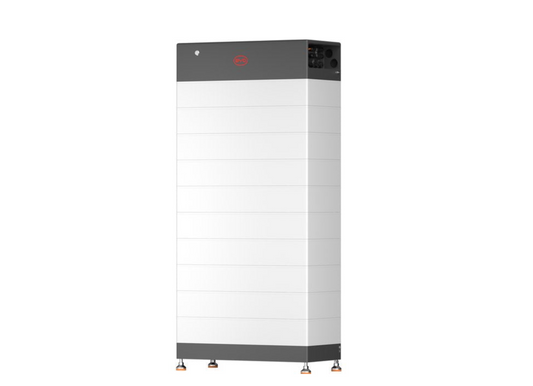

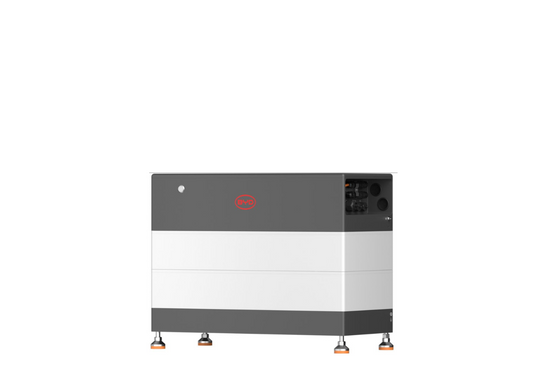

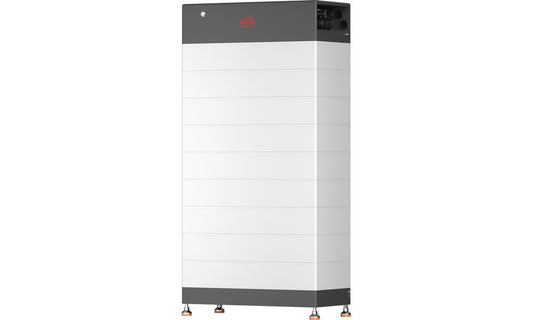

BYD Battery-Box Home Battery with Blade Technology (HVB) and LVS/HVM+/HVS+

Smart battery advice

Which BYD home battery suits your situation?

Calculate the recommended battery capacity based on your consumption, solar panels and energy contract — and automatically discover matching BYD products from the current Rebor range.

Start the battery calculator →

BYD (Build Your Dreams) is the world's largest manufacturer of rechargeable batteries and the pioneer of Blade Battery™ technology — a LiFePO₄ cell architecture that has set the industry standard for safety and service life in both electric vehicles and residential energy storage. The BYD Battery-Box Premium series is CE and IEC62619 certified, available in high-voltage (HVS/HVM) and low-voltage (LVS) versions, and scalable from 4 kWh (LVS, 1 module) to 256 kWh (LVS, maximum parallel configuration). Rebor supplies BYD Battery-Box directly from stock to installers and private customers in the Netherlands, Belgium and the rest of Europe.

With net metering being phased out and dynamic energy contracts on the rise, a high-quality home battery is becoming increasingly relevant: you consume more of your self-generated solar power and feed less back into the grid at low feed-in tariffs. Calculate your personal payback period using our free battery calculator.

Key specifications at a glance

  • Cell technology: LiFePO₄ — Blade Battery™ architecture (cobalt-free)
  • Capacity range HVS: 5.12 kWh – 38.4 kWh (max. 3 towers in parallel)

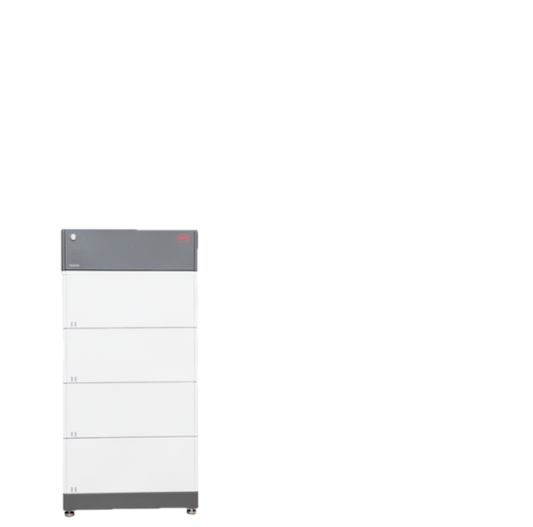

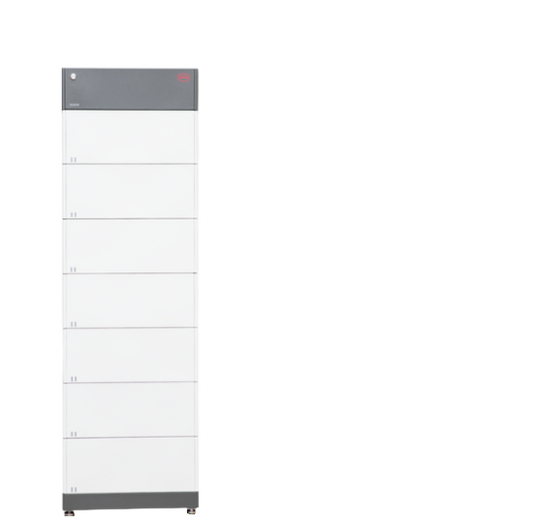

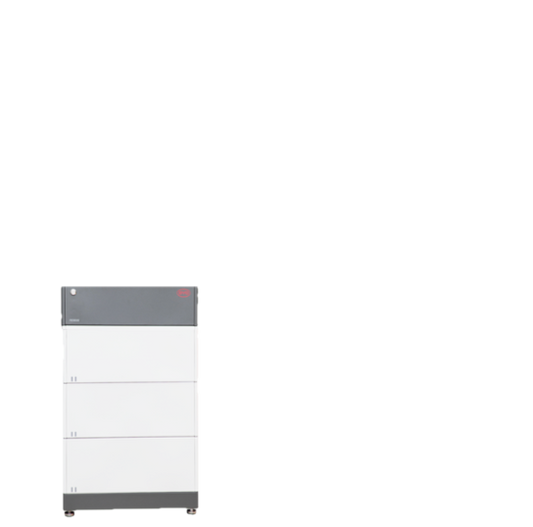

  • Capacity range HVM: 8.28 kWh – 66.2 kWh (max. 3 towers in parallel)

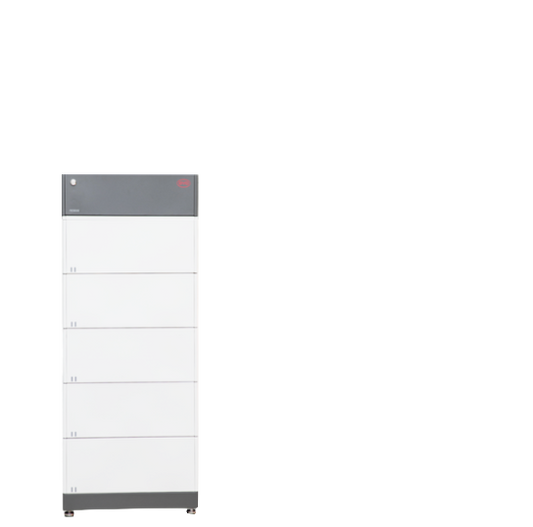

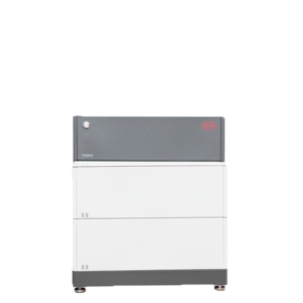

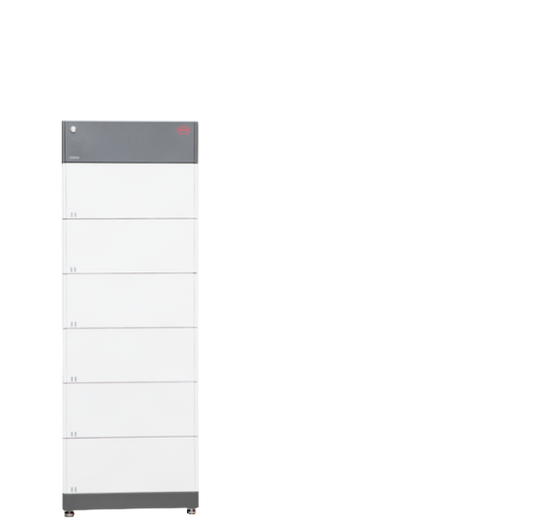

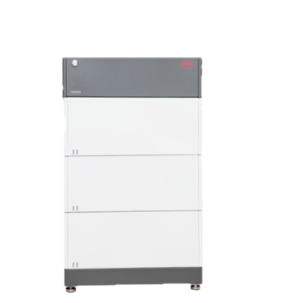

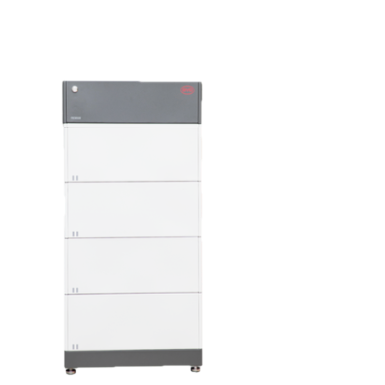

  • Capacity range LVS: 4 kWh – 256 kWh (max. 64 modules in parallel)
  • Service life: ≥6,000 cycles at 90% DoD (according to BYD product documentation)
  • System efficiency: ≥95% (LVS) — ≥96% (HVS/HVM)
  • Communication: CAN / RS485
  • Protection class: IP55
  • Certifications: CE, IEC62619, UN38.3, VDE2510-50, CEC
  • Warranty: 10-year product warranty
  • Safety: Passes the Nail Penetration Test without thermal runaway (according to BYD test documentation)
📢 Update — July 2026: BYD compatibility lists updated (v2.21 / v1.12)

The official compatibility lists for the BYD Battery-Box HVS/HVM (v2.21) and LVS (v1.12) have been updated with new inverter models. Always check the latest version before installation — see the downloads section at the bottom of this page.

Model comparison: HVS, HVM and LVS

BYD Battery-Box Premium is available in three main lines, each optimised for a specific voltage level and application profile. The table below shows the technical differences side by side, based on the official BYD datasheets.

Feature Battery-Box HVS Battery-Box HVM Battery-Box LVS
Voltage level High Voltage (HV) High Voltage (HV) Low Voltage (LV)

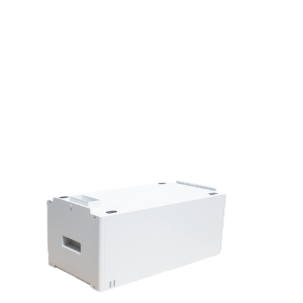

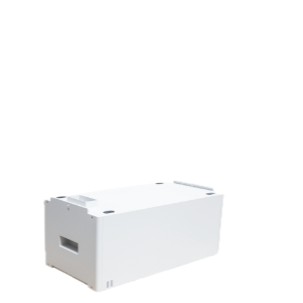

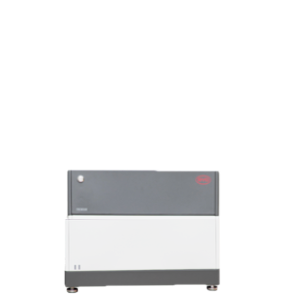

Capacity per module 2.56 kWh 2.76 kWh 4.0 kWh (51.2V)

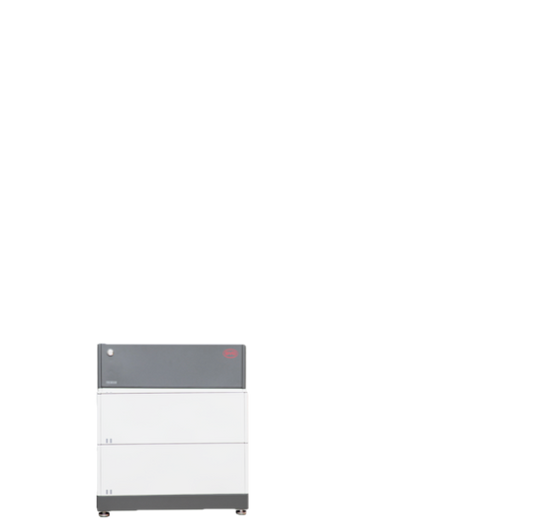

Min. system capacity 5.12 kWh (2 modules) 8.28 kWh (3 modules) 4.0 kWh (1 module)

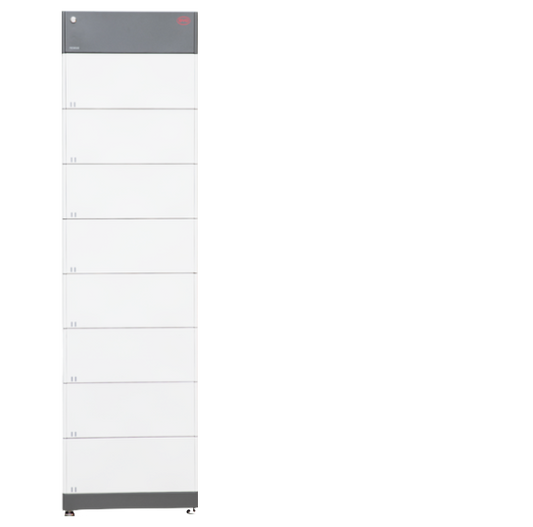

Max. system capacity (1 tower) 12.80 kWh (5 modules) 22.08 kWh (8 modules) 24.0 kWh (6 modules)
Max. system capacity (parallel) 38.4 kWh (3 towers in parallel) 66.2 kWh (3 towers in parallel) 256 kWh (max. 64 modules in parallel)
Nominal voltage 204V – 512V 153V – 409V 51.2V nominal
Service life (cycles) ≥6,000 at 90% DoD ≥6,000 at 90% DoD ≥6,000 at 90% DoD
System efficiency ≥96% ≥96% ≥95%
Protection class IP55 IP55 IP55
Communication CAN / RS485 CAN / RS485 CAN / RS485
Operating temperature -10°C to +50°C -10°C to +50°C -10°C to +50°C
Application Residential HV — compact installations Residential HV — higher capacity Residential LV — broad inverter compatibility, highest parallel capacity

The key difference: the HVS and HVM require an inverter with a dedicated HV battery input (e.g. Solis S6-EH1P/EH3P, GoodWe ET/EH). The LVS operates at 51.2V and is compatible with a wider range of inverters. Notably, with 256 kWh (64 modules in parallel), the LVS offers the highest maximum system capacity of the entire BYD Battery-Box line. Consult the official compatibility lists for your specific inverter model.

Decision matrix — which BYD system suits your situation?

Use the matrix below to quickly select the right BYD Battery-Box system based on your specific situation and inverter.

Situation Recommended system Advantage
Average household, Solis or GoodWe HV inverter BYD HVS — 5.12–12.80 kWh Compact HV solution, easy installation
Home with heat pump or EV charger, HV inverter BYD HVM — 8.28–22.08 kWh Higher capacity per tower, suitable for higher consumption
Inverter without native HV battery input BYD LVS — 4–24 kWh (1 tower) Broad compatibility at 51.2V LV level
Entry-level installation, limited budget, expand later BYD LVS — 4 kWh (1 module, expandable) Lowest entry price, modularly expandable up to 256 kWh
Dynamic energy contract, maximum self-consumption BYD HVM — 13.80–22.08 kWh Higher capacity for price arbitrage and self-consumption
Large home or light commercial (>24 kWh), LV inverter BYD LVS — multiple modules in parallel (max. 256 kWh) Highest parallel capacity in the BYD line
Large home or light commercial (>22 kWh), HV inverter BYD HVM — max. 3 towers in parallel (66.2 kWh) Higher HV capacity via parallel towers
Expanding an existing HVS installation Additional BYD HVS modules (max. 5 per tower, max. 3 towers) Modular expansion within the existing system

Tip: Not sure which capacity best suits your consumption profile and inverter? Use our free battery calculator for personalised, tailored advice.

Compatibility & installation

Compatible inverters

BYD Battery-Box systems are compatible with a wide range of hybrid inverters. The most commonly used combinations in the Rebor range:

  • Solis hybrid inverters — S6-EH1P and S6-EH3P series (HV input, compatible with HVS/HVM)
  • GoodWe hybrid inverters — ET/EH/BH series (HV input, compatible with HVS/HVM)
  • SMA, SolarEdge, Fronius, Victron Energy, Huawei, KACO — see the official compatibility lists for exact models
Important: Always check the official BYD compatibility list for your exact inverter model before purchase and installation. The HVS/HVM requires an inverter with a native HV battery input. The LVS operates at 51.2V and is compatible with a wider range of inverters.

Step-by-step installation instructions

HVS & HVM — high-voltage installation
  1. Check that your inverter is on the official BYD HVS/HVM compatibility list.
  2. Determine the required number of modules (HVS: 2–5 modules; HVM: 3–8 modules) based on your capacity requirements.

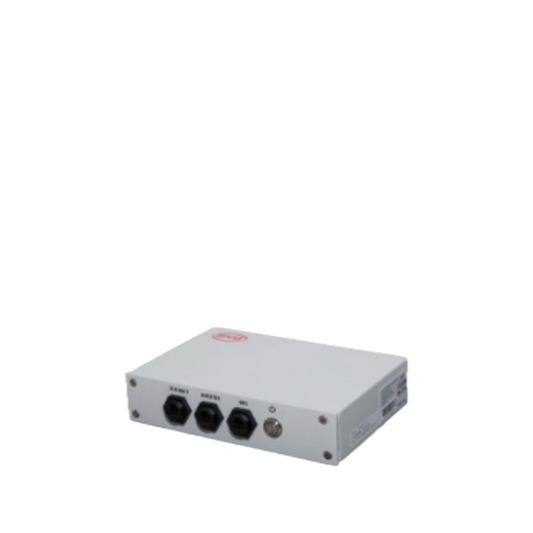

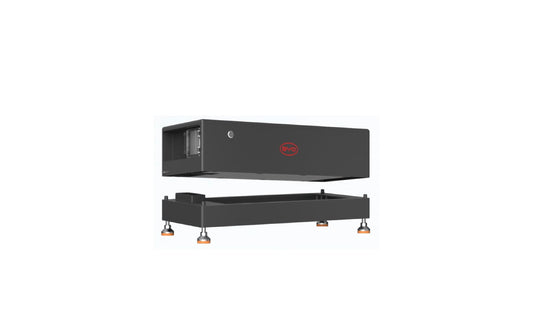

  3. Mount the modules in the tower — the BMS module on top, the power modules below.
  4. Connect the DC power cables in accordance with the BYD installation manual.
  5. Connect the CAN or RS485 communication cable between the BYD BMS module and the inverter.
  6. Select the correct battery family in the inverter settings ("BYD" or "Lithium HV").
  7. Start up the system in the correct order: switch on the battery first, then the inverter.
  8. Check via the inverter app (e.g. SolisCloud or GoodWe SEMS Portal) that the battery is correctly recognised and the SOC is visible.
⚠️ Safety: HV battery systems can carry voltages of up to 512V (HVS) or 409V (HVM). Work may only be carried out by certified installers. Fully de-energise the system before starting any work and wear PPE in accordance with local standards (NEN/AREI/VDE).
LVS — low-voltage installation
  1. Check that your inverter is on the official BYD LVS compatibility list.
  2. Determine the required number of modules (1–6 modules per tower, 4–24 kWh).
  3. Mount the modules in accordance with the BYD LVS installation manual.

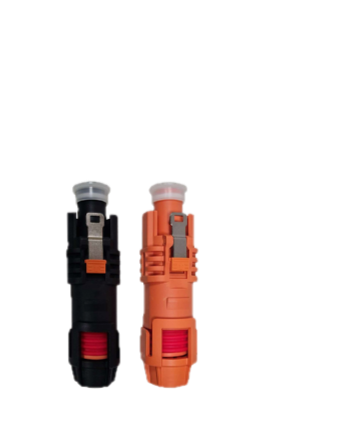

  4. Connect the DC power cables to the inverter (51.2V LV input).
  5. Connect the CAN or RS485 communication cable.
  6. Select the correct battery family in the inverter settings.
  7. Start up the system: battery first, then the inverter.
  8. Check that the total system capacity is displayed correctly in the inverter app.

Popular applications

  • Home with solar panels — maximising self-consumption
  • Solar panels + heat pump — higher capacity recommended (HVM ≥13.8 kWh or LVS ≥12 kWh)
  • Solar panels + EV charger — flexible charging with self-generated energy
  • Dynamic energy contract — charge at low rates, discharge at high rates
  • Peak shaving — reduce grid costs for business connections

🔧 Troubleshooting & diagnostic protocol BYD Battery-Box

Note: The diagnostic information below is based on the official BYD Service Guideline & Checklist (V1.0) and the practical experience of installers. A single documented case is not proof of a structural product defect. In the event of persistent faults, always consult the official BYD service organisation via your installer.

Common faults and solutions

Battery is not recognised by the inverter

Symptom: The inverter shows no battery data, BMS communication fails, or the battery does not appear in the inverter app.

Step-by-step diagnosis:

  1. Check that the correct communication protocol is selected in the inverter (CAN or RS485 — depending on the inverter model and BYD series).
  2. Check the communication cable: are CAN High/Low or RS485 A/B correctly connected to the right port of the BYD BMS module?
  3. Check that the correct battery family is selected in the inverter settings (e.g. "BYD" or "Lithium HV").
  4. Check the start-up sequence: the battery must be switched on before the inverter.
  5. Check that the BMS module is correctly mounted (at the top of the tower) and that all internal connections are fully clicked into place.
  6. Restart the system in the correct order after every change.

Specific to Solis inverters: In the Solis settings, select the correct battery family and check the BMS port setting. See the Solis inverter product page for compatibility information.

Specific to GoodWe inverters: Check the BMS protocol setting in the SEMS Portal. See the GoodWe inverter product page for compatibility information.

BYD alarm light is on or the system switches to protection mode

Symptom: A red or orange LED on the BMS module is lit or flashing. The system no longer charges or discharges.

Step-by-step diagnosis (according to BYD Service Guideline V1.0):

  1. Read out the error code via the inverter app (e.g. SolisCloud or GoodWe SEMS Portal) — the BYD BMS communicates error codes via the inverter.
  2. Consult the error code table in the BYD Service Guideline for the specific meaning.
  3. Check the cell voltages via the BMS interface — are there any modules with deviating voltage?
  4. Check the ambient temperature — BYD HVS/HVM and LVS operate optimally between -10°C and +50°C (according to the official BYD datasheet).
  5. Check all internal connections and the BMS module for damage.

Most common causes:

  • Overvoltage or undervoltage on a module → cell balancing required
  • Temperature outside the operating range (-10°C to +50°C) → check installation location and ventilation
  • BMS ↔ inverter communication error → check cabling and protocol setting
  • Incorrect start-up sequence → restart the system according to the installation manual
⚠️ Safety: Fully de-energise the system before inspecting internal connections. BYD HV systems can carry voltages of up to 512V (HVS) or 409V (HVM), even after the inverter has been switched off.
Battery does not charge fully or SOC display is incorrect

Symptom: The battery never reaches 100% SOC, or the displayed SOC differs from the actual state of charge.

Diagnosis and solution:

  1. Check that the charging voltage in the inverter is set correctly according to the BYD specifications for your model.
  2. Perform a full charge/discharge cycle to reset the SOC calibration.
  3. Check that the inverter sets the correct maximum charging current — an excessive charging current can put the BMS into protection mode.
  4. Check the cell balance via the BMS interface — large SOC deviations between modules may indicate a balancing problem.

Persistent SOC deviations after several full cycles: consult the BYD Service Guideline or contact the BYD service organisation via your installer.

Blade Battery™ safety — what to do in the event of physical damage

Background: The BYD Blade Battery™ is designed to prevent thermal runaway. According to BYD test documentation, the cell passes the Nail Penetration Test without fire or explosion. However, this does not mean that physical damage is without risk.

In the event of visible damage to modules or the enclosure:

  1. Switch off the system immediately via the inverter and the BYD main switch.
  2. Leave the room and ensure ventilation.
  3. Contact your installer and the BYD service organisation before restarting.
  4. Never restart the system without a professional inspection after physical damage.
⚠️ Safety: LiFePO₄ cells may be damaged internally after mechanical damage without any visible external damage. Always have damaged modules inspected by a certified technician.

Diagnostic checklist

  • ☐ BYD model (HVS/HVM/LVS) and inverter model recorded
  • ☐ Inverter firmware version checked
  • ☐ Correct battery family selected in the inverter
  • ☐ Communication cable (CAN/RS485) correctly connected
  • ☐ Start-up sequence checked (battery first, then inverter)
  • ☐ BMS module correctly mounted (at the top of the tower)
  • ☐ Error code read out via the inverter app
  • ☐ Cell voltages checked via the BMS interface
  • ☐ Ambient temperature checked (-10°C to +50°C)
  • ☐ Compatibility list consulted for the inverter model
  • ☐ BYD Service Guideline consulted
  • ☐ Service ticket created with the BYD service organisation if necessary

Frequently asked questions about BYD Battery-Box

Does my current inverter work with BYD?

In most cases yes, particularly with Solis and GoodWe hybrid inverters. BYD is known for its broad compatibility. Always check the official compatibility list (HVS/HVM or LVS) in the downloads section for your exact inverter model. Please note: the HVS and HVM require an inverter with a native HV battery input; the LVS operates at 51.2V and is compatible with a wider range of inverters.

How many kWh do I need?

As a rule of thumb: 4–10 kWh for standard households that mainly want to cover their night-time consumption; 10–24 kWh for homes with a heat pump, electric car or high daily consumption. Thanks to BYD's modular design, you can easily add modules later. Calculate your personalised battery recommendation using our free battery calculator.

Are BYD batteries really safe (Blade Battery™)?

Yes. BYD's Blade Battery™ technology is a LiFePO₄ cell architecture that structurally counteracts thermal runaway. According to BYD test documentation, the cell passes the Nail Penetration Test without fire or explosion — a test that conventional NMC cells do not pass. This makes it one of the safest choices for home storage. All BYD Battery-Box systems are CE and IEC62619 certified.

What is the difference between BYD HVS, HVM and LVS?

The BYD HVS is a compact high-voltage system (204V–512V) with 2.56 kWh per module and a maximum of 12.80 kWh per tower (max. 38.4 kWh with 3 towers in parallel) — suitable for residential installations with an HV inverter. The BYD HVM offers higher capacity per tower (up to 22.08 kWh, 8 modules of 2.76 kWh, max. 66.2 kWh with 3 towers in parallel) at a voltage level of 153V–409V. The BYD LVS operates at 51.2V (low voltage) with 4 kWh per module, is compatible with a wider range of inverters and offers the highest parallel capacity in the BYD line: up to 256 kWh (64 modules in parallel).

Can I expand my BYD Battery-Box later?

Yes. BYD Battery-Box systems are modularly expandable. The HVS supports 2–5 modules per tower (5.12–12.80 kWh, max. 3 towers in parallel); the HVM supports 3–8 modules per tower (8.28–22.08 kWh, max. 3 towers in parallel); the LVS supports 1–6 modules per tower (4–24 kWh) and can be expanded to 64 modules in parallel (256 kWh). Expansion is possible with modules of the same type — do not mix HVS and HVM modules. Consult the official BYD documentation for the maximum configuration for your specific model.

Will a BYD home battery pay for itself?

The payback period depends on your electricity consumption, the number of solar panels, the phase-out of net metering and any dynamic energy tariffs. A BYD home battery helps increase self-consumption of solar power — you consume more of your self-generated energy and feed less back into the grid at low feed-in tariffs. With a service life of ≥6,000 cycles at 90% DoD and a 10-year warranty, BYD is designed for long-term returns. Calculate your indicative payback period using our battery calculator.

Downloads & warranty

Check the official documentation for a correct system configuration:

Warranty at a glance:

  • Product warranty: 10 years
  • Service life: ≥6,000 cycles at 90% DoD
  • Certifications: CE, IEC62619, UN38.3, VDE2510-50, CEC
  • Service: via your installer or the official BYD service organisation

Not sure which BYD Battery-Box best suits your home? Use our battery calculator for personalised, tailored advice, or contact our product specialists via the contact page.
