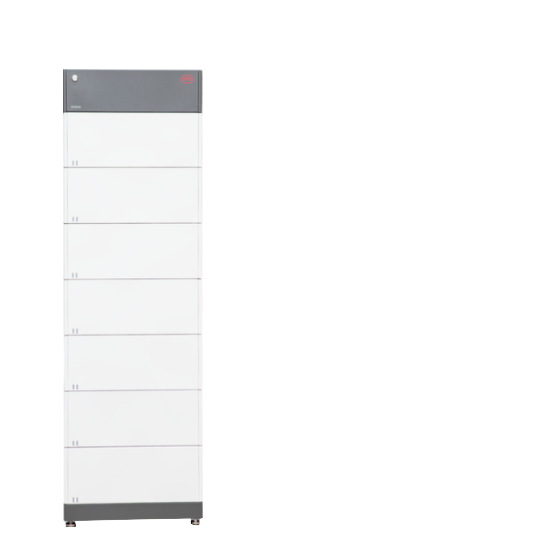

BYD Battery-Box HVM+ 19.3 (19.32kWh)
Couldn't load pickup availability
BYD Battery-Box HVM+ 19.3: Superior Storage for High Energy Demands
The BYD Battery-Box HVM+ 19.3 is a high-capacity energy storage solution tailored for modern homes and businesses. With a usable capacity of 19.32 kWh across 7 modules, this high-voltage system (nominal 358V) ensures maximum efficiency when paired with 3-phase hybrid inverters. It is the ideal choice for users with high consumption needs, such as EV charging or heat pump integration, offering robust performance and reliability.
- Usable Energy: 19.32 kWh (100% DOD)
- Configuration: 7 Modules (High Voltage)
- Safety: Cobalt-free LFP technology & VDE2510-50 certified
- Application: Suitable for On-Grid, Backup & Off-Grid
Technical Specifications
- Model: HVM+ 19.3
- Technology: Lithium Iron Phosphate (LiFePO4)
- Number of Modules: 7
- Nominal Voltage: 358.4 V
- Dimensions (H x W x D): 2227 x 610 x 282 mm
- Weight: 303.9 kg
- IP Class: IP55
- Certifications: VDE2510-50, IEC62619, CE, UN38.3
What is included in the package?
The package comes complete and ready for installation:
- 1x BCU (Battery Control Unit)
- 1x Base
- 7x HVM+ Battery Modules
- 1x Smart WiFi/LAN Module
- 2x Power cable connectors
- 1x Terminal resistor
- Mounting accessories (Screws, Hangers, Adjustable feet)
- Documentation (Quick Start Guide)
Which inverters are compatible?
The HVM+ 19.3 operates at a high voltage (~358V), making it compatible with leading 3-phase hybrid inverters:
- Solis: S6 Hybrid series
- GoodWe: ET series
- Other brands: Fronius Symo Gen24, Kostal Plenticore (always check the latest compatibility list).
Is the system expandable?
Yes. You can add 1 more module to this tower (max 8 modules = 22.1 kWh). For larger projects, you can connect up to 3 towers in parallel, reaching a massive 66.2 kWh total capacity.
Safety and Installation?
The patented internal plug connection eliminates the need for external wiring between modules, ensuring a safer and faster installation. The system is IP55 rated and meets the highest safety standards, including VDE2510-50.
Is this battery suitable for Time-of-Use tariffs?
Yes. With nearly 20 kWh of storage, the HVM+ 19.3 is perfect for leveraging dynamic energy tariffs. You can charge the battery during off-peak hours (low prices) and use that power during peak times, significantly reducing your energy bill.
View the full BYD Home Battery Collection.
