BYD Battery-Box Premium LVS 8.0 (48V Low Voltage System)
Couldn't load pickup availability

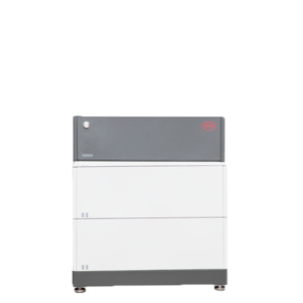

The BYD Battery-Box Premium LVS 8.0 sets the benchmark for Low Voltage (48V) energy storage. This system consists of a Power Distribution Unit (PDU) and two stacked LVS battery modules of 4 kWh each, providing a total usable capacity of 8.0 kWh. Featuring robust LiFePO4 technology and a patented internal plug connection, this system ensures maximum safety and easy installation without complex wiring between modules.
- Capacity: 8.0 kWh (Usable), modularly scalable.
- Low Voltage: 48V system voltage for maximum compatibility.
- Off-Grid Power: High discharge current for powerful backup applications.
- Flexible: IP55 enclosure, suitable for indoor and outdoor installation.
Technical Performance & Versatility
The LVS 8.0 delivers exceptional performance thanks to the parallel connection of internal modules. This ensures consistent high power output, essential for off-grid situations or emergency power supply. The system is scalable from 4 kWh to a massive 256 kWh (by connecting towers in parallel), growing alongside your energy needs.
Specifications
| Feature | Value |
|---|---|
| Model | LVS 8.0 |
| Usable Energy | 8.0 kWh |
| Number of Modules | 2x LVS (4.0 kWh) + 1x PDU/Base |
| Nominal Voltage | 51.2 V (Low Voltage) |
| Max. Output Current | 130 A |
| Dimensions (H/W/D) | 711 x 650 x 298 mm |
| Total Weight | 109 kg (2x 45kg module + 19kg PDU) |
| Protection Class | IP55 |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Communication | CAN |
What is included in the package?
The delivery of the BYD Battery-Box Premium LVS 8.0 includes:
- 2x LVS Battery Module: 4 kWh each (Note: 45 kg per module).
- 1x LVS PDU + Base: Power Distribution Unit and base (19 kg).
- Accessories: Connectors for DC and communication, wall brackets, and documentation.
Which inverters are compatible?
The LVS series is a 48V (Low Voltage) system. It requires compatible single-phase or three-phase LV inverters. We recommend:
- Solis: S6 Series Low Voltage Hybrid models.
- GoodWe: ES, EM, and SBP Series (Low Voltage).
Note: This system does not work with High Voltage inverters. Always consult the compatibility list.
Is the system expandable?
Yes, the LVS is extremely flexible. You can expand up to 6 modules (24.0 kWh) within a single tower. Additionally, you can connect up to 16 towers in parallel for a total capacity of 256 kWh. Expansion is possible at any time, regardless of the system's age.
Does this battery provide backup power?
Yes, thanks to its high discharge current capacity and Low Voltage architecture, the LVS 8.0 is excellent for backup power and off-grid applications. When paired with a suitable hybrid inverter, it can power essential loads during grid outages, ensuring energy independence.
