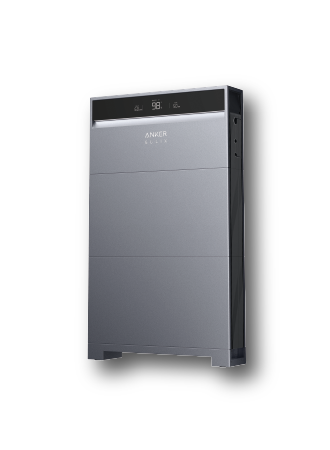

Anker Solix X1-H5K-T Hybrid System + 10kWh Storage
Couldn't load pickup availability
The Anker Solix X1-H5K-T 3PH Hybrid System with 10kWh storage redefines energy independence for modern households. This premium All-in-One system combines an efficient 5kW three-phase hybrid inverter with ultra-thin LFP battery modules in one seamless, aesthetic design that fits perfectly with a sustainable lifestyle.
- Extreme Performance: Operates at full power from -20°C to 50°C without efficiency loss (derating).
- Full Backup: Switches to emergency power in <10ms during outages (UPS level).
- Ultra-Slim Design: Only 150 mm deep, allowing for an elegant and space-saving wall-mounted installation.
- Module-Level Optimization: Each battery module works independently to ensure maximum yield over the entire lifespan.
Why choose the Anker Solix X1 (5kW + 10kWh)?
Thanks to extreme temperature resistance and a robust IP66-certified enclosure, the Solix X1 delivers maximum performance even in the harshest outdoor conditions. The system utilizes unique Energy Optimizer technology, eliminating the "barrel effect" where a single weaker module limits the performance of the rest. With the Full Black Start function, your home stays powered by solar energy even during a total grid failure.
| Property | Value |
|---|---|
| Brand & Model | Anker Solix X1-H5K-T (3-Phase) + 10kWh |
| MPN | X1-H5K-T / X1-B5 |
| Nominal AC Power | 5,000 W (5kW) |
| Battery Capacity | 10.0 kWh (2x 5kWh LFP Modules) |
| Dimensions (H x W x D) | 1240 x 670 x 150 mm (Ultra-slim) |
| Weight | 135.5 kg (Total system) |
| Protection Rating | IP66 & C5 Anti-corrosion |
| Warranty | 10-Year Manufacturer Warranty |
| Certifications | VDE 4105, EN 50549, CE, IEC 62109-1/-2 |
What is included in the package?
The Anker Solix X1 package is delivered complete for a professional installation:
- 1x Anker Solix X1-H5K-T Power Module (5kW Hybrid Inverter)
- 2x Anker Solix 5kWh Battery Modules (10kWh Total)
- 1x Smart Meter (3-Phase) & CT Clamps
- 1x WiFi/4G Dongle for real-time monitoring
- 1x Wall Bracket & Mounting Hardware
How about compatibility?
The Anker Solix X1 replaces your existing inverter and is universally compatible with all Tier-1 solar panels, such as Aiko, Jinko Solar, DMEGC, Trina Solar, and JaSolar. For battery capacity expansion, use only original X1-B5 modules.
Is this system expandable?
Yes. The Solix X1 is extremely modular. You can start with 10kWh and easily add modules later up to 30kWh per column. Up to 6 systems can be connected in parallel for a total capacity of 180kWh.
Is this battery suitable for dynamic energy contracts?
Absolutely. The intelligent EMS control makes it perfect for dynamic energy tariffs. You can charge cheaply when prices are low and discharge when prices peak, maximizing your return on investment.
Explore all configurations in the full Anker Solix Collection.
Activate your installer account
Verify your company within 12 hours and gain immediate access to professional net pricing, engineering support and live EU inventory.
