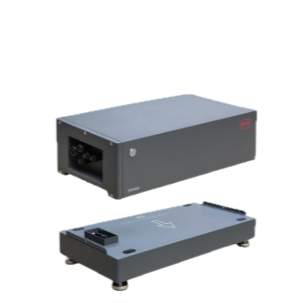

The BYD Battery-Box HVS/HVM Base & Cover is an essential accessory for the safe and stable installation of the BYD HVS and HVM battery modules. This set consists of the base plate, protective cover, **Battery Control Unit (BCU)** and wall bracket. The base and cover ensure a firm mounting and offer additional protection against environmental influences. Due to the modular design, this set is suitable for various configurations.

Unique features of the BYD Battery-Box HVS/HVM Base & Cover:

✔ Includes the BYD BCU Battery Control Unit for optimal battery control

✔ Solid base for stability of the battery modules

✔ Protective cover prevents dust and moisture penetration

✔ Includes wall bracket for additional mounting options

✔ Easy and quick installation

✔ Compatible with both HVS and HVM series

Construction of a BYD HVS/HVM battery tower:

The BYD-HVS-Base-Cover is essential in the construction of a **BYD high voltage battery system**. The minimum and maximum configurations per tower are as follows:

• HVS series: Minimum 2, maximum 4 to 5 modules (depending on the inverter)
• HVM series: Minimum 3 to 4 modules (depending on the inverter), maximum 8 modules per tower
• Per installation: Maximum 3 battery towers possible

Technical specifications:

• Compatibility: BYD HVS and HVM batteries

• Dimensions: 585 x 298 x 150 mm

• Weight: 15 kg

• Material: High quality plastic and metal

• Protection class: IP55
