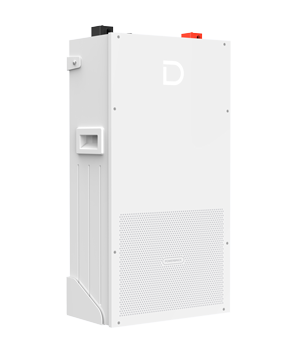

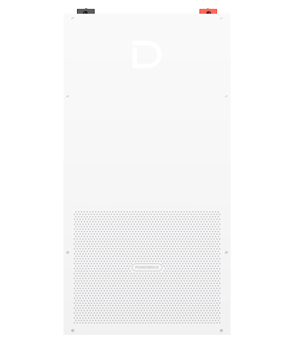

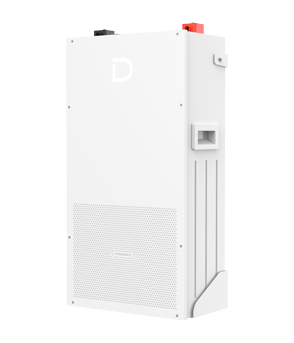

Dyness PowerBrick 14.3kWh

The Dyness PowerBrick is a compact, low-voltage home battery based on _LiFePO4 with a high module capacity of 14.336 kWh. Designed for residential energy storage, the system combines safety, reliability, and ease of installation. Its modular architecture allows for parallel connection of up to 50 modules for large-scale storage.

Key Benefits

• High capacity: 14,336 kWh per PowerBrick – fewer modules for the same total storage
• Fast power delivery: up to 200 A maximum discharge current for multiple simultaneous loads
• Scalable: up to 50 parallel units (14.3 kWh → 716.8 kWh)
• Smart management: integrated WiFi, remote monitoring and OTA updates
• Safe design: LFP cells, inclusive rapid response aerosol fire suppression system
• Easy installation: compact housing with mobile design

Technical specifications

• Nominal energy: 14,336 kWh
• Nominal voltage / capacity: 51.2 V / 280 Ah
• Recommended charge/discharge current: 140 A (0.5C)
• Max. charging current: 200 A
• Max. discharge current: 200 A
• Depth of Discharge (DoD): 95%
• Communication: CAN/RS485 + built-in Wi-Fi (APP & OTA)
• Parallel: max. 50 modules
• Protection class: IP20 (indoor installation)
• Dimensions (W × D × H): 435 × 233 × 857 mm (without wall bracket)
• Weight (net): 114 kg
• Charging temperature: 0 – 55 °C | Discharge temperature: −20 – 55 °C
• Certifications: UN38.3 / CE-EMC / IEC 62619 / GOST-R
• Warranty: 10 years
• Compatible inverters (selection): SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, SOFAR, SAJ, DEYE, etc.
