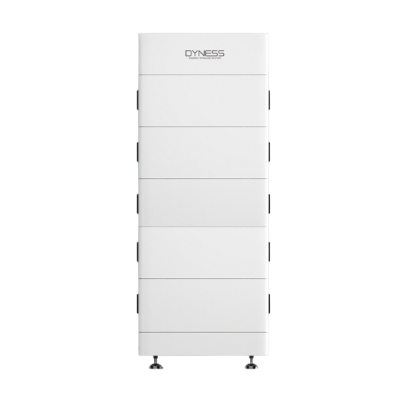

Dyness Tower T17 – 17.76 kWh HV Home Battery (LiFePO4)

€3.603,38 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Dyness Tower T17 is an enterprise-grade 17.76 kWh high-voltage home battery system (480V) built for high-consumption households and maximum energy autonomy. With an impressive 480V DC nominal voltage and five stackable modules, it delivers exceptional performance with minimal energy loss—ideal for peak demand, high self-consumption and resilient backup integration.

Its robust IP54 enclosure provides installation flexibility for indoor use and protected outdoor locations. The large usable capacity helps you ride through grid outages and peak-load moments with confidence, while keeping your system efficient and future-ready.

  • High capacity: 17.76 kWh for heavy users.
  • Superior 480V HV: Higher efficiency, lower losses.
  • IP54 protection: Indoor & protected outdoor.
  • Cable-free stacking: Clean, fast installation.

High-end energy storage built for the future

  • Maximum efficiency: 480V high-voltage technology minimises resistive losses for optimal overall system efficiency.
  • Plug & play design: The innovative stackable concept eliminates cables between modules for a safer, cleaner and faster installation.
  • Scalable power: The T17 includes 5 modules and can be expanded (up to T21) to reach a total of 21.31 kWh.
  • Proven safety: Premium LiFePO4 cells with intelligent BMS monitoring for safety, temperature and long service life.
Installation notice: High-voltage system (480V DC). Installation must be performed by a certified professional in accordance with local regulations. For inverter selection, ensure support for the 420–547V operating range.

Technical Specifications

SpecificationValue
Brand & ModelDyness Tower T17
Nominal capacity17.76 kWh
ChemistryLiFePO4 (Lithium Iron Phosphate)
Nominal voltage480V DC
Configuration5x battery module + 1x BDU
Voltage range420V – 547V
Protection ratingIP54
Dimensions504 × 380 × 1300 mm
Weight228 kg
CertificationsCE, UN38.3, IEC62619
Datasheet Download Manual Download
What is included in the package?
According to the official packing list, T17 includes: 1x BDU box (Item A) with 1x Tower BDU, 1x inverter communication cable (2m), 1x positive cable (Red, 2m), 1x negative cable (Black, 2m), DC connectors (+/-), 1x BDU communication connector, screws (M6*14, M4*10), user manual & warranty card. Plus 5x battery boxes (Item B): each contains 1x HV9637 battery module (96V/37Ah) and mounting screws—total 5 battery modules.
Which inverters are compatible with this system?
Tower T17 is designed for high-voltage systems and works with hybrid inverters from brands such as GoodWe, Solis, SAJ and Ingeteam. Always verify the official compatibility list and ensure your inverter supports the 420–547V voltage range.
How can I expand capacity in the future?
T17 includes 5 modules. You can add one additional HV9637 module later to reach the maximum configuration T21 (21.31 kWh). Expansion is done by stacking.
Is the system safe for indoor installation?
Yes. Dyness Tower T17 combines thermally stable LiFePO4 chemistry with an IP54 enclosure, enabling safe installation in technical rooms, garages or protected outdoor areas when professionally installed.
