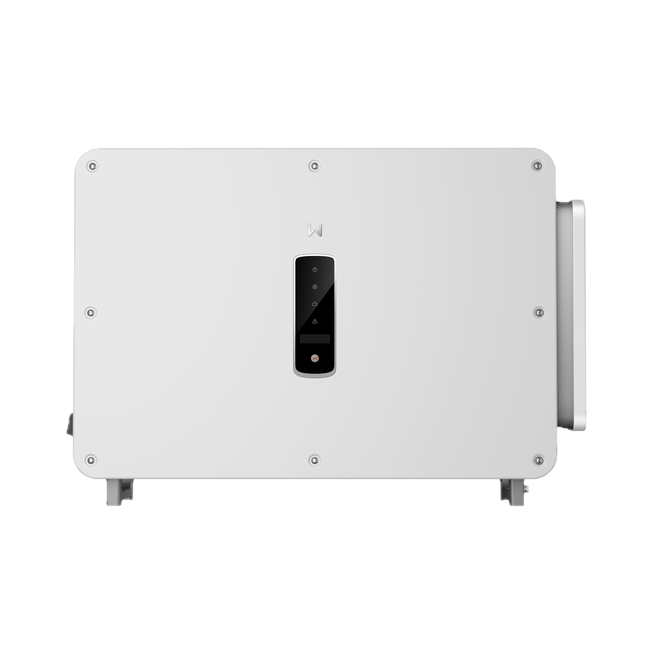

GoodWe GW125K-GT

The GoodWe GW125K-GT is a three-phase inverter that provides exceptional energy harvesting for commercial and industrial PV systems. With 10 MPPTs and a maximum efficiency of 99.0%, this inverter delivers excellent performance and high reliability.

Key Features:

✔ Maximum efficiency of 99.0%

✔ 3-phase inverter with 10 MPPTs for optimized performance

✔ High DC input power with up to 150% oversizing

✔ RS485 communication for easy monitoring

✔ Type II AC/DC surge protection

Technical specifications:

• Nominal output power: 125 kW

• Maximum AC power: 137.5 kW

• Maximum output current: 199.4A

• Maximum efficiency: 99.0%

• MPPT: 10 MPPTs

• Communication: RS485

• Protection class: IP66

• Weight: 88 kg

• Dimensions: 930 × 650 × 300 mm

Datasheet download
