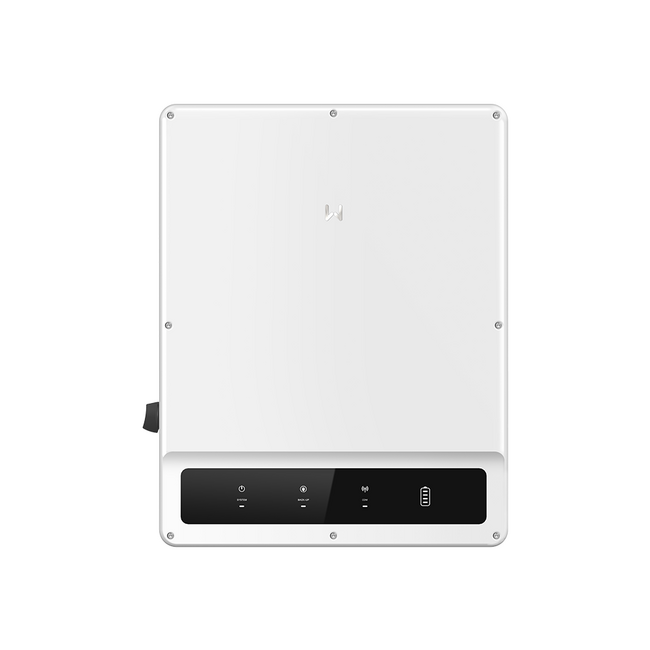

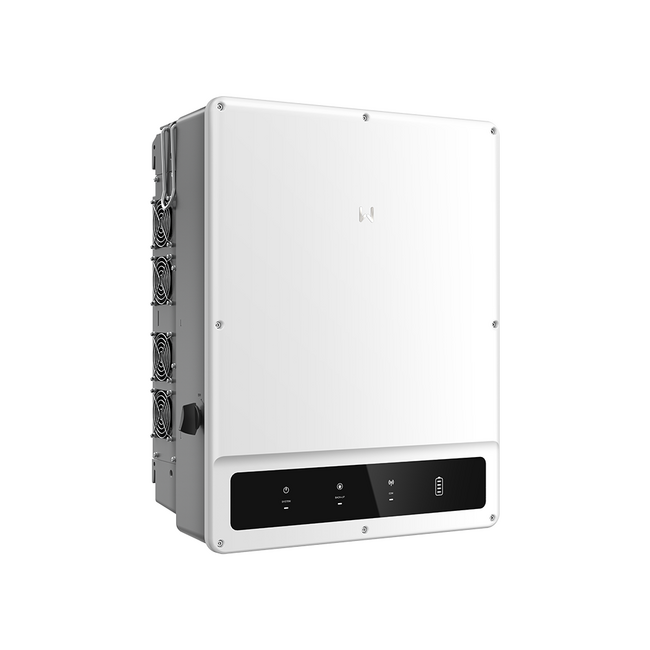

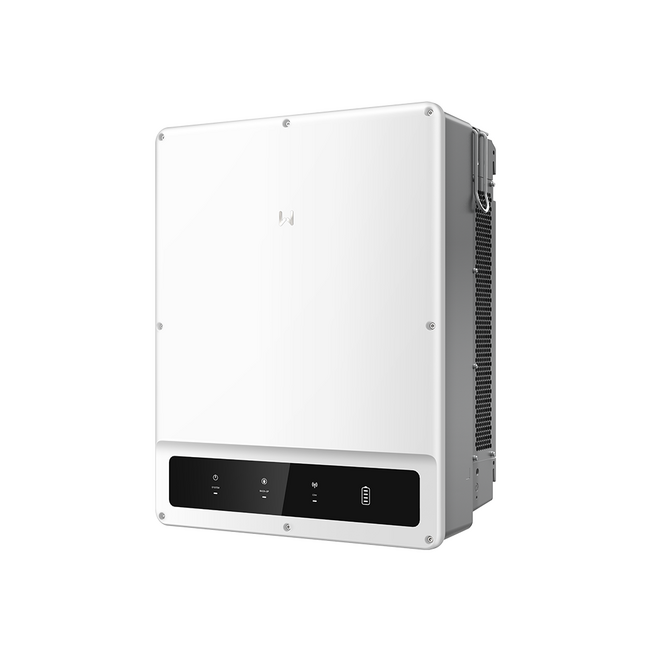

GoodWe GW50K‑ET‑10 – 3‑Phase Hybrid Inverter
Couldn't load pickup availability
The GoodWe GW50K‑ET‑10 is a three‑phase hybrid inverter with 50 kW output, purpose‑built for commercial and industrial (C&I) energy storage solutions. With four independent MPPTs, a maximum PV input of 75 kW and a wide battery voltage range of 200–800 V, this inverter offers exceptional flexibility and scalability. Thanks to its IP66 protection rating and smart fan cooling, it is suitable for both indoor and outdoor installation. Included in the delivery: smart meter with accessories, battery and PV connectors, and all required cabling.
- Four independent MPPTs: up to 75 kW PV input (165–850 V) with max. 42/32/42/32 A per MPPT – ideal for large C&I roof installations.
- Powerful back‑up with STS Box: 50 kVA emergency power (55 kVA continuous, 75 kVA for 10 s) with UPS‑level switching <10 ms.
- High scalability: up to 4 inverters in parallel via Ezlink3000 or up to 10 via SEC3000C; supports on‑grid and off‑grid expansion.
- Intelligent operating modes: self‑consumption, peak shaving, time‑of‑use (TOU), grid support and off‑grid mode.
- IP66 – indoor and outdoor: max. efficiency 98.1 %; certified IEC62109‑1&2, VDE‑AR‑N 4105, EN61000; includes smart meter + accessories.
Why choose the GoodWe GW50K‑ET‑10?
The GW50K‑ET‑10 is designed for businesses and installers seeking a robust, scalable hybrid solution with maximum PV capacity. The four independent MPPT inputs (165–850 V) with 42, 32, 42 and 32 A maximum current respectively offer maximum flexibility for large PV installations across multiple roof orientations. Combined with the STS Box (Static Transfer Switch), the system delivers UPS‑level backup with a switching time of less than 10 ms. Via Wi‑Fi, LAN and optional 4G and the SEMS portal, you always have full insight into production, consumption and battery status. The integrated AFCI protection (IEC63027), insulation resistance detection and Type II DC/AC surge protection guarantee the highest safety standards. Paired with the GoodWe Lynx C battery series, the GW50K‑ET‑10 forms a complete C&I energy solution.
| Specification | Value |
|---|---|
| Model | GW50K‑ET‑10 |
| Nominal AC output power | 50,000 W (3‑phase) |
| Max. PV input power | 75,000 W |
| Number of MPPTs | 4 (independent) |
| MPPT voltage range | 165–850 V |
| Max. PV current per MPPT | 42 A / 32 A / 42 A / 32 A |
| Max. PV input voltage | 1000 V DC |
| Battery voltage range | 200–800 V (Li‑ion HV) |
| Max. charge / discharge current | 100 A / 100 A |
| Grid voltage (output) | 3‑phase 380/400 V AC, 50 Hz |
| Max. output current | 75.8 A per phase |
| Back‑up power (with STS Box) | 50 kVA nom. / 55 kVA cont. / 75 kVA (10 s) |
| UPS switching time (with STS Box) | <10 ms |
| Max. efficiency | 98.1 % |
| European efficiency | 97.5 % |
| Dimensions | 520 × 660 × 260 mm |
| Weight | 62 kg |
| Protection class | IP66 (indoor and outdoor) |
| Cooling | Smart fan cooling |
| Communication | CAN, RS485, Wi‑Fi, LAN (optional: 4G) |
| Operating temperature | ‑35 °C to +60 °C |
| Max. altitude | 4000 m |
| Certifications | IEC62109‑1&2, EN61000, VDE‑AR‑N 4105 |
| Included in delivery | Smart meter + accessories, PV & battery connectors, cabling |
What is included in the delivery?
| Item | Quantity |
|---|---|
| GoodWe GW50K‑ET‑10 inverter | 1 × |
| Wall‑mount bracket | 1 × |
| Screws and wall plugs (assorted) | 1 set |
| DC connectors (PV + Battery) | 1 set |
| Connector blocks (assorted) | 1 set |
| AC connector | 2 × |
| Battery communication cable | 1 × |
| Smart meter + accessories | 1 set |
| Quick‑start guide / User manual | 1 × |
For full details, refer to the user manual.
Which batteries are compatible with the GW50K‑ET‑10?
The GW50K‑ET‑10 is compatible with high‑voltage batteries in the range of 200–800 V, including:
- GoodWe Lynx C series (commercial HV battery)
- GoodWe Lynx Indoor / Outdoor / AC series
- Other GoodWe‑approved HV battery systems
For the full and up‑to‑date compatibility list, visit goodwe.com.
What are the installation requirements?
The GW50K‑ET‑10 carries an IP66 protection rating and is suitable for both indoor and outdoor installation. Key requirements:
- Maintain a minimum clearance of 300 mm around the unit for ventilation.
- Operating temperature range: –35 °C to +60 °C; maximum installation altitude: 4 000 m.
- Installation must be carried out by a certified electrician in accordance with local grid regulations.
- Battery communication via CAN or RS485; ensure correct termination (120 Ω) for parallel RS485 configurations.
- Internet connectivity via Wi‑Fi or LAN is required for SEMS cloud monitoring.
- A separate STS Box is required to enable the backup / UPS function.
- Use only IEC 61730‑certified PV modules.
- Proper grounding of the inverter chassis is mandatory.
