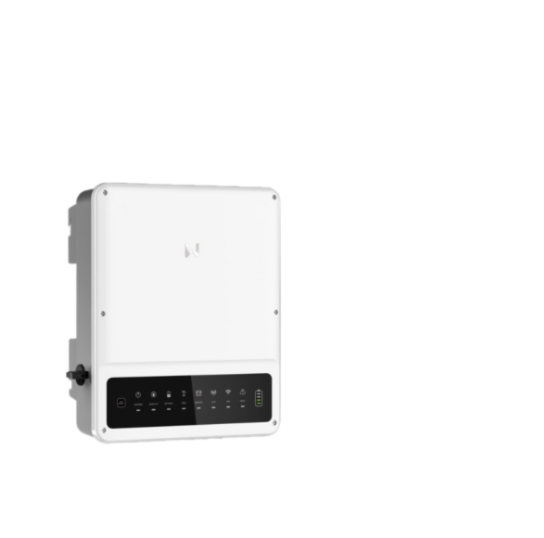

GW6000N-EH-20 hybrid

The GoodWe GW6000N-EH is the most powerful variant in the EH PLUS+ series, designed for residential applications with high voltage batteries. This hybrid inverter supports two MPPTs and provides a backup output of up to 7200VA for 60 seconds.

Key Features:

✔ Compatible with HV Li-Ion batteries (85-460V)

✔ Up to 9000W DC input

✔ UPS switching (<10ms)

✔ RS485 & CAN for battery communication

✔ IP65 – Suitable for indoor and outdoor use

Technical specifications:

• Rated power: 6000 W

• Max. battery discharge current: 25 A

• MPPT: 2 / max. 16 A per MPPT

• Efficiency: 97.6%

• Weight: 17 kg

• Dimensions: 354 × 433 × 147 mm

• Backup: 7200 VA @ 60s

Datasheet download
