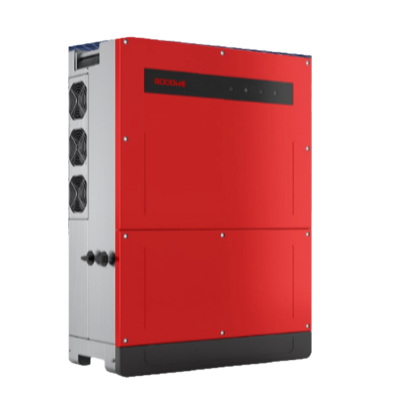

GoodWe GW80K-MT-RS485

The GoodWe GW80K-MT-RS485 is a powerful inverter ideal for large commercial and industrial solar installations. Combining advanced performance with a robust design, this model is able to efficiently handle complex roof configurations and variable lighting conditions.

With **maximum efficiency of 98.8%** and support for **four independent MPPTs**, the GoodWe GW80K-MT-RS485 ensures optimal energy harvest. This model is equipped with **integrated arc fault detection**, further enhancing safety. Thanks to **DC input oversizing ratio of 30%** and **AC output overload capacity of 15%**, this inverter can handle additional energy without performance degradation.

An additional benefit of the GW80K-MT-RS485 is the **optional PLC communication**, which enables stable data transmission even in remote locations. This makes remote monitoring and management more efficient than ever.

Key Features:

✔ High efficiency up to **98.8%** for maximum energy yield

✔ **Four MPPTs and sixteen DC inputs** for system design flexibility

✔ **RS485 and PLC communication** for efficient monitoring and data transfer

✔ **LCD display** for real-time information and settings

✔ **Intelligent ventilation** for effective temperature control

Technical specifications:

• Maximum DC power: 120000W

• Maximum output current: 133A

• Maximum efficiency: 98.8%

• Phase: 3-phase

• MPPT: 4 MPPTs, 16 DC inputs

• Communication: RS485 / PLC

• Display: LCD interface

• Cooling: Active fan control

• Dimensions: 586 x 788 x 267 mm

Datasheet download
