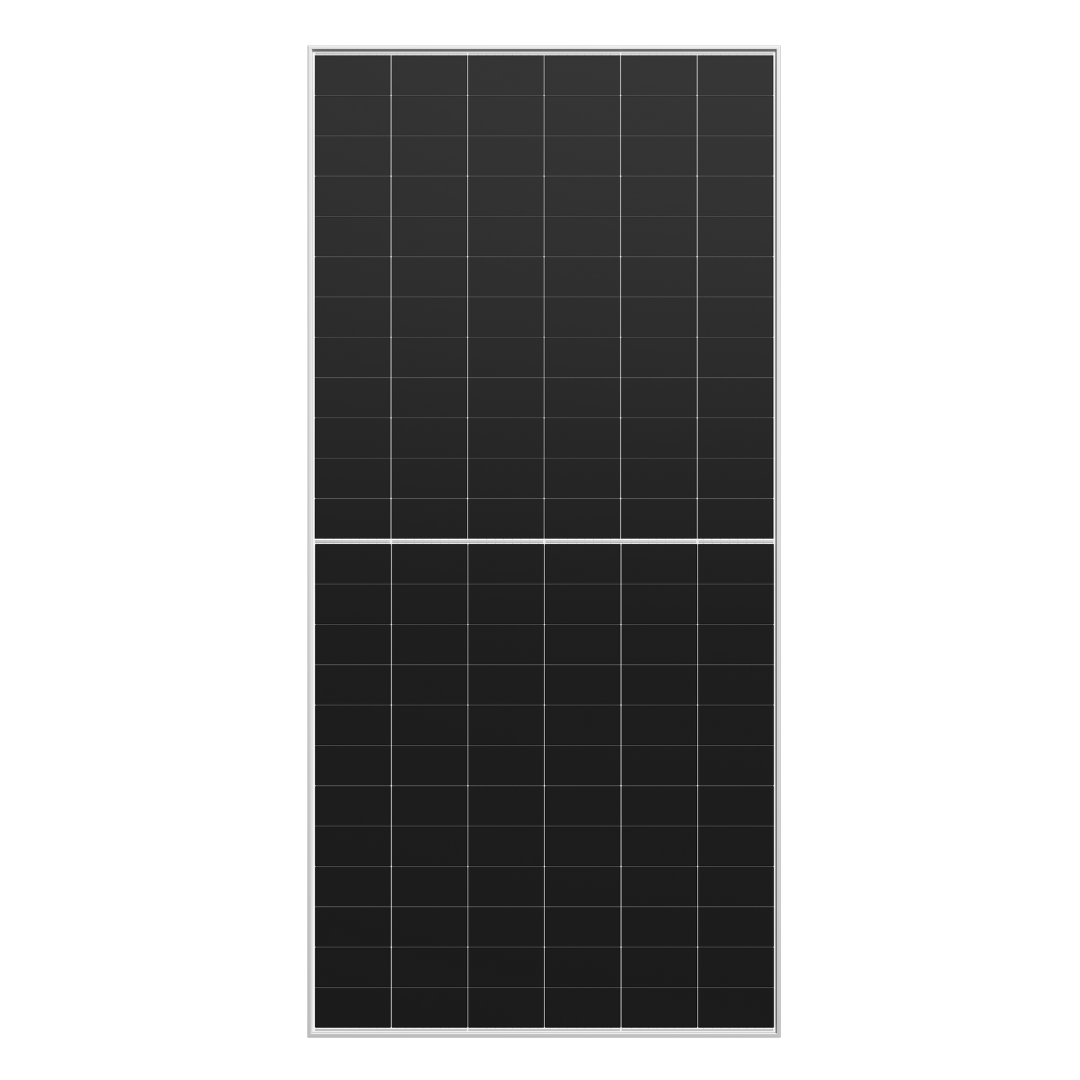

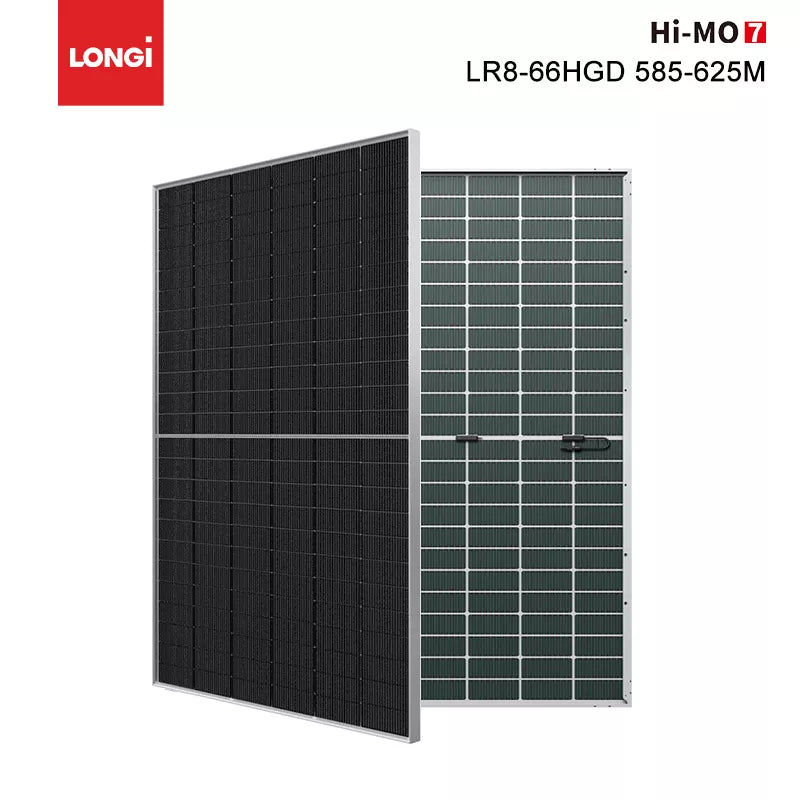

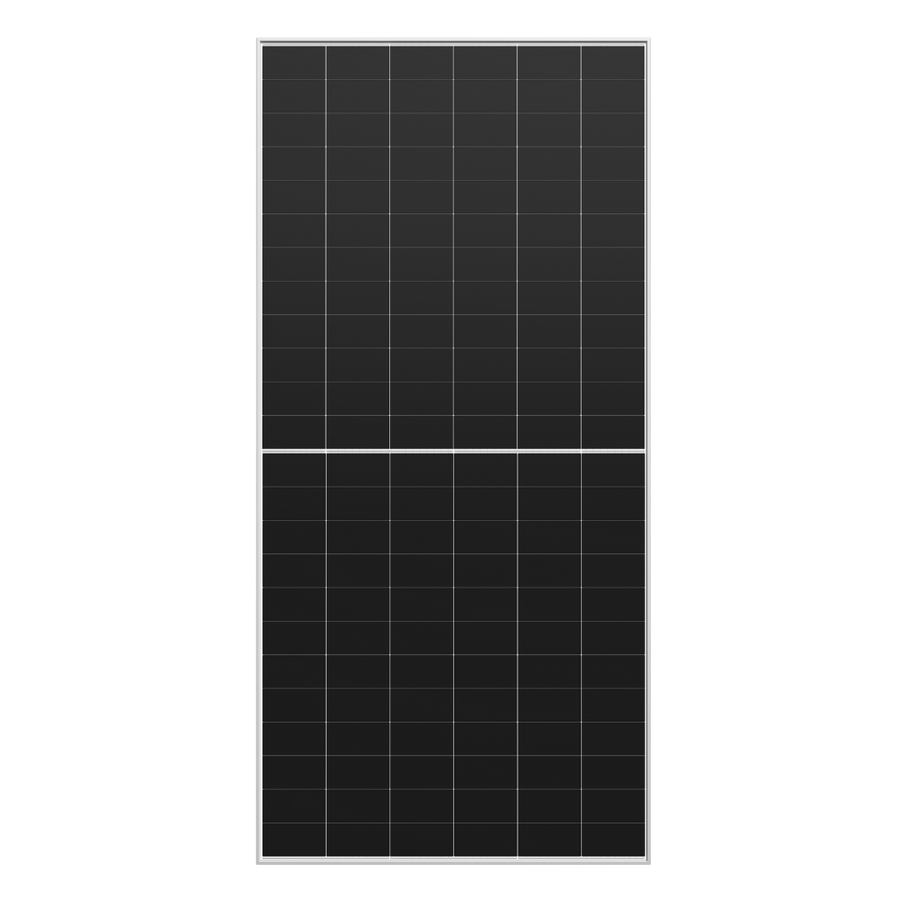

Longi Hi-MO 7 LR8-66HGD-620M Bi-facial Dual glass Silver Frame

€114,95 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Longi LR8-66HGD-620M Dual glass Silver Frame is a powerful bifacial solar panel for larger residential, commercial and project-based PV installations. Thanks to its 620W output and 22.5% efficiency, it helps reduce system cost per watt while delivering strong energy yield per panel. The robust dual-glass construction and silver frame also provide long service life and reliable performance in demanding environments.

  • 620W high output: ideal for efficient string design and fewer panels per project.
  • 22.5% module efficiency: strong yield per m² for rooftop and ground-mounted systems.
  • Bifacial dual-glass design: additional rear-side gain and improved long-term durability.
  • 12 + 30 year warranty: 12-year product warranty and 30-year linear power warranty from LONGi.

Why choose the Longi LR8-66HGD-620M?

This module is designed for installations where high output, strong mechanical resistance and long service life are essential. It features a maximum system voltage of 1500V DC, a maximum series fuse rating of 30A, a 2.0 + 2.0 mm glass structure and a mechanical load rating of 5400 Pa on the front side and 2400 Pa on the rear side. Its factory-fitted MC4 connectors and 4 mm² cables of approximately 1200 mm make it well suited for professional PV projects where reliability and ease of installation matter.

Please note: this panel weighs 34.6 kg and must be installed by qualified professionals. Mounting rails, clamps, bolts, grounding hardware and string cabling are not included. Use only suitable PV cable of at least 4 mm² (12 AWG), ensure correct grounding and never mix different connector brands or connector types. LONGi also recommends keeping at least 10 cm clearance from the roof or wall for ventilation and fire safety.
Specification Value
Brand & Model LONGi LR8-66HGD-620M
Capacity / Power 620 W
Efficiency 22.5%
Module type Bifacial dual-glass solar panel
Voc / Isc 45.45 V / 17.25 A
Vmpp / Impp 38.18 V / 16.24 A
Maximum system voltage 1500 V DC
Maximum series fuse rating 30 A
Glass / Frame 2.0 + 2.0 mm dual glass / silver frame, anodized aluminium
Connector / Cable MC4 / 4 mm², approx. 1200 mm
Dimensions 2384 × 1303 × 33 mm
Weight 34.6 kg
Mechanical load 5400 Pa front / 2400 Pa rear
Operating temperature -40 °C to +85 °C
Warranty 12-year product warranty / 30-year linear power warranty
Download Datasheet Download Manual
What is included in the package of the Longi LR8-66HGD-620M?
Component Description
LONGi LR8-66HGD-620M module 1× solar panel with integrated junction box
PV cables and connectors Factory-fitted 4 mm² cables of approx. 1200 mm with MC4 connectors

Not included are mounting rails, clamps, bolts, grounding hardware, string cabling, inverter and other installation materials.

What systems is this panel compatible with?

This panel is suitable for PV systems designed for modules with Voc 45.45 V, Isc 17.25 A and a maximum system voltage of 1500V DC. Always verify string design, input current limits, voltage limits and connector standard of the selected inverter.

What installation requirements are important?

LONGi states that installation must only be carried out by qualified installers. Use UV-resistant PV cable of at least 4 mm², ground the frame correctly, keep at least 10 cm clearance from roof or wall surfaces and avoid installation in strong wind, wet conditions or with contaminated connectors. Connectors must never be disconnected under load.
