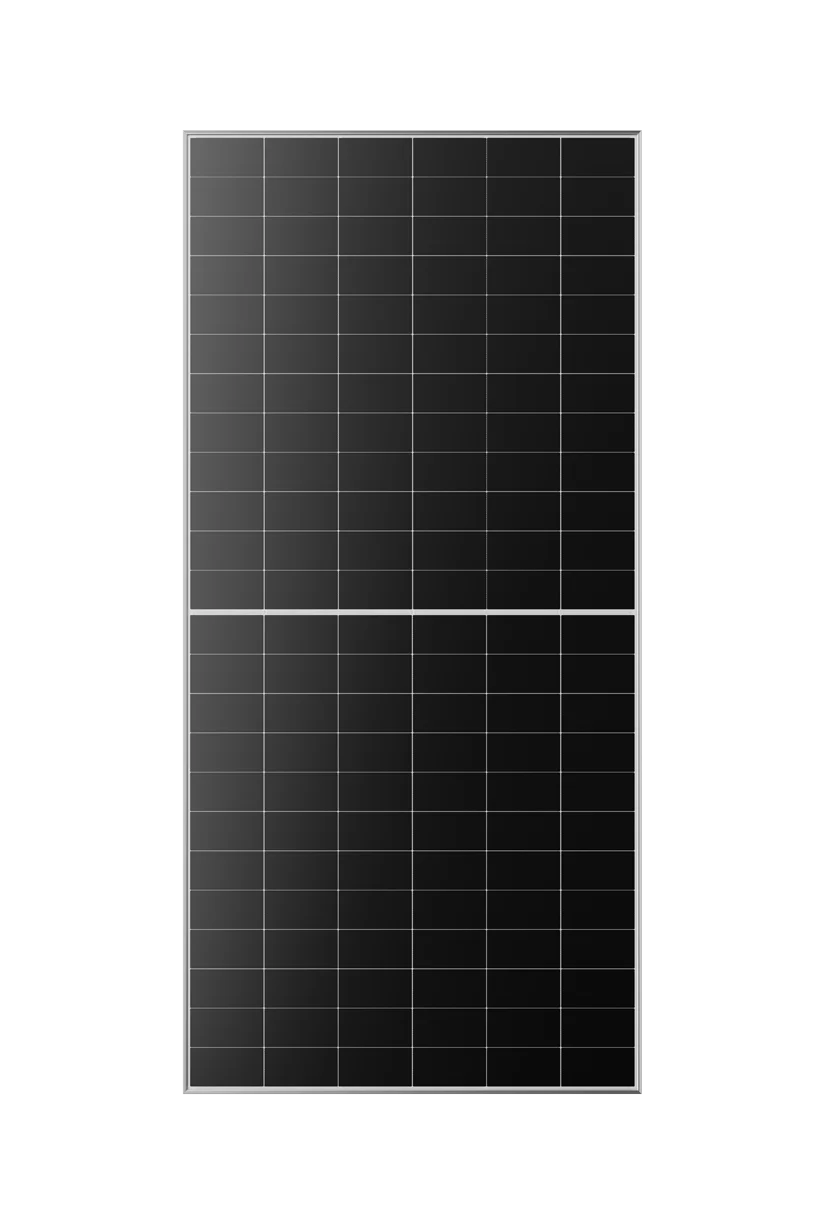

• Longi_Hi-MOX10_Explorer_LR7-72HVH-635M

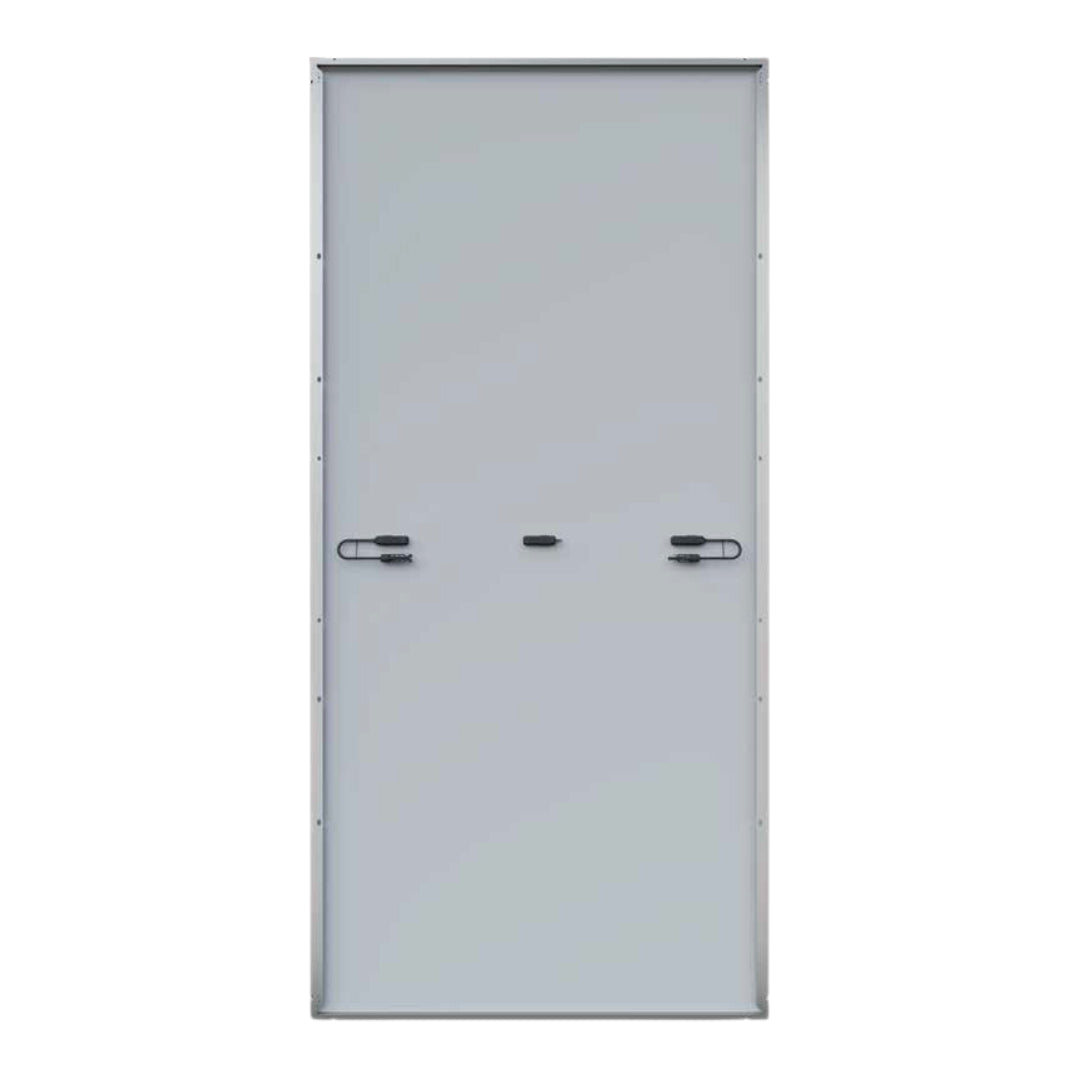

  • Longi_Hi-MOX10_Explorer_LR7-72HVH-635M_back

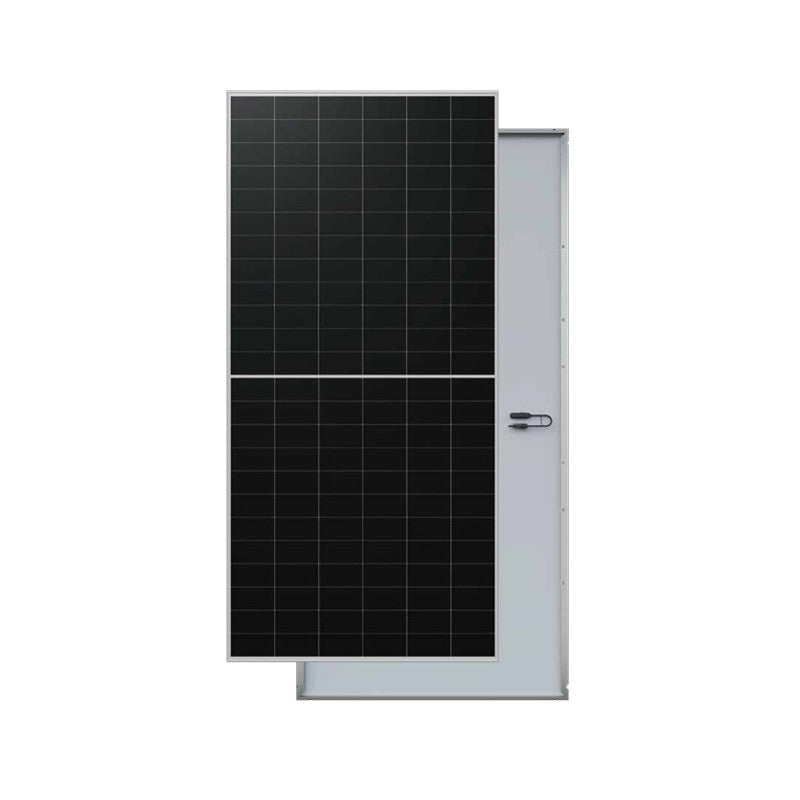

  • Longi_Hi-MO_X10_Explorer_LR7-72HVH-635M_Fr_Back
1 3

Longi Hi-MO X10 Explorer LR7-72HVH-655M silver frame

€139,15 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Longi Hi-MO X10 Explorer LR7-72HVH-655M is a premium N-type solar module delivering a 655W power output. Utilizing advanced HPBC 2.0 cell technology and TaiRay wafers, it achieves a module efficiency of 24.2%. The silver frame version with 1200mm long cables is engineered for high-scale PV installations, focusing on maximum energy generation and elite installation flexibility.

  • 655W Pmax: High power density designed to maximize energy yield per square meter of installation space.
  • 24.2% Module Efficiency: Leading cell conversion through HPBC 2.0 for superior long-term LCOE performance.
  • 1200mm Cable Length: Features extended output cabling for seamless landscape mounting without the need for extensions.
  • 30-Year Warranty: Industry-leading linear power warranty ensuring 87.4% output after 30 years of operation.

Engineering Excellence: Explorer LR7-72HVH-655M

Longi’s Explorer series defines the benchmark for professional PV systems. With a temperature coefficient of -0.260%/°C, this module maintains peak performance even in warm climates. The robust mechanical design supports a front static load of 5400Pa, ensuring structural reliability under extreme environmental conditions. The integration of N-type technology and TaiRay wafers virtually eliminates LID, providing stable and predictable energy production throughout its lifespan. Explore more professional solutions in the Longi Modules collection for elite energy architectures.

Note: Installation must be performed by qualified personnel. Use UV-resistant 4mm² cabling and maintain a 10 cm ventilation gap from the roof. Do not block the frame drainage holes during mounting.
Property Value
Brand & Model Longi LR7-72HVH-655M
Capacity / Power 655W
Module Efficiency 24.2%
Voc / Isc (STC) 54.0V / 15.37A
Vmpp / Impp (STC) 44.66V / 14.67A
Dimensions 2382 x 1134 x 30 mm
Weight 28.5 kg
Warranty 15-year material / 30-year power
Download Datasheet Download Manual
What is included with the Longi LR7-72HVH-655M?
The scope of delivery includes the following items:
- 1x Longi Hi-MO X10 Explorer LR7-72HVH-655M module
- 2x Integrated 1200mm output cables (4mm²)
- 2x MC4-EVO2 compatible connectors
- 1x Technical and installation documentation
Is this panel compatible with 1500V systems?
Yes, this module is certified for a maximum system voltage of DC1500V (IEC). This allows for longer strings in commercial and industrial arrays, significantly reducing overall system losses and installation complexity.
How does it perform for Time-of-Use strategies?
With superior low-irradiance response and high overall efficiency, this panel delivers consistent energy during morning and evening hours. This maximizes self-consumption and improves financial returns in Time-of-Use billing scenarios.

View more products in the Longi Modules collection.
