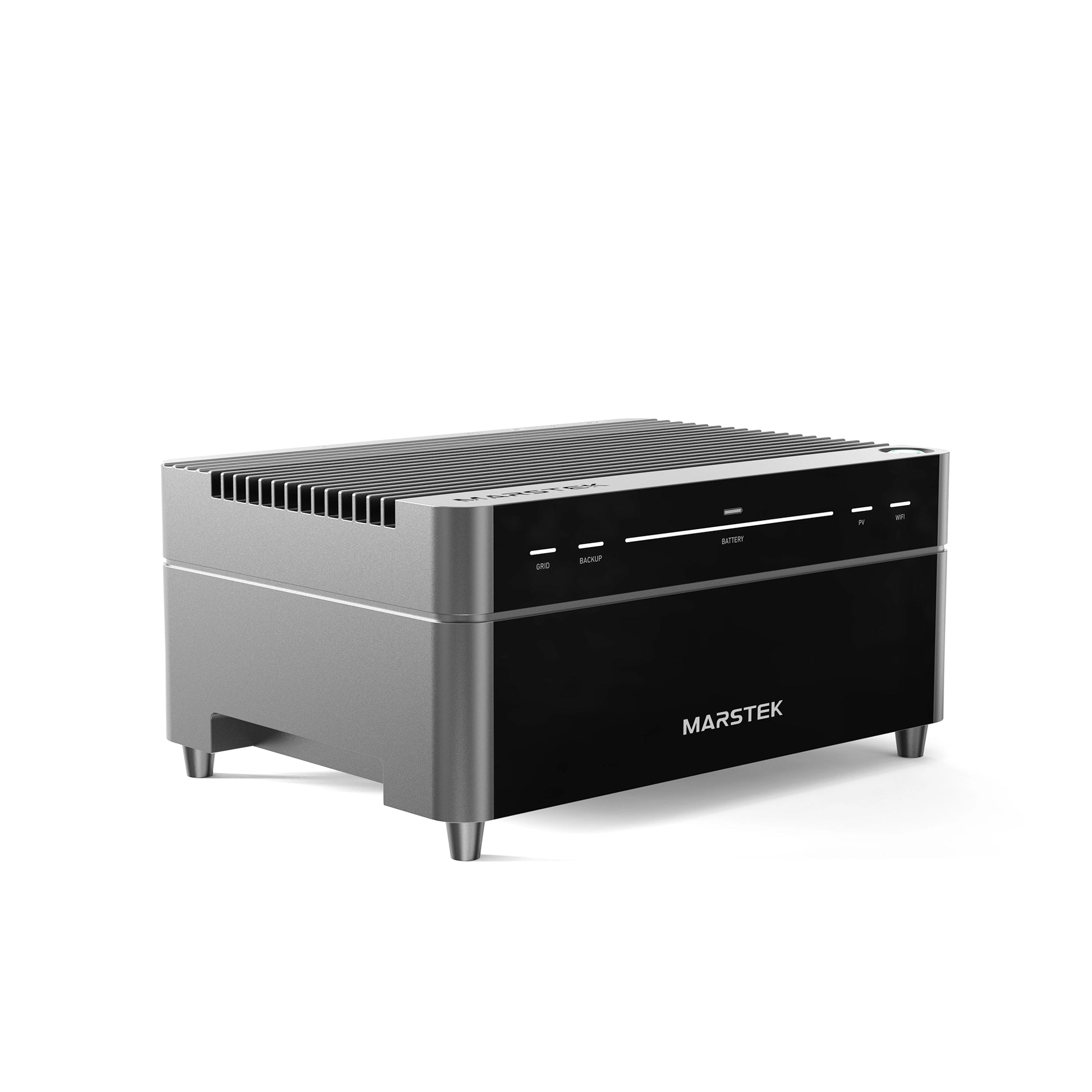

MARSTEK VENUS-A 2.12kWh AC Home Battery, 1.2kW Backup

€670,34 incl. VAT
Shipping calculated at checkout.

The Marstek VENUS A Balcony Energy Storage System is an AC-coupled and flexible home battery system with an integrated inverter — perfect for expanding existing PV installations in the Netherlands , Germany , and the rest of the EU . With 4 MPPTs for up to 2.4 kWp solar panels, 1.2 kW of bidirectional AC power , and 1.2 kW of emergency power (back-up) , the VENUS A makes your home energy autonomous and ready for dynamic tariffs and zero-injection control. Its plug-and-play architecture and quick installation make it the ideal solution for balcony power plants and modular energy storage .

Why choose the Marstek VENUS A home battery?

  • Universal Compatibility (Plug & Play): Works with any existing PV system via AC coupling, without replacing your current inverter.
  • Integrated solar power: Built-in inverter with 4 independent MPPT trackers for up to 2.4 kWp of solar panels.
  • Modularly expandable: Start with 2.12 kWh and expand to 12.72 kWh with up to 5 additional units.
  • Fast emergency power: EPS function switches over within 15ms in the event of a mains failure to protect critical equipment.
  • Smart energy management: Supports zero injection via smart meters (such as Shelly) and AI-driven Time-of-Use optimization.
  • Safe and durable: LiFePO₄ cells (> 6000 cycles, 15-year lifespan) with IP65 protection — suitable for indoor and outdoor use.
Important: A smart meter is required for proper operation. For 1–3 units per phase, one smart meter is sufficient. Select the correct model:
  • Without smart meter – only for replacement or expansion where a compatible meter is already present.
  • With CT002 – for meters without a P1 port, for smart meters with software older than SMR5.0, and for Belgium, compliant with Synergrid approval. Works with current coils. View technical information
  • With CT003 – suitable for smart meters with P1 port (SMR5.0 or higher). View technical information

What are the specifications of the Marstek VENUS A?

  • Model: MARSTEK VENUS A
  • Battery capacity (per unit): 2.12 kWh
  • Maximum storage capacity: 12.72 kWh (6 modules total)
  • Cell type & lifespan: LiFePO₄ (LFP), DoD 90 %, > 6000 cycles (@ 25 °C)
  • Max. PV input: 2.4 kW (4 × MPPT)
  • Nominal AC power: 1.2 kVA bidirectional
  • Emergency Power Supply (EPS): 1.2 kVA nominal, 1.44 kVA peak (60 s)
  • Switching time: 15 ms (EPS)
  • Protection: IP65, natural cooling, −20 °C to 60 °C
  • Communication: Bluetooth, Wi-Fi, Ethernet
  • Dimensions (L×W×H) & Weight: 400 × 285 × 168 mm, 24 kg

📄 Download datasheet

Register as an installer to view your net prices. Already have an account? Log in here.

View full details
MARSTEK VENUS-A 2.12kWh AC Home Battery, 1.2kW Backup – Installation & Product Video
General installation or product information is shown.
