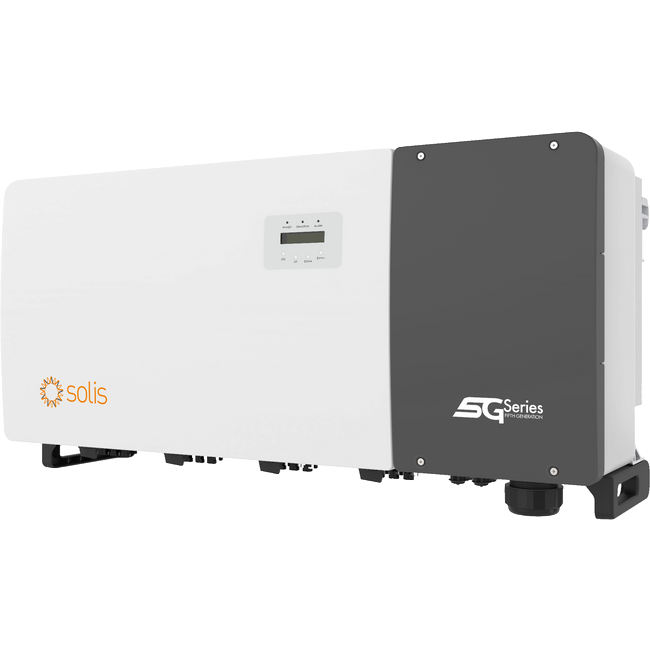

Solis-100K-5G-PRO 100kW 3-phase Commercial String Inverter - 5-year Warranty

The Solis-100K-5G-PRO is a three-phase grid-tied inverter, specifically designed for large-scale commercial solar projects. With 8 MPPTs and a maximum efficiency of 98.5%, this inverter delivers exceptional performance even under challenging conditions.

Key Features:

✔ 8 independent MPPTs supporting up to 16 strings

✔ Maximum efficiency of 98.5%

✔ DC/AC ratio up to 150%

✔ Compatible with bifacial solar panels

✔ AFCI protection and optional PID recovery

✔ IP66 protection and intelligent cooling with fan

Technical specifications:

• Nominal power: 100,000 W

• Max. output current: 167.1 A

• MPPTs: 8

• Max. input voltage: 1100 V

• Dimensions: 1183 x 585 x 363 mm (without AC switch)

• Weight: 98 kg

• Communication: RS485, optional Wi-Fi / GPRS / PLC

Datasheet download
