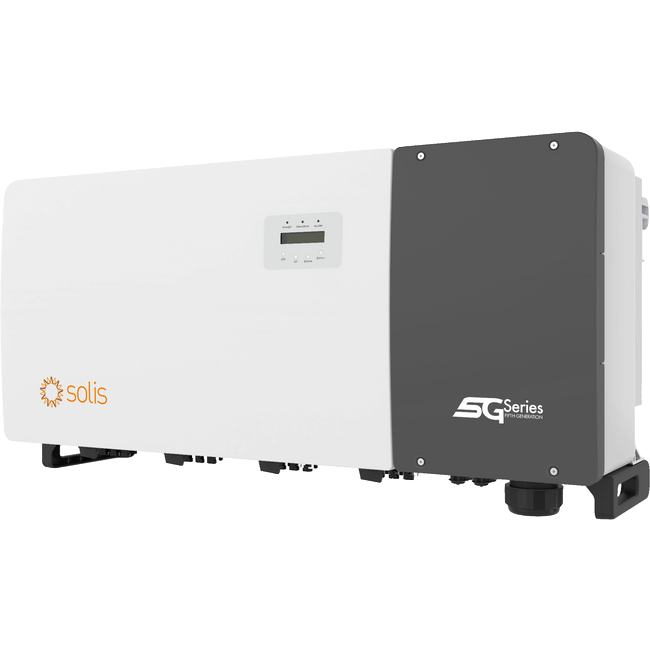

Solis-110K-5G-PRO 110kW 3-phase Commercial String Inverter - 5-year Warranty

The Solis-110K-5G-PRO is an advanced three-phase inverter for commercial installations, designed for high yield and optimum flexibility. This inverter features 8 MPPTs, supports up to 16 strings and has a maximum AC power of 121 kW.

Key Features:

✔ Maximum efficiency of 98.5%

✔ Max. output current up to 183.8 A

✔ 8 MPPTs with wide voltage ranges (160–1000 V)

✔ Supports bifacial modules and PID recovery (optional)

✔ IP66 certified, suitable for outdoor use

✔ AFCI protection and intelligent I/V curve analysis

Technical specifications:

• Nominal power: 110,000 W

• Max. output current: 183.8 A

• MPPTs: 8

• Max. input voltage: 1100 V

• Dimensions: 1183 x 585 x 363 mm (without AC switch)

• Weight: 98 kg

• Communication: RS485, optional Wi-Fi / GPRS / PLC

Datasheet download
