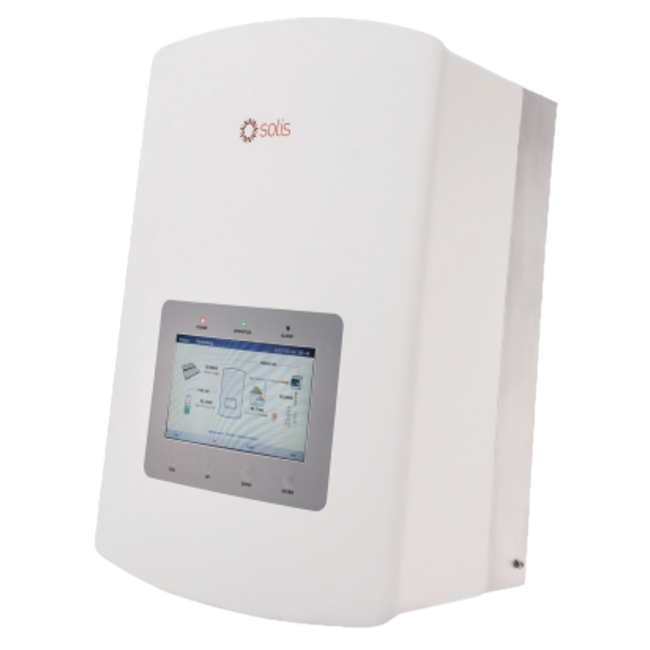

Solis S5-EH1P5K-L-BE 1-phase Hybrid Inverter with Backup (BE)

Solis S5-EH1P5K-L-BE is a 1-phase hybrid inverter, specially configured for the Belgian market. This inverter supports low voltage batteries (42–58V) and offers backup functionality, smart energy management options and seamless integration with home battery systems.

Key Features:

✔ Suitable for low voltage batteries

✔ Backup output: 5.0 kW (7.0 kVA peak)

✔ Battery voltage: 42–58 V / Max. current: 100 A

✔ Supports CAN communication

✔ Smart EMS system for optimized energy management

✔ Fast backup switching <20 ms

✔ Fanless design for long lifespan

✔ AFCI arc flash protection

✔ Supports peak shaving and consumption optimization

Technical specifications:

• Max. PV input: 8 kW

• Nominal output power: 5 kW

• Max. mains output current: 25 A

• Nominal mains voltage: 230V / 50 Hz

• Dimensions: 333 × 505 × 249 mm

• Weight: 18.3 kg

• Protection degree: IP65

• Efficiency: >97.1% (EU: >96.5%)
