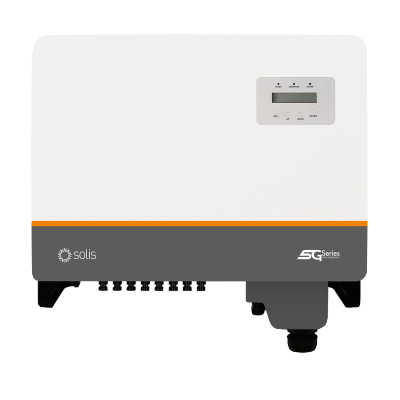

Solis S5-GC36K-DC 36kW 3-phase Commercial Inverter - 5-Year Warranty

The Solis S5-GC36K-DC is a robust 3-phase inverter, equipped with four MPPTs for optimal energy yield in medium to large solar energy systems.

Key Features:

✔ Maximum efficiency of 98.8%

✔ 4 MPPTs and 8 string inputs

✔ Type II surge protection (DC & AC)

✔ Full monitoring via RS485 and optional Wi-Fi/GPRS

Technical specifications:

• Rated AC power: 36,000 W

• Recommended PV power: 54 kW

• Max. input voltage: 1100 V

• MPPT range: 200–1000 V

• Weight: 42.1 kg

• Dimensions: 647 × 629 × 252 mm

Datasheet download
