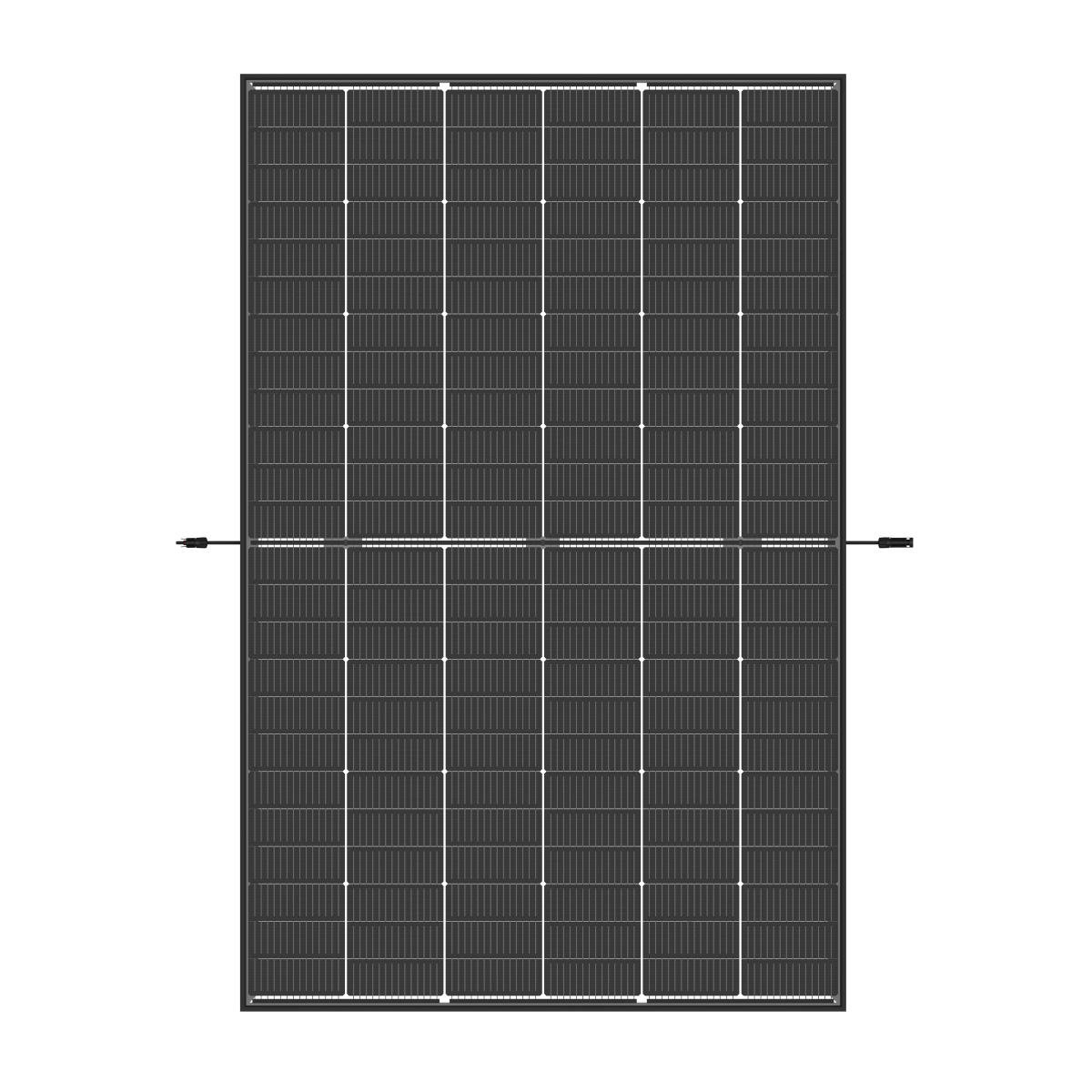

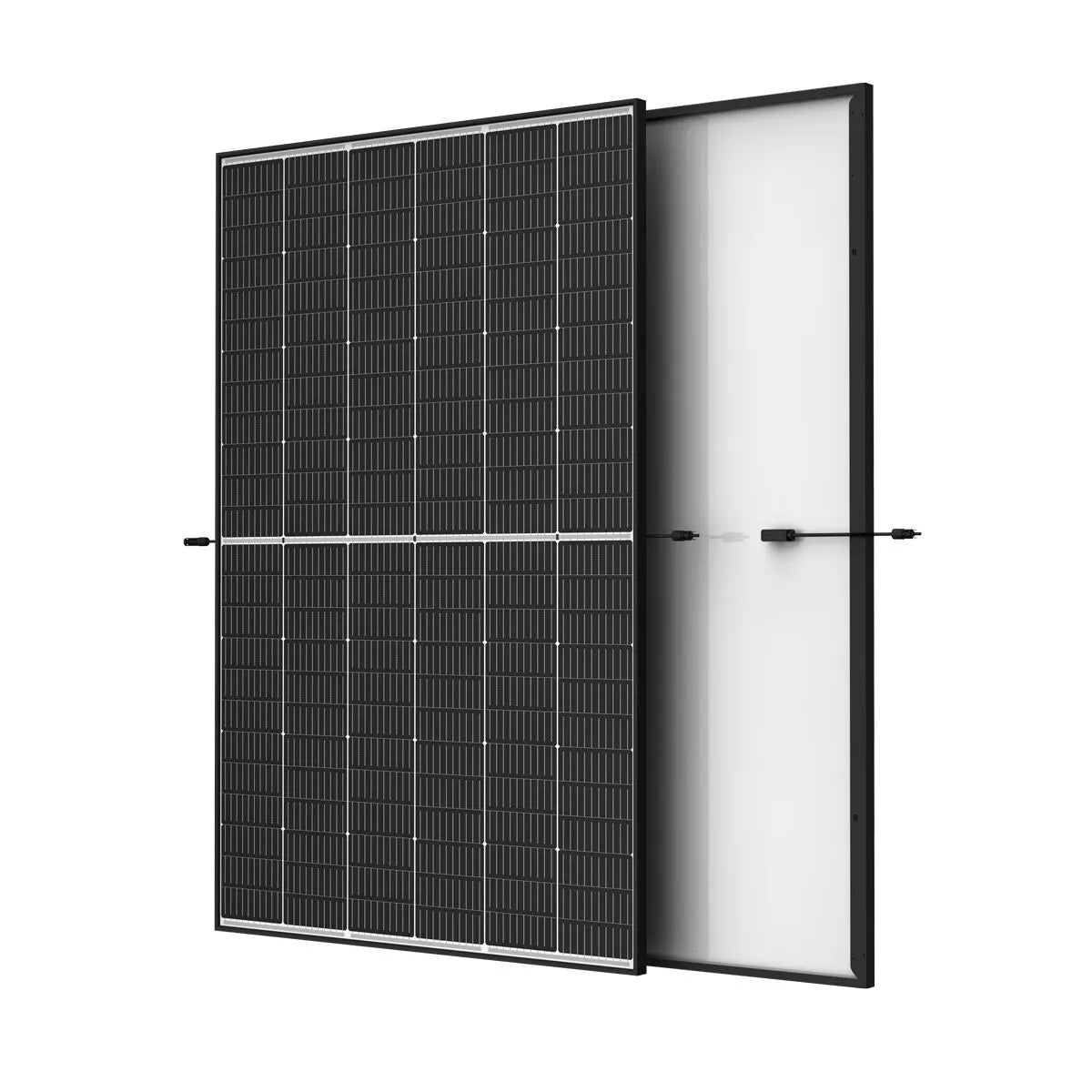

Trina TSM-465NEG9R.28 Dual Glass Black Frame

€94,38 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Trina TSM-465NEG9R.28 Dual Glass Black Frame is a powerful and modern solar panel for residential and light C&I rooftops where yield, reliability and clean design come together. With 465W output and 23.3% efficiency, this module delivers strong performance in a manageable format. The combination of N-Type i-TOPCon Ultra technology, a dual-glass construction and a stylish black frame makes it ideal for installations where long-term output and premium appearance matter.

  • 465Wp high output: strong energy yield in a compact residential format of 1762 × 1134 mm.
  • 23.3% module efficiency: very high efficiency for rooftops with limited usable space.
  • Dual-Glass Black Frame: improved reliability, strong fire resistance and added protection against moisture, scratches and ageing.
  • 15 + 30 year warranty: 15 years product warranty and 30 years linear power warranty.

Why choose the Trina TSM-465NEG9R.28?

This module is designed for installations where high efficiency, low degradation and easy handling are key. It features a maximum system voltage of 1500V DC, a maximum series fuse rating of 25A, mechanical test loads of 5400 Pa on the front side and 4000 Pa on the back side and an operating temperature range of -40 °C to +70 °C. Thanks to its black anodized aluminium frame, low weight of 21.0 kg and compact dimensions of 1762 × 1134 × 30 mm, this Trina module suits a wide range of mounting systems and mainstream inverter platforms.

Please note: this module features a black frame and a dual-glass build for long service life and high mechanical reliability. Mounting hardware and grounding components are not included. According to Trina, grounding materials must be supplied by the installer. Use only suitable UV-resistant PV cable of at least 4 mm² (12 AWG), keep at least 100 mm clearance from the roof or wall, and do not mate different connector brands or connector types.
Specification Value
Brand & Model Trina Solar TSM-465NEG9R.28
Power / Efficiency 465 Wp / 23.3%
Technology N-Type i-TOPCon Ultra (Dual Glass)
Voc / Isc 54.20 V / 10.85 A
Vmpp / Impp 45.80 V / 10.16 A
Dimensions 1762 × 1134 × 30 mm
Weight 21.0 kg
Glass / Frame 1.6 + 1.6 mm dual glass / black anodized aluminium frame
Connector TS4 Plus / TS4 / MC4 EVO2
Cable length Standard 2 × 1100 mm
Maximum system voltage 1500 V DC (IEC)
Maximum series fuse rating 25 A
Mechanical load 5400 Pa front / 4000 Pa back
Operating temperature -40 °C to +70 °C
Warranty 15 years product / 30 years power
Download Datasheet Download Manual
What is included?

Each module delivery includes:

  • Trina Solar TSM-465NEG9R.28 Dual Glass Black Frame
  • Factory-fitted PV cables in standard 2 × 1100 mm length with connectors
  • Integrated junction box

Not included are mounting rails, clamps, bolts, grounding components, string cabling and other installation accessories.

Is this panel compatible with my inverter?

Yes, this Trina module is designed for compatibility with mainstream inverters and diverse mounting systems. Always check that Voc 54.20 V, Isc 10.85 A and the selected connector standard match your string design and inverter. Common pairings include GoodWe, Solis, Huawei and Enphase.

Why choose Dual Glass with Black Frame?

The dual-glass structure makes the module less prone to micro-cracks, moisture and backside wear. Combined with the black frame, you get a module that is both technically strong and visually refined. This makes the TSM-465NEG9R.28 a strong choice for modern homes and premium rooftop installations.
