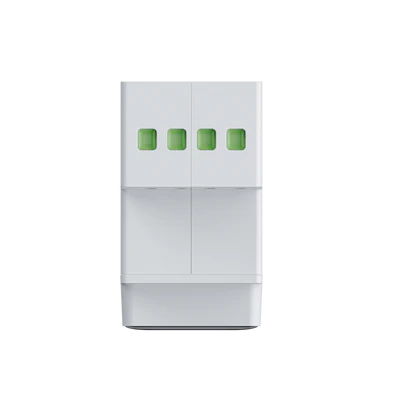

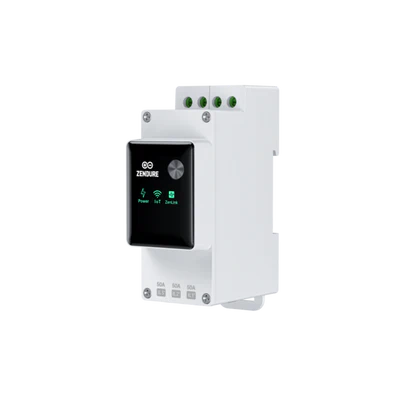

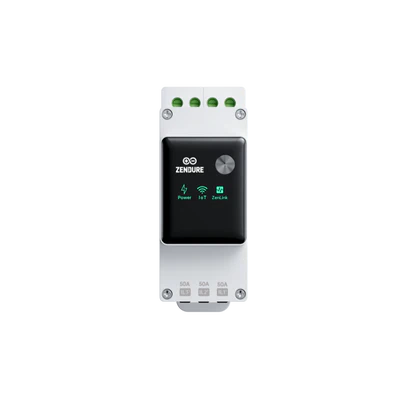

Zendure smart energy meter, 3-phase with CT clamps, zero injection, HEMS Netherlands Belgium Germany

The Zendure Smart Meter 3CT (Model ZDSMCT) is the intelligent 3-phase energy meter with CT terminals up to 120A for precise energy metering and management. This meter is essential for zero-injection management and dynamic energy control in the Netherlands, Belgium, Germany , and the rest of the EU, and works seamlessly with Zendure SolarFlow and HEMS systems .

Please note: this smart energy meter is only sold in combination with a Zendure battery or SolarFlow system.

Why choose the Zendure 3-phase energy meter with CT clamps?

• Three-phase monitoring: Measure each phase consumption separately via 3 supplied CT clamps (120A) .
• Smart energy management: Works seamlessly with Zendure HEMS and SolarFlow for optimal self-consumption and zero-injection control.
• Real-time insight: View current, voltage, power and energy flows directly in the Zendure App .
• Wireless Connectivity: Communicates via Bluetooth and 2.4 GHz Wi-Fi for a stable connection to the inverter or battery.
• Compact and efficient: Energy-saving design consuming less than 3W .
• Quick installation: Suitable for DIN rail (35 mm) mounting in the meter cupboard, with simple connection of the supplied CT terminals.

Technical specifications of the Zendure Smart Meter 3CT

• Product Name: Zendure Smart Meter 3CT
• Model: ZDSMCT
• Dimensions (L×W×H): 91 × 36.5 × 64 mm
• Weight: 117.57 g
• Nominal system voltage: 100–240 VAC ±10%
• Frequency: 50/60 Hz
• Maximum current per channel: 120 A
• Power consumption: < 3 W
• Protection level: IP20 (for indoor installation)
• Operating temperature: −20 °C to +40 °C
• Relative humidity: 30% – 70% RH
• Altitude range: 0 – 2000 m
• Wireless communication: Bluetooth, 2.4 GHz Wi-Fi
• Mounting: DIN rail (35 mm)
• Compatibility: Only with Zendure SolarFlow and Zendure battery storage systems
