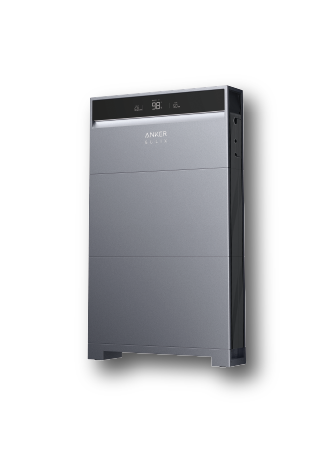

Anker Solix X1 10kWh Hybrid System (1-Phase) + 4.6kW Inverter
Couldn't load pickup availability
The Anker Solix X1-H4.6K-S (10kWh) package is the ultimate 1-phase energy solution for households aiming for maximum independence and safety. This all-in-one system combines a powerful 4.6kW hybrid inverter with two 5kWh LFP battery modules into one seamless, aesthetic unit.
- 100% Usable Energy: 10kWh storage capacity with full depth of discharge (100% DoD).
- Hybrid Power: 4.6kW continuous output with a lightning-fast 10ms UPS switchover time during outages.
- Extreme Durability: IP66 certified and C5 Anti-Corrosion rating—ideal for outdoor installation and coastal areas.
- Ultra-Slim Design: Only 150 mm deep, making it one of the most compact and elegant systems on the market.
Why choose the Anker Solix X1 (1-Phase)?
Engineered for maximum efficiency, the Anker Solix X1 features a built-in Energy Optimizer for each module, allowing every battery to operate independently. This prevents performance loss due to the aging of individual cells and maximizes the overall lifespan of your investment. Even under extreme temperatures from -25°C to 60°C, the system delivers reliable power.
| Property | Value |
|---|---|
| Brand & Model | Anker Solix X1-H4.6K-S (1-Phase) + 10kWh |
| MPN (Inverter / Battery) | X1-H4.6K-S / X1-B5-H |
| Battery Technology | LiFePO4 (LFP) |
| Total Capacity | 10 kWh (Modularly expandable) |
| Max. PV Input | 9.2 kW (200% oversizing possible) |
| Dimensions (Depth) | Only 150 mm (Ultra-slim) |
| Warranty | 10-Year Manufacturer Warranty |
| Certifications | VDE-AR-E 2510-50, CE, IEC 62619, UN38.3 |
What is included in the package?
The package is delivered complete for a professional installation:
- 1x Anker Solix X1-H4.6K-S Power Module (Inverter)
- 2x Anker Solix X1-B5-H Battery Modules (10kWh Total)
- 1x WiFi/4G Dongle & Smart Meter (CT clamps)
- Wall bracket, connection cables, and mounting hardware
Compatibility with panels and heat pumps?
This hybrid system replaces your current inverter and is compatible with all Tier-1 solar panels, including Aiko, Jinko, DMEGC, Trina Solar, and JaSolar. Thanks to its SG-Ready control, it also works perfectly with modern heat pumps.
Is this system expandable?
Yes. The Solix X1 is fully modular. You can easily expand this 10kWh system later with additional 5kWh modules up to a maximum of 30 kWh per column. New and old modules can be combined without performance issues.
Is this battery suitable for dynamic energy tariffs?
Absolutely. The Anker Solix X1 is perfect for trading on the energy market or using dynamic tariffs like Tibber. You can automatically charge when prices are low and discharge during peak hours, which is essential for ROI after the phasing out of net metering.
Explore all configurations in the full Anker Solix X1 Collection.
