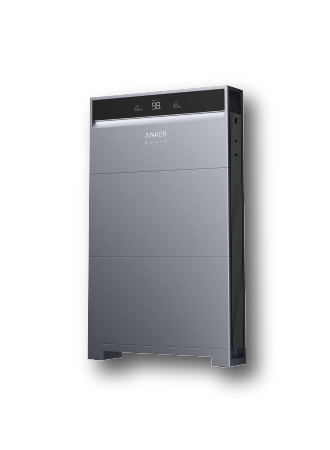

Anker Solix X1-H4.6K-S package with 10kWh storage

The Anker Solix X1-H4.6K-S package is a powerful 1-phase hybrid solution with a storage capacity of 10 kWh . This system is perfect for families with a higher daily consumption who want to store more solar energy and be more independent of the grid.

Key Features:

1-phase hybrid inverter with smart energy management functions

Storage capacity: 10 kWh, expandable to 30 kWh

Max. PV input: 9.2 kW via 2 MPP trackers

On-grid power: 4.6 kW

Backup power: 4.6 kW, peak 10 kVA (10 s)

Efficiency up to 97.5%

Extensive protection against overvoltage, short circuit and overheating

Technical specifications:

• Battery type: LFP (Lithium iron phosphate)

• Battery capacity: 10 kWh (2 × 5 kWh)

• Battery voltage: 350 – 550 VDC

• Max. charging/discharging power: 2 × 3 kW

• Dimensions (inverter): 670 × 335 × 150 mm

• Weight: 19 kg (inverter), 102 kg (2 batteries)

• Total package weight: 121 kg

• Protection class: IP66

• Operating temperature: −25 °C to +60 °C

• Warranty: 10 years

This package consists of the following products:

2 × Anker Solix X1-B5-H 5 kWh battery module
1 × Anker Solix X1-H4.6K-S Power Module

Datasheet download
