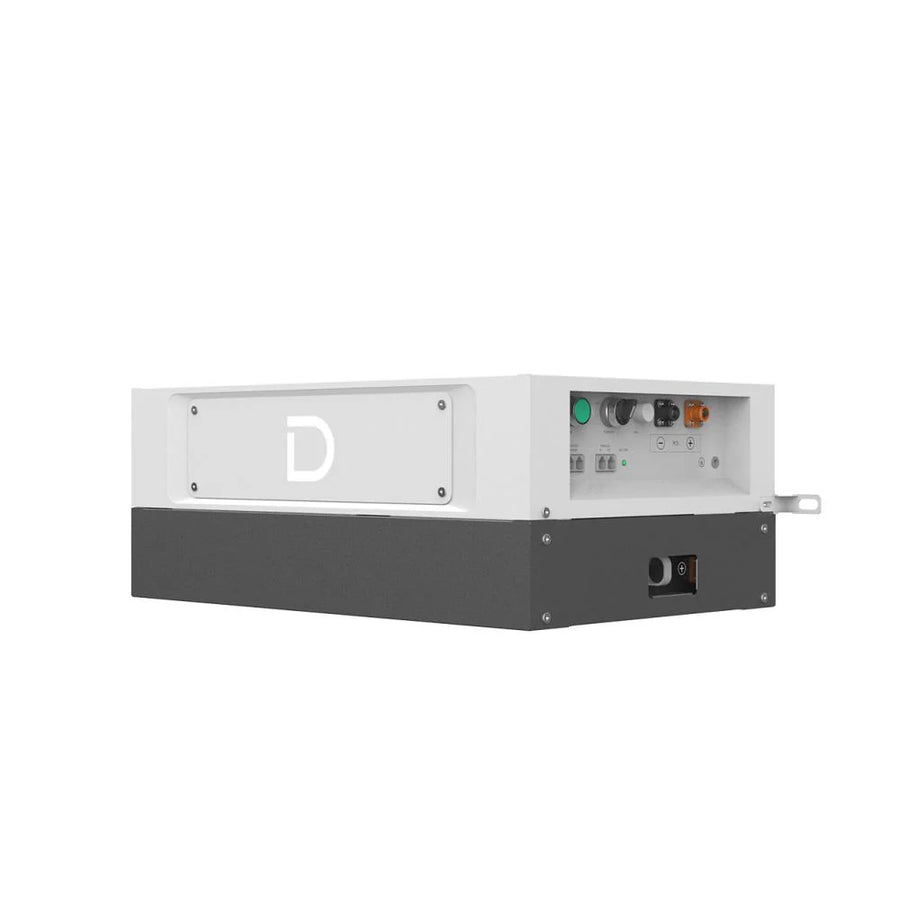

• Dyness-Stack100-bdu-base-complete
  • Dyness-Stack100-bdu-base

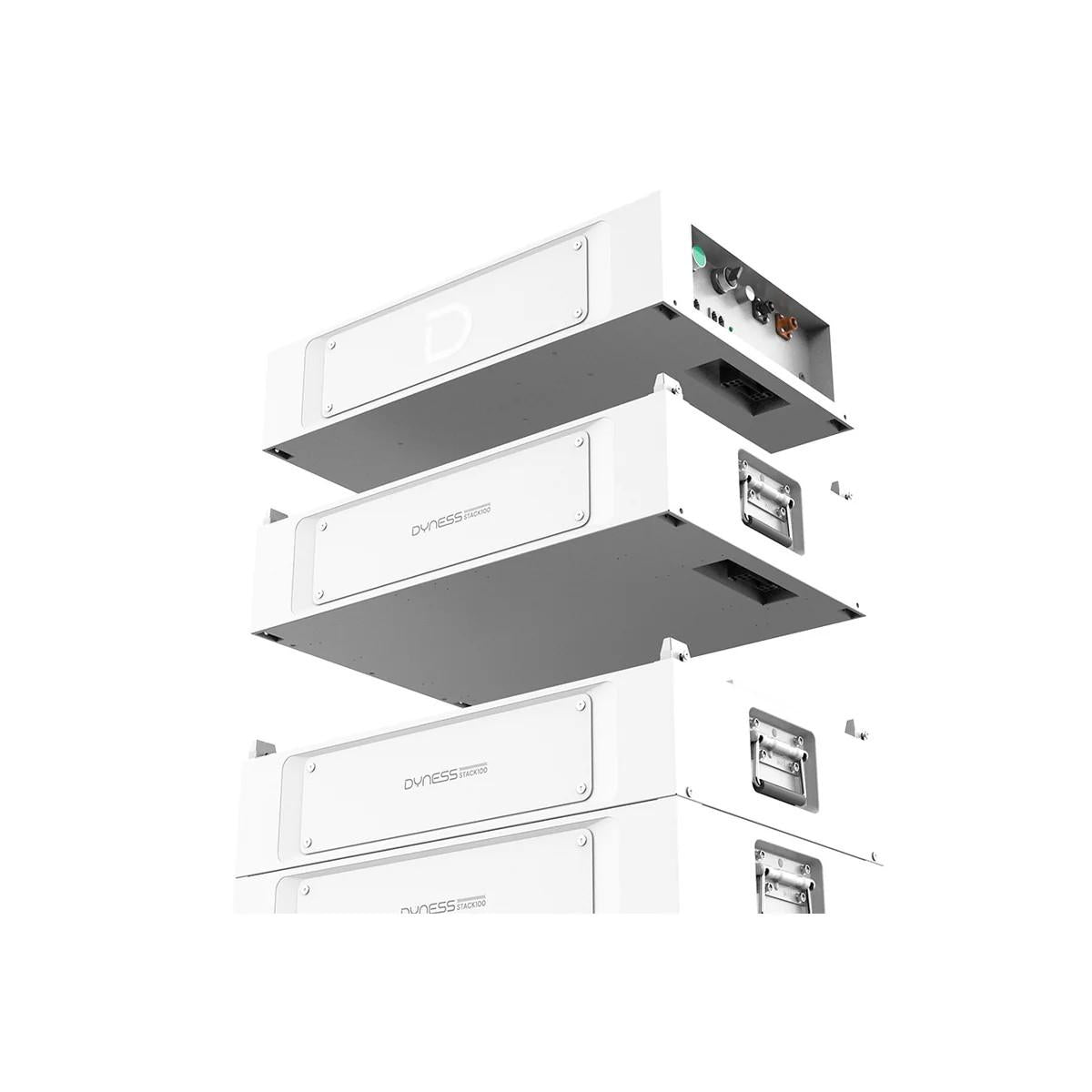

  • Dyness-Stack100-Battery-stack
1 3

Dyness Stack 100 BDU & Base – Control Unit

€879,67 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–8 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Dyness Stack 100 BDU & Base (SBDU100) serves as the intelligent control center of your high-voltage (HV) energy storage system. This combination of Battery Distribution Unit and reinforced stack base platform ensures safe integration, communication management and performance control for 3 to 15 Stack 100 battery modules per tower. With integrated WiFi monitoring, active cooling and 1C support (100A), the BDU guarantees reliable high-power operation in demanding HV installations.

  • Central System Control: Manages 3–15 modules per tower (up to 76.8kWh).
  • Base Included: Heavy-duty foundation for secure stack mounting.
  • Integrated WiFi: Cloud monitoring & OTA firmware updates.
  • 1C High Power Support: 100A continuous, 125A peak (2 min @ 25°C).

Intelligent High-Voltage Energy Management

The smart BMS architecture continuously supervises voltage, current and temperature across connected modules. In case of overload, short circuit or abnormal thermal conditions, automatic protection protocols are activated. Integrated forced air cooling maintains stable performance during sustained high-load (1C-rate) operation in HV system configurations.

Installation requirement:
  • This product includes both the SBDU100 controller and the Stack 100 Base.
  • For parallel systems: ensure all towers are at 100% SOC and voltage deviation is <20V before connection.
  • HV installation must be performed by qualified professionals only.
Specification Value
Brand & Model Dyness SBDU100 (Stack 100 BDU)
Supported Configuration 3–15 modules per tower (up to 76.8kWh)
Max. Continuous Current 100A (≈5.12kW per module @ 51.2V)
Peak Current 125A (2 minutes @ 25°C)
Communication CAN / RS485 / WiFi
BDU Dimensions 590 × 390 × 133.5 mm
Base Dimensions 590 × 390 × 100 mm
Protection Rating IP20 (Indoor installation)
Certifications CE, UN38.3, IEC62619, IEC62477, IEC62040
Download Datasheet Download Manual
What is included in the package?

The delivery includes all components required for control and base installation:

  • 1x SBDU100 Control Unit
  • 1x Stack 100 Base Platform
  • Mounting brackets and hardware
  • RJ45 CAN resistor (120Ω)
  • Communication cable to inverter (2000mm)
  • Positive & negative power cables (4AWG)
  • User manual
How scalable is the Stack 100 system?

One BDU controls one tower with up to 15 modules. Up to 12 towers can be connected in parallel, enabling a maximum system capacity of 921kWh according to product specifications.

Is WiFi integrated?

Yes. The SBDU100 features an integrated WiFi module for remote monitoring and OTA firmware updates via the Dyness application.
