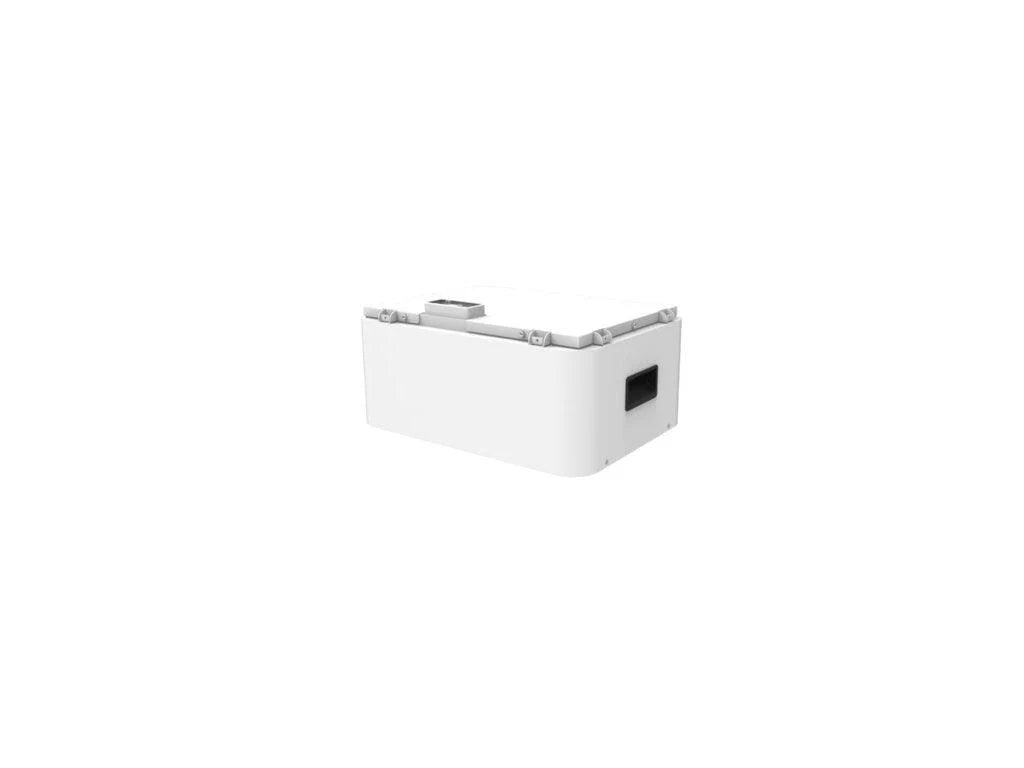

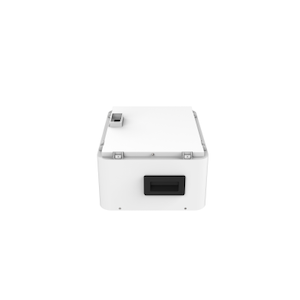

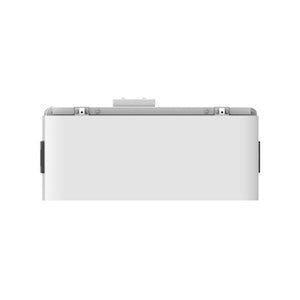

Dyness Tower 3.55kWh battery unit (HV9637)
Couldn't load pickup availability
The Dyness Tower 3.55 kWh battery module is the essential building block for the powerful Dyness Tower high-voltage system. This single module allows you to flexibly and modularly expand your existing energy storage. Thanks to the safe LiFePO4 technology and high voltage of 96V, you enjoy efficient and reliable energy supply, perfectly tailored to your growing energy needs.
- High Voltage (HV) module of 3.55 kWh
- Modular stackable design
- IP54 protection rating (Indoor/Outdoor)
- 10-year manufacturer warranty
Flexible expansion for your Tower system
- Easy Installation: Thanks to the wireless stacking design, you simply click this module onto your existing Tower system without complex wiring.
- Maximum Safety: Uses premium Lithium Iron Phosphate cells that are thermally stable and guarantee a long lifespan of over 6000 cycles.
- High Efficiency: As a high-voltage battery (96V nominal), this module offers less energy loss and higher system efficiency compared to low-voltage alternatives.
- Seamless Integration: Works directly with the Dyness Tower BDU (Battery Distribution Unit) and automatically adapts to the system.
Technical Specifications
- Capacity: 3.55 kWh (37Ah)
- Nominal Voltage: 96V DC
- Voltage Range: 84V – 125V
- Battery Type: LiFePO4 (High Voltage)
- Dimensions: 504 x 380 x 250 mm
- Weight: 41 kg
- Protection Class: IP54
- Certifications: CE, UN38.3, IEC62619
What is included in the package?
The delivery includes: 1x Dyness Tower 3.55 kWh battery module (HV9637), necessary mounting materials for stacking, and the manual. Note: A BDU (Control Unit) is required for a functioning system.
Which systems is this module compatible with?
This module is specifically designed for the Dyness Tower T-series (T7, T10, T14, T17, T21). The system is compatible with hybrid inverters from brands such as GoodWe, Solis, and Deye. View the official compatibility list for details.
How can I expand storage capacity in the future?
You can increase capacity by adding extra 3.55 kWh modules to your Tower. A single tower can consist of a maximum of 6 modules (T21, total 21.31 kWh). Modules are easily stackable.
Is this system safe for indoor installation?
Yes, the module has an IP54 rating and is suitable for both indoor and outdoor installation. The LiFePO4 technology is extremely safe, and the system features active temperature monitoring.
Looking for a complete Tower system or accessories? View our full range of Dyness home batteries here.
