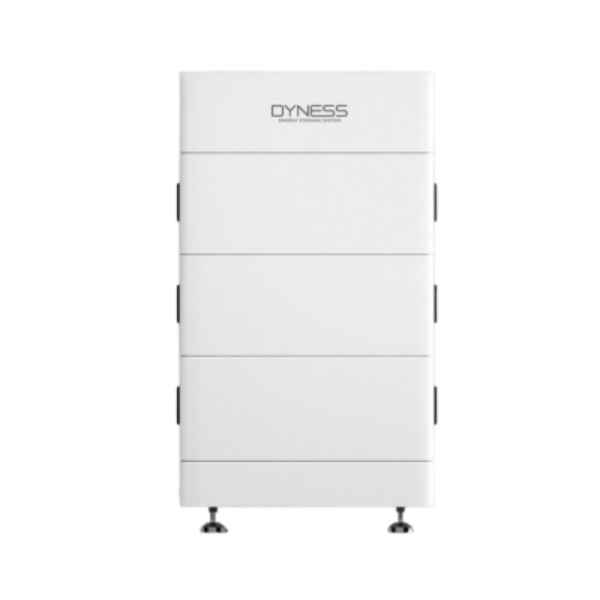

Dyness Tower T10 – 10.66 kWh HV Home Battery (LiFePO4)
Couldn't load pickup availability
The Dyness Tower T10 is a powerful 10.66 kWh high-voltage home battery, designed for households with higher energy demands. With a nominal voltage of 288V and a stackable configuration of three modules, this system offers superior efficiency and flexibility. The robust IP54 housing allows for installation both indoors and outdoors, ideal for peak-shaving, self-consumption, and backup power applications.
- High capacity of 10.66 kWh
- High voltage efficiency (288V)
- IP54 protection rating (Indoor & Outdoor)
- Wireless installation (Stackable)
Powerful energy storage without compromise
- Optimized Performance: The high-voltage design minimizes energy loss, resulting in higher system efficiency.

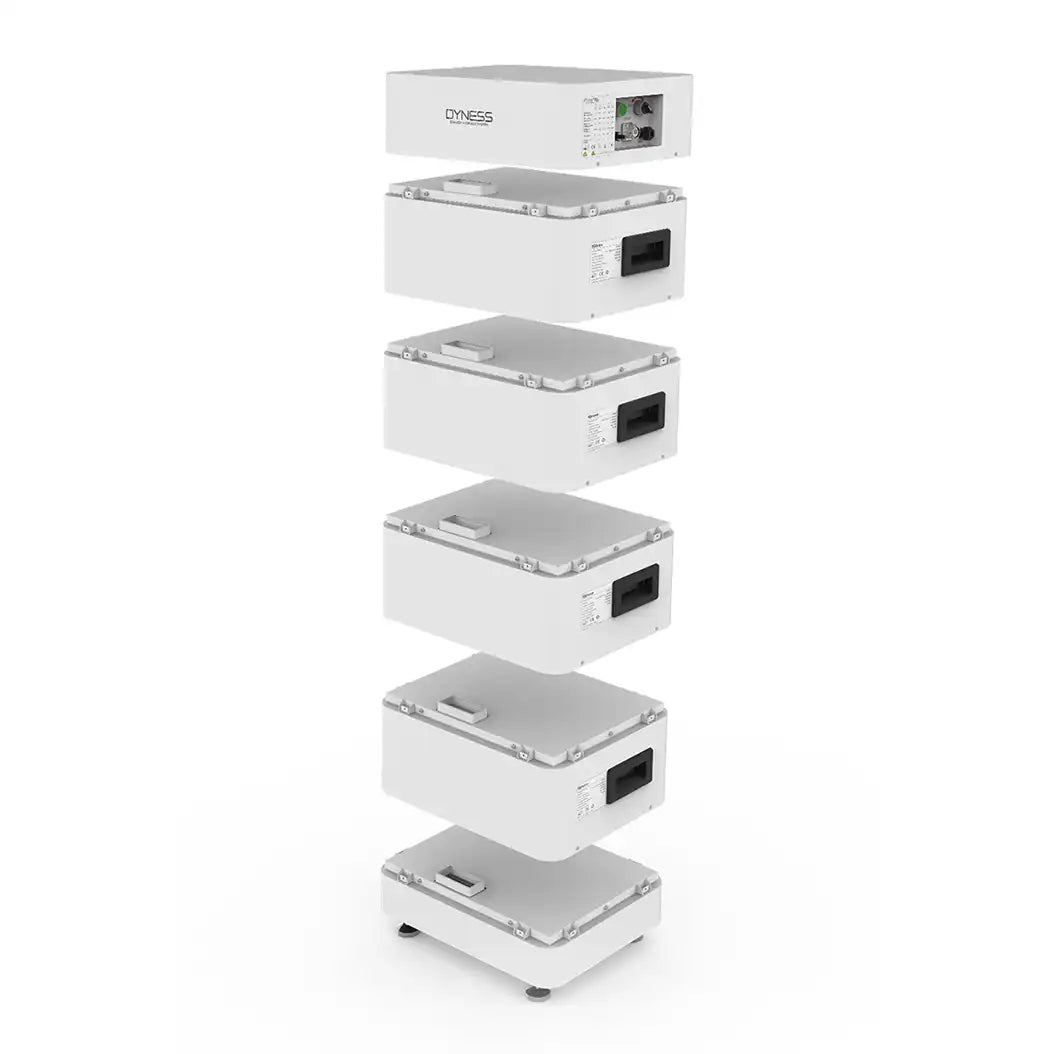

- Seamless Integration: The stackable design without internal wiring ensures a clean look and lightning-fast installation.
- Future-Proof: Start with 10.66 kWh and easily expand later by simply adding extra modules (up to 21.31 kWh).
- Safety First: Equipped with safe LiFePO4 cells and an advanced BMS that continuously monitors temperature and voltage.
Technical Specifications
- Nominal Capacity: 10.66 kWh
- Technology: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 288V DC
- Configuration: 3x Battery Module + 1x BDU
- Voltage Range: 252V – 328V
- Protection Class: IP54
- Dimensions: 504 x 380 x 900 mm
- Weight: 146 kg
- Certifications: CE, UN38.3, IEC62619
What is included in the package?
According to the official packing list, you receive for the T10:
1x BDU Box (Item A): 1x Tower BDU, 1x Comm cable to inverter (2m), 1x Positive cable (Red, 2m), 1x Negative cable (Black, 2m), DC connectors (+/-), 1x BDU comm connector, Screws (M6*14, M4*10), Manual & Warranty card.
3x Battery Box (Item B): Each box contains 1x HV9637 Battery Module (96V/37Ah) and mounting screws. You receive a total of 3 battery modules.
Which inverters is this system compatible with?
The Tower T10 works perfectly with hybrid high-voltage inverters from top brands such as GoodWe, Solis, SAJ, and Ingeteam. Consult the official compatibility list for exact models.
How can I expand storage capacity in the future?
The T10 consists of 3 modules. You can easily expand this system later up to a maximum of the Tower T21 (6 modules, 21.31 kWh) by stacking additional HV9637 modules on top. No extra wiring is required for this.
Is this system safe for indoor installation?
Absolutely. The Dyness Tower T10 uses thermally stable LiFePO4 cells and has an IP54 rating (splash and dust proof). This makes the system safe for installation in the home, garage, or even under a canopy outside.
Looking for another Dyness battery? View our full range of Dyness batteries here.
