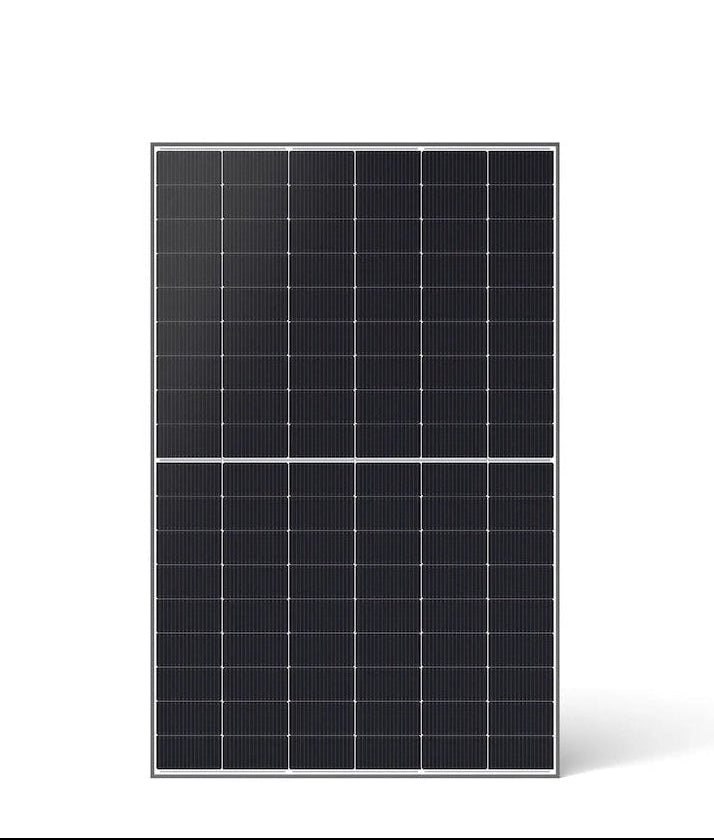

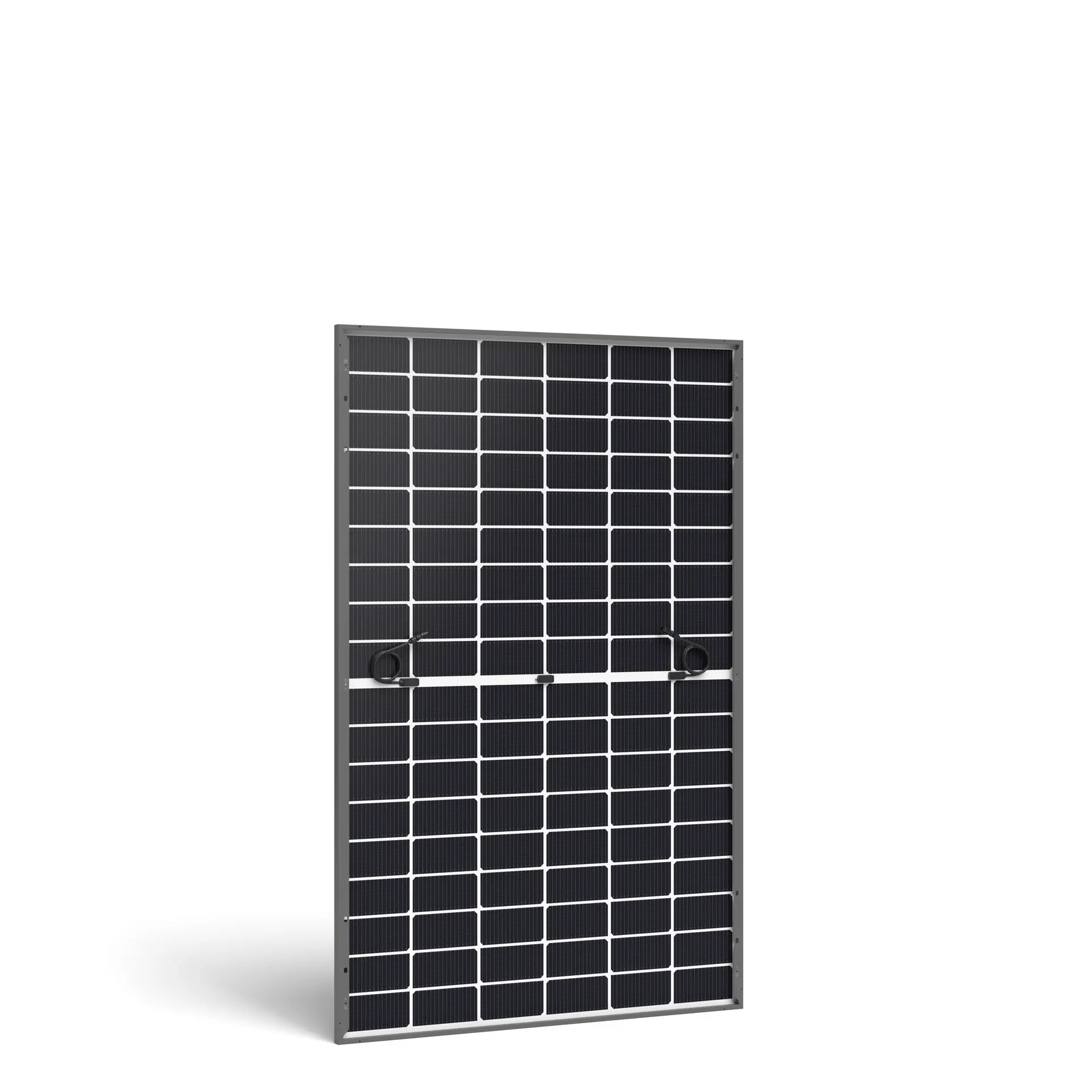

JA Solar JAM54D40 460/LB Traceable Dual Glass Bi-facial Black Frame

€112,53 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The JA Solar JAM54D40 460/LB Traceable Dual Glass Bi-facial Black Frame is a high-efficiency solar panel for residential and commercial rooftops. Thanks to its 460W output and 23.0% module efficiency, it helps maximize energy yield on limited roof space. This version combines bifacial dual-glass technology with a sleek black frame and traceable material sourcing for modern PV projects.

  • 460W output: strong panel power for efficient string design.
  • 23.0% module efficiency: more yield from every square meter.
  • MC4-EVO2 with long cables: MC4-EVO2 connector with cable length of 1200 mm (+) / 1200 mm (-).
  • Traceable version: developed to help demonstrate responsible material sourcing and support compliance with strict international laws and import requirements.

Why choose the JAM54D40-460/LB?

The JAM54D40-460/LB is designed for installations where high power density, dependable performance and added supply chain assurance matter. This traceability has been introduced by manufacturers to demonstrate that materials have been sourced responsibly. It helps support assurance that no forced labour has been used in production and that strict international legislation and import rules are met, including those in the United States and the European Union. With a Voc of 38.86V, Isc of 15.01A, bifaciality of 80% ± 10% and a maximum system voltage of 1500V DC, this module is suitable for scalable residential and commercial PV systems.

Important: installation must be carried out under the guidance of a qualified electrician. Wear a safety helmet, insulating gloves and insulating shoes. Use sunlight-resistant DC cable of at least 4 mm² (12 AWG), keep a minimum clearance of 10 cm between the module frame and the roof or wall, allow sufficient rear-side clearance for bifacial use where possible and install at a tilt angle of at least 10°. Never disconnect connectors under load and preferably do not interconnect different connector types or brands.
Specification Value
Brand & Model JA Solar JAM54D40-460/LB
Capacity / Power 460W
Module efficiency 23.0%
Voc / Isc 38.86V / 15.01A
Vmpp / Impp 32.54V / 14.14A
Dimensions 1762 × 1134 × 30 mm
Weight 22.0 kg
Number of cells 108 (6 × 18), Mono-16BB
Glass 1.6 mm / 1.6 mm dual glass

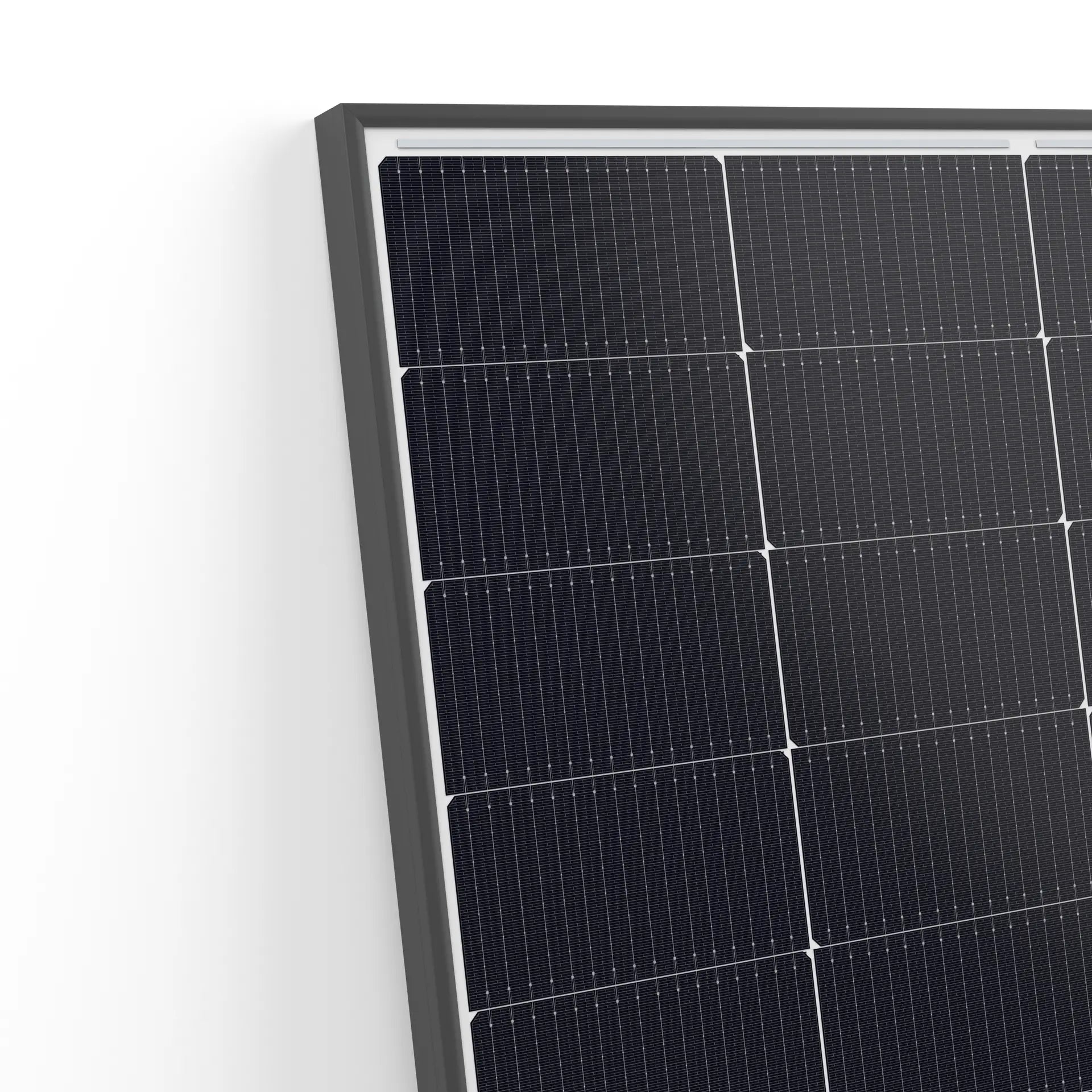

Frame Black anodized aluminium frame
Junction box IP68, 3 diodes
Connector MC4-EVO2
Cable cross-section 4 mm² (IEC) / 12 AWG (UL)
Long cable length 1200 mm (+) / 1200 mm (-)
Maximum system voltage 1500V DC
Maximum series fuse rating 30A
Operating temperature -40°C to +85°C
Temperature coefficient of Pmax -0.300%/°C
Temperature coefficient of Voc -0.260%/°C
Temperature coefficient of Isc +0.046%/°C
Bifaciality 80% ± 10%
Certifications IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001
Packaging 36 pcs per pallet / 936 pcs per 40ft HQ
Warranty 25-year product warranty / 30-year linear power warranty
Download Datasheet Download Manual
What is included in the package of the JA Solar JAM54D40 460/LB Traceable Dual Glass Bi-facial Black Frame?
Component Description
Solar panel 1 × JA Solar JAM54D40-460/LB module
Junction box Integrated IP68 junction box with 3 diodes
Connectors & cables MC4-EVO2 connectors with long cables of 1200 mm (+) / 1200 mm (-) in landscape orientation
Not included Mounting rails, clamps, bolts, grounding materials, string cabling and inverter
Is the JA Solar JAM54D40-460/LB compatible with my inverter?

This panel is suitable for PV systems designed around 38.86V Voc, 15.01A Isc and a maximum system voltage of 1500V DC. Always verify string calculations, voltage margins and connector compatibility within your installation.

What installation points are important for the JA Solar JAM54D40-460/LB?

Installation must be carried out under the guidance of a qualified electrician. Use at least 4 mm² sunlight-resistant DC cable, maintain a minimum 10 cm ventilation gap, install the module preferably at a tilt of at least 10° and avoid installation in strong winds or on wet or frosted surfaces. The connectors must remain clean and dry.
