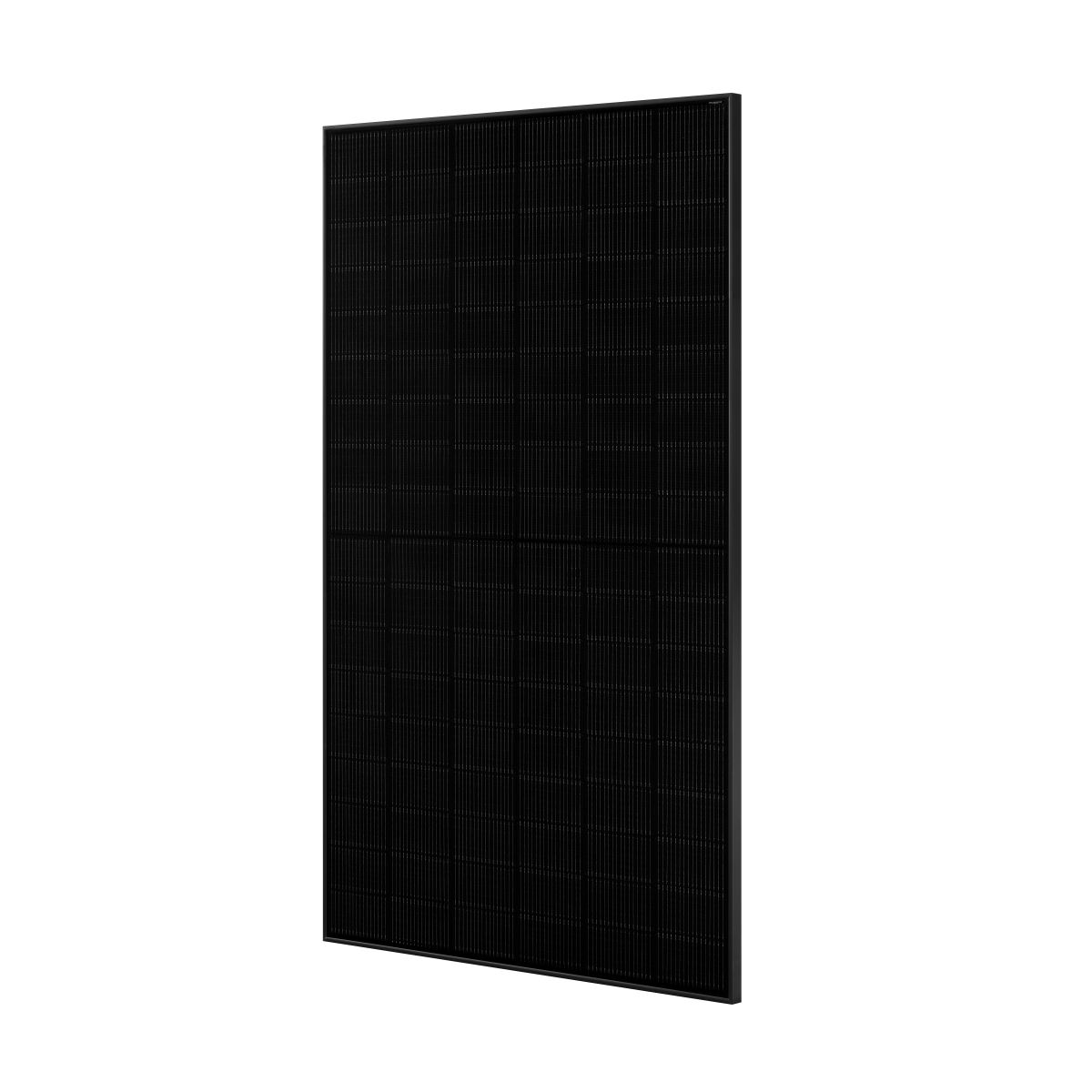

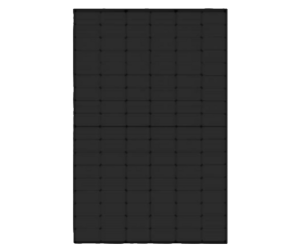

JA Solar JAM54D41-465/LR Traceable Dual Glass Full Black

€106,48 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The JA Solar JAM54D41-465/LR Traceable Dual Glass Full Black is a premium solar panel for residential and commercial rooftops. Thanks to its 465W output and the latest MBB n-Type solar cell with half-cell configuration, it delivers strong performance in a compact and modern full black design. This model is built for high output, lower degradation and dependable operation in a wide range of conditions.

  • 465W output: high panel power for efficient string design and strong yield per module.
  • Latest MBB n-Type half-cell technology: higher output power, lower LID, better weak-light response and a better temperature coefficient.
  • MC4-EVO2 with long cables: fitted with MC4-EVO2 connectors and long cables of 1200 mm (+) / 1200 mm (-).
  • Traceable version: helps demonstrate responsible material sourcing and supports compliance with international regulations.

Why choose the JAM54D41-465/LR?

The JAM54D41-465/LR belongs to the latest generation of n-Bycium+ modules from JA Solar and combines double glass, full black design and MBB half-cell technology in one product. Its enhanced cell architecture supports higher output power, lower LID, better weak-light response and an improved temperature coefficient. The Traceable version is designed to improve visibility into material origin and provide added assurance around responsible sourcing within international supply chains.

Important: installation must be carried out under the guidance of a qualified electrician. Wear a safety helmet, insulating gloves and insulating shoes. Use sunlight-resistant DC cable of at least 4 mm² (12 AWG), keep a minimum clearance of 10 cm between the module frame and the roof or wall and install preferably at a tilt angle of at least 10°. Never disconnect connectors under load and never interconnect different connector types or brands.
Specification Value
Brand & Model JA Solar JAM54D41-465/LR
Capacity / Power 465W
Technology n-Bycium+ MBB Half-Cell
Module type n-Type Monofacial Double Glass
Version Traceable Dual Glass Full Black
Connector MC4-EVO2
Cable cross-section 4 mm² / 12 AWG
Long cable length 1200 mm (+) / 1200 mm (-)
Warranty 25-year product warranty / 30-year linear power warranty
Degradation 1% first year / 0.4% annually over 30 years
Certifications IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001, IEC 62941
Download Datasheet Download Manual
What is included in the package of the JA Solar JAM54D41-465/LR Traceable Dual Glass Full Black?
Component Description
Solar panel 1 × JA Solar JAM54D41-465/LR module
Connectors & cables MC4-EVO2 connectors with long cables of 1200 mm (+) / 1200 mm (-)
Manual Digital installation manual via the download link
Not included Mounting rails, clamps, bolts, grounding materials, string cabling and inverter
What does Traceable mean for the JA Solar JAM54D41-465/LR?

Traceable means manufacturers place added focus on being able to trace the origin of the materials used. This supports responsible sourcing and helps demonstrate compliance with strict international legislation and import requirements.

What installation points are important for the JA Solar JAM54D41-465/LR?

Installation must be carried out under the guidance of a qualified electrician. Use at least 4 mm² sunlight-resistant DC cable, maintain a minimum 10 cm ventilation gap, install preferably at a tilt angle of at least 10° and avoid installation in strong winds or on wet or frosted surfaces. The connectors must remain clean and dry.
