Pylontech Pelio Wall Mounting & Cable Set

The Pylontech Pelio Wall Mount & Cable Kit offers a complete solution for a safe and stable installation of the Pelio battery modules. This kit contains all necessary mounting hardware and cabling to make the installation easy and efficient.

Please note: install a maximum of 3x5.12kWh units when wall mounting

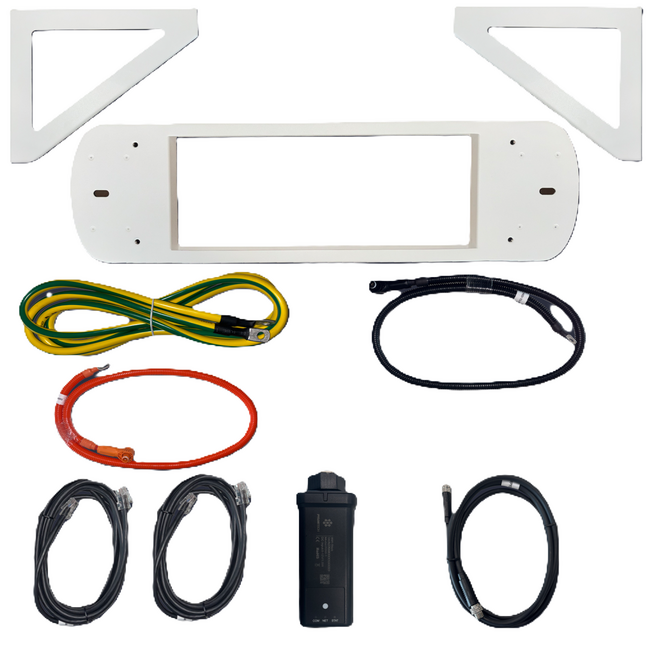

Contents of the Pylontech Pelio Wall Mount & Cable Kit:

✔ Fastening materials:

• Left bracket x1

• Right Bracket x1

• Base x1

• Anti-tilt brackets x2

• Exhaust brackets x2

• Handles x2

✔ Wiring:

• Positive power cable (1.2m / 4AWG) x1

• Negative power cable (1.2m / 4AWG) x1

• RS485 communication cable (2.5m / RJ45) x1

• CAN communication cable (2.5m / RJ45) x1

• Grounding cable x1

✔ Other accessories:

• Communication ports x2

• Waterproof covers x4

• WIFI block x1

✔ Mounting materials:

• Screws (M5×12) x2

• Screws (M4×6) x4

• Screws (M6×16) x4

• Expansion screws (M8×60) x8

• Nylon countersunk screws (M5×10) x10
