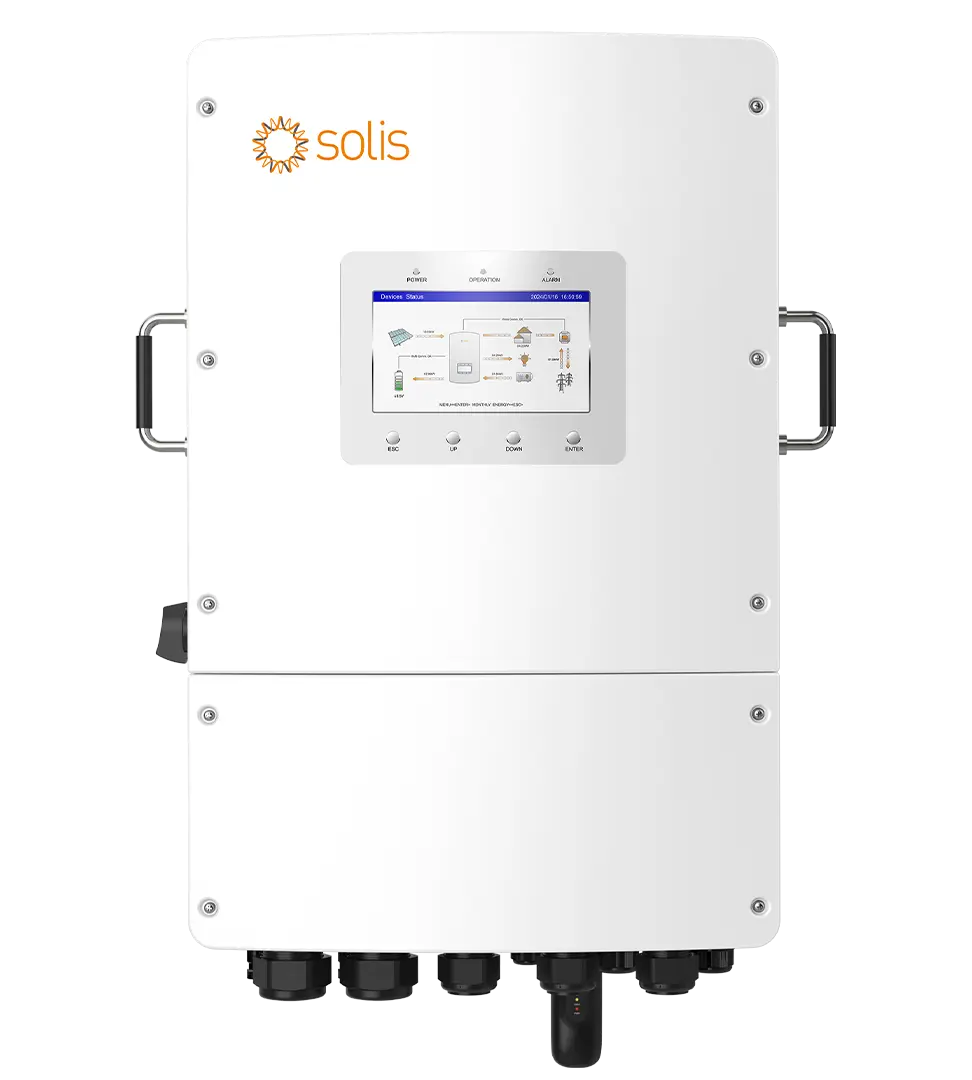

Solis S6-EH3P15K02-NV-YD-L 3-Phase Hybrid Inverter
Couldn't load pickup availability
The Solis S6-EH3P15K02-NV-YD-L is an advanced 3-phase hybrid inverter engineered for seamless integration with low-voltage battery systems. With a rated output power of 15 kW and 24 kW maximum usable PV input, this system maximizes self-consumption. The inverter provides reliable backup capabilities with a switch time of <10ms, ensuring uninterrupted power supply. Suitable for demanding installations requiring exceptional stability.
- PV Capacity: Supports 24 kW maximum usable PV input power for optimal yield.
- Charge Rate: Delivers a maximum charge/discharge current of 250A.
- Switch Time: Backup power supply activates in <10ms during outages.
- Compatibility: Works efficiently with Li-ion/Lead-acid 40-60V battery units.
Technical Precision for Robust Energy Systems
The Solis S6-EH3P15K02-NV-YD-L offers a resilient solution for complex grid-tied and off-grid scenarios. Featuring 2/3 MPPT inputs and a maximum input current of 40A/40A, the inverter is fully compatible with high-power solar modules. The backup port provides 15 kW rated power and handles peak surges of 2 times of rated power, 10 S. Enclosed within an IP66 rated housing, the unit operates reliably in ambient temperatures ranging from -40°C~+60°C. The Smart Fan Cooling maintains thermal efficiency while keeping noise emissions at <65 dB(A). This ensures long-term operational excellence under severe environmental conditions.
| Property | Value |
|---|---|
| Brand & Model | Solis S6-EH3P15K02-NV-YD-L |
| Capacity / Power | 15 kW |
| Dimensions | 430*660*305mm |
| Warranty | 5 years (Extend to 20 years) |
What is included in the package?
The package of the Solis S6-EH3P15K02-NV-YD-L includes the following items:
- Inverter x1
- Back plate x1
- Fastening screw x2
- Expansion Bolt x4
- DC connectors x3 or x4
- Parallel cable x1
- Meter cable x1
- Eastron Meter x1
- CT x3
- S2-WL-ST Stick x1
- RJ45 connector x6
- Bluetooth Antenna x1
- Quick Installation Manual x1
What is the compatibility of this inverter?
This inverter is specifically engineered to operate with selected Li-ion/Lead-acid battery types within the 40-60V range. Please refer to the official Solis documentation for the exact compatibility list of batteries.
How does the Time-of-Use scenario work?
The Time-of-Use function allows the user to manually control battery charging and discharging. The system charges the battery during off-peak hours and discharges during peak hours to maximize financial benefits.
