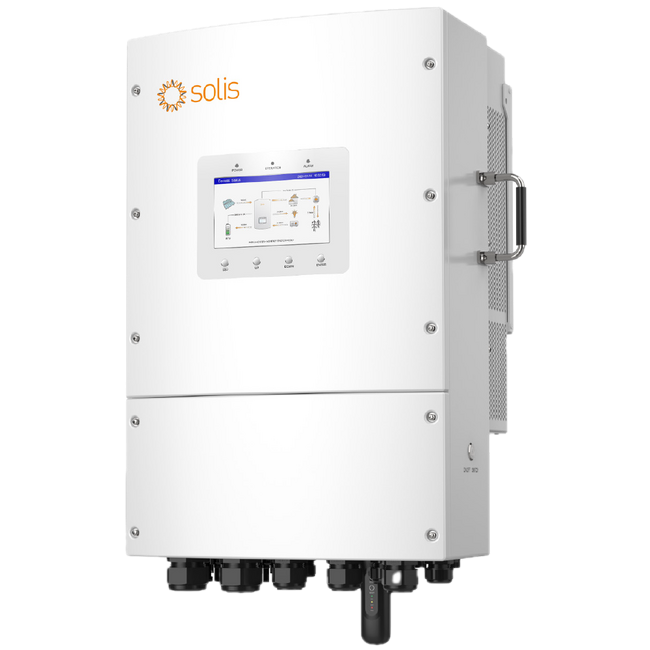

Solis EH3P15K02-YDL 3-phase Hybrid Inverter with Backup

The Solis S6-EH3P15K02-NV-YD-L is the most powerful model in this series. It is a three-phase hybrid inverter for low voltage batteries and offers a nominal power of 15 kW. This makes it particularly suitable for larger commercial applications or advanced residential systems with high consumption.

Key Features:

✔ Max. PV input: 24 kW

✔ Max. charging/discharging current: 290 A

✔ 2 MPPTs and 4 DC inputs

✔ Support for microgrid and generator connection

Technical specifications:

• Max. AC output current: 22.8 A

• Efficiency: 97.6%

• Weight: 42 kg

• Dimensions: 430 × 660 × 305 mm

• IP66 for outdoor use

Datasheet download
