Anker Solix X1 Accessory Kit (Parallel Connection Kit)
€30,25
incl. VAT
Shipping calculated at checkout.
Couldn't load pickup availability
Crucial Link for System Expansion
The Anker Solix Accessory Kit is indispensable for building large-scale energy storage systems. When expanding capacity and placing a second battery tower (stack) next to your main unit, this kit ensures the necessary electrical and data connection. The set contains exclusively original Anker components that meet the highest safety requirements for high-voltage connections.
⚠️ Application Advice:
- Mandatory for "Side-by-Side" configurations (two towers side by side).
- Not required for a single tower (Single Stack).
- Safety: Guarantees a correct, waterproof connection between towers.
- Complete: Contains all required DC and communication connectors.
- Quality: Original OEM Anker part to maintain warranty.
- Compatibility: Suitable for both single-phase and three-phase X1 systems.

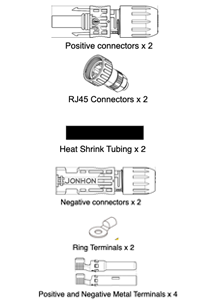

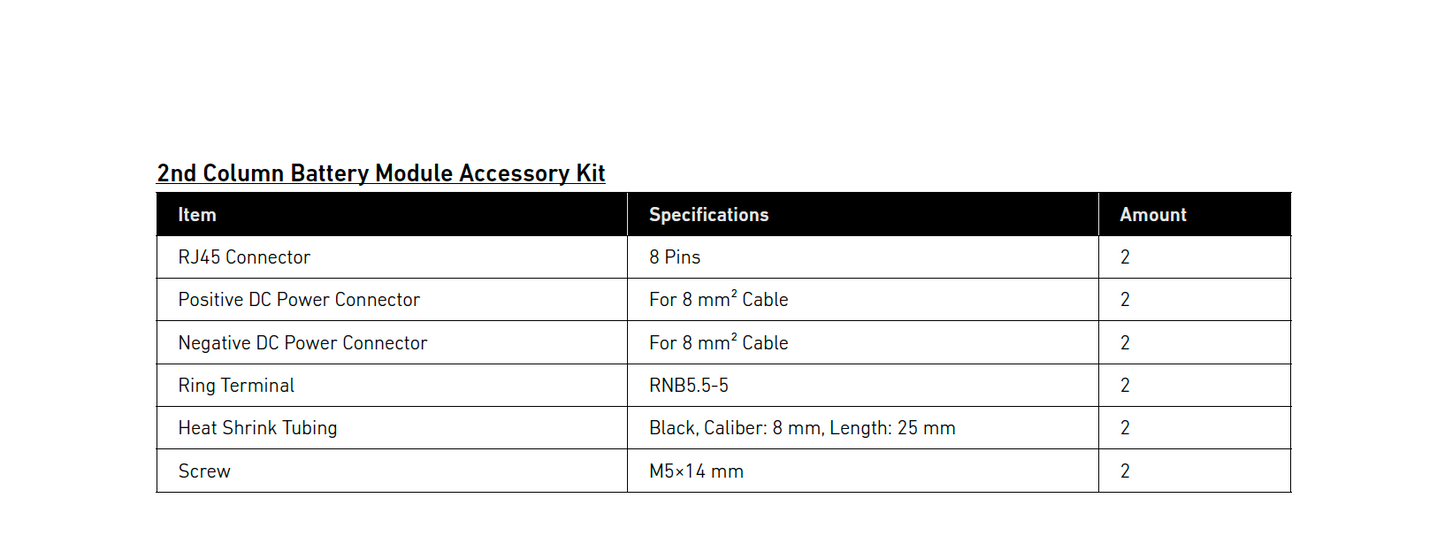

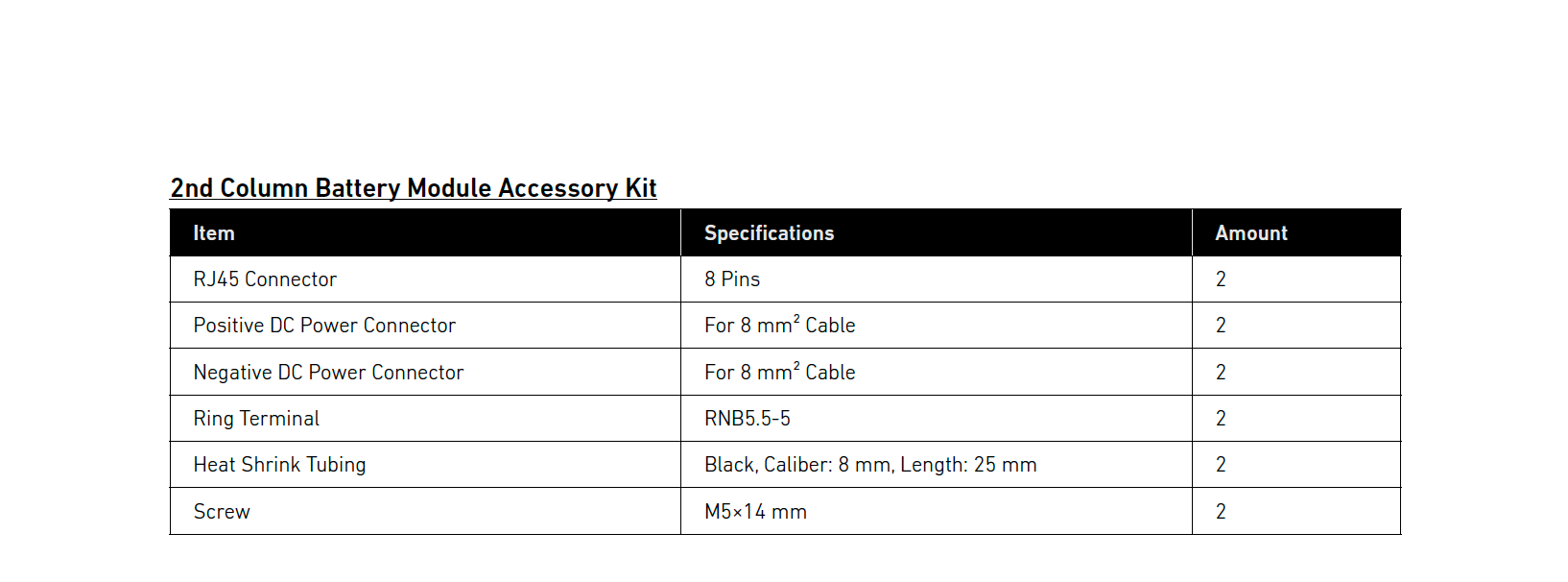

Package Contents
- DC Connectors: 2x Positive (+) & 2x Negative (-)
- Data Connectors: 2x RJ45 Communication plugs
- Insulation: 2x Heat Shrink Tubing
- Grounding: 2x Ring Terminals (O-type)
- Contacts: 4x Metal pins (Positive/Negative)
What is this kit for?
If you are expanding an Anker Solix X1 system beyond 15-20 kWh, or if the installation space is too low for a single tall tower, you place the batteries in two columns side by side. This kit connects the main tower (with inverter) electrically and data-wise to the second battery column.
Is special tooling required?
Yes, standard installation tools (crimping tool) are required for correctly crimping the RJ45 connectors and MC4-type DC connectors, as is common in PV installations.
View the full collection: Anker Solix X1 System
