Anker Solix X1 Battery Top Cover
Couldn't load pickup availability

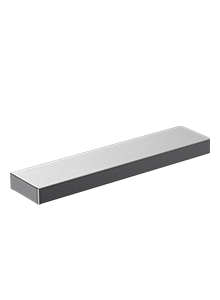

The Anker Solix X1 Battery Top Cover is the perfect finishing touch for expanded energy storage systems. When expanding your capacity with a second battery tower (Side-by-Side setup), this specially designed cover is used to hermetically seal the top battery module. This guarantees an IP66 waterproof rating and ensures a sleek, uniform appearance that matches the main tower.
- Only required for additional battery stacks where no inverter is placed on top.
- Not necessary for the main tower; the Power Module (Inverter) acts as the seal there.
- Maximum Protection: Hermetically seals the battery stack according to IP66 standards.
- Seamless Design: Provides a perfect visual match with the rest of the Anker Solix X1 system.
- Essential for Expansion: Indispensable for configurations larger than 15-20 kWh (Multi-Stack).
- Premium Quality: Original Anker accessory, fully UV and weather resistant.
Technical Specifications
| Property | Details |
|---|---|
| Product | Anker Solix X1 Battery Top Cover Kit |
| Compatibility | Anker Solix X1 Battery Modules (X1-B5-H) |
| Function | Protective capping & weatherproofing |
| Material | High-quality, impact-resistant plastic (matching the housing) |
| Protection Rating | IP66 (suitable for outdoor installation) |

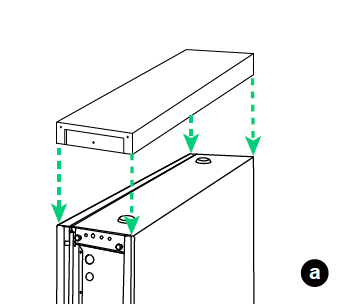

| Installation | Easy click-and-screw assembly |
When exactly do I need this top cover?
You only need this part for "Side-by-Side" configurations. This occurs when you use more than three battery modules (15 kWh) or if your ceiling height is limited, requiring you to place the batteries in two separate columns. While the main column is capped by the inverter, every additional column needs this cover to protect the top connections.
Is the cover fully waterproof for outdoor use?
Yes. In combination with the Anker Solix X1 battery modules, this cover guarantees an IP66 protection rating. It reliably protects the internal electrical contacts of the top battery module from rain, dust, and moisture, which is essential for a safe outdoor installation.
Can I install the cover myself?
The cover is designed for easy assembly. however, since it is part of a high-voltage system, we always recommend having the installation performed by the certified professional who is configuring your overall Solix system.
Explore all components in our full Anker Solix X1 Collection.
