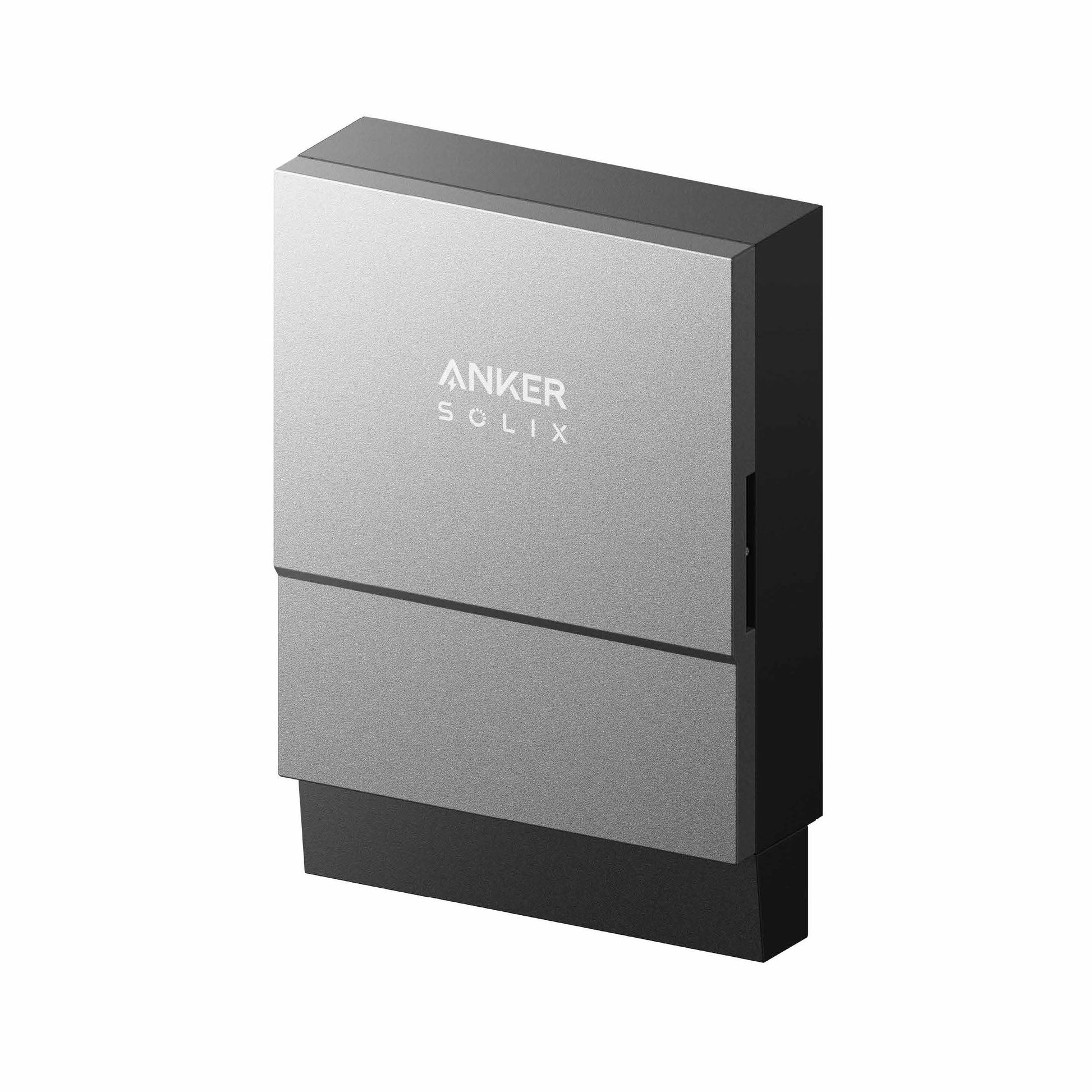

Anker SOLIX Power Dock Pro 63-T-EU – Three-Phase Backup Box
Couldn't load pickup availability
The Anker SOLIX Power Dock Pro 63-T-EU is a three-phase backup box for residential energy storage systems. The system operates with a nominal current of 63A and is designed for installers implementing whole-home or partial-home backup solutions. This model is specifically compatible with the Anker SOLIX X1 Power Module and Battery Module.
- Switchover Time: 0 ms for connected backup loads
- Nominal Power: 41.58 kW three-phase output capacity
- Ingress Protection: IP55 rated for outdoor installation
- Smart Port: Supports generators and third-party PV inverters
- Monitoring: Built-in meters for Grid and Smart Port data
System Integration and Backup Performance
The Power Dock Pro facilitates the transition between grid-tied and off-grid operations. The system supports the parallel connection of up to two X1 power modules. The Smart Port allows for the integration of external sources such as generators or third-party solar systems into the energy management logic. A dedicated bypass switch ensures continuous power supply during system maintenance or malfunctions.
| Feature | Value |
|---|---|
| Brand & Model | Anker SOLIX Power Dock Pro 63-T-EU |
| Nominal Voltage | 380V / 400V (Three-Phase) |
| Nominal Current | 63A |
| Dimensions | 450 × 700 × 155 mm |
| Weight | 32 kg |
| Cooling Mode | Natural cooling |
What is included in the Anker SOLIX Power Dock Pro package?
| Item | Description |
|---|---|
| Anker SOLIX Power Dock Pro | Main three-phase backup box unit |
| Decorative Cover | Front aesthetic panel |
| T-shaped Rear Bracket | Wall mounting support bracket |
| Waterproof Connector (AC) | 6 units for AC cable entry |
| Waterproof Connector (Signal) | 1 unit for signal cable entry |
| Screw (M4 12 mm) | 8 units for component securing |
| Expansion Bolt (M8 70 mm) | 4 units for wall mounting |
| Self-Tapping Screw (M8 70 mm) | 4 units for wall mounting |
| Thumb Screw (M4 12 mm) | 1 unit for door locking |
| Flange Nut (M4) | 1 unit for internal securing |
| Circuit Breaker Lockout | Safety lockout device for breakers |
| Network Cable | Communication cable for module linking |
| 20-pin Pluggable Terminal Block | Connection block for COM ports |
| Documents | User manual and installation guide |
Which systems is this product compatible with?
The Power Dock Pro is compatible with the Anker SOLIX X1 series power modules, including models X1-H5K-T, X1-H8K-T, X1-H10K-T, and X1-H12K-T. The Smart Port supports third-party PV inverters compliant with IEC 62109-1:2010 and IEC 62109-2:2011. Communication is established via CAN, RS485, and Dry Contacts.
How does this product work in a self-consumption scenario?
In Self-Consumption mode, the Power Dock Pro prioritizes solar energy for household loads and battery charging. The integrated meters monitor real-time energy flow at the grid connection and Smart Port to minimize grid reliance. In the event of a grid failure, the system transitions the backup loads to stored battery energy within 0 ms.
