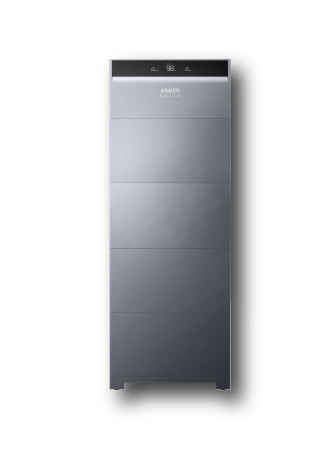

Anker Solix X1-H10K-T 3PH with 20 kWh storage

The Anker Solix X1-H10K-T 3PH package is a powerful three-phase hybrid solution with 20 kWh storage capacity. This system is ideal for households and businesses that consume a lot of energy and want maximum independence from the electricity grid.

Key Features:

3-phase hybrid inverter with 10 kW output power

Storage capacity: 20 kWh, expandable to 180 kWh

Max. PV input: 15 kW via 2 MPP trackers

Backup power: 10 kW, peak 15 kVA (10 s)

IP66 enclosure and C5 anti-corrosion

Technical specifications:

• Battery type: LFP (Lithium iron phosphate)

• Battery capacity: 20 kWh (4 × 5 kWh)

• Battery voltage (system): 350 – 550 VDC

• Max. charging/discharging power: 4 × 3 kW

• Dimensions (inverter): 670 × 435 × 180 mm

• Weight: 30 kg (inverter), 204 kg (4 batteries)

Total package weight: 234 kg

• Protection class: IP66

• Operating temperature: −25 °C to +60 °C

• Warranty: 10 years

This package consists of the following products:

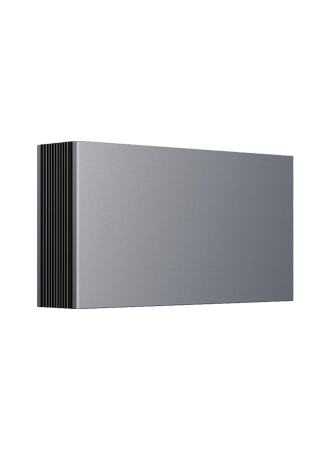

4 × Anker Solix X1-B5-H 5 kWh battery module (51 kg each)

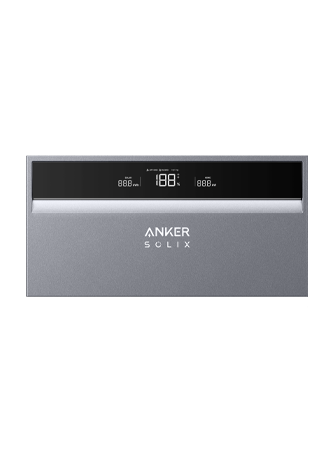

1 × Anker Solix X1-H10K-T 3PH Power Module (30kg)

Datasheet download
