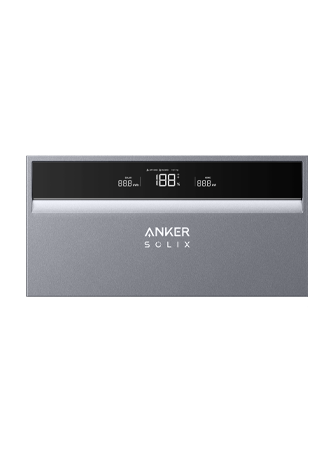

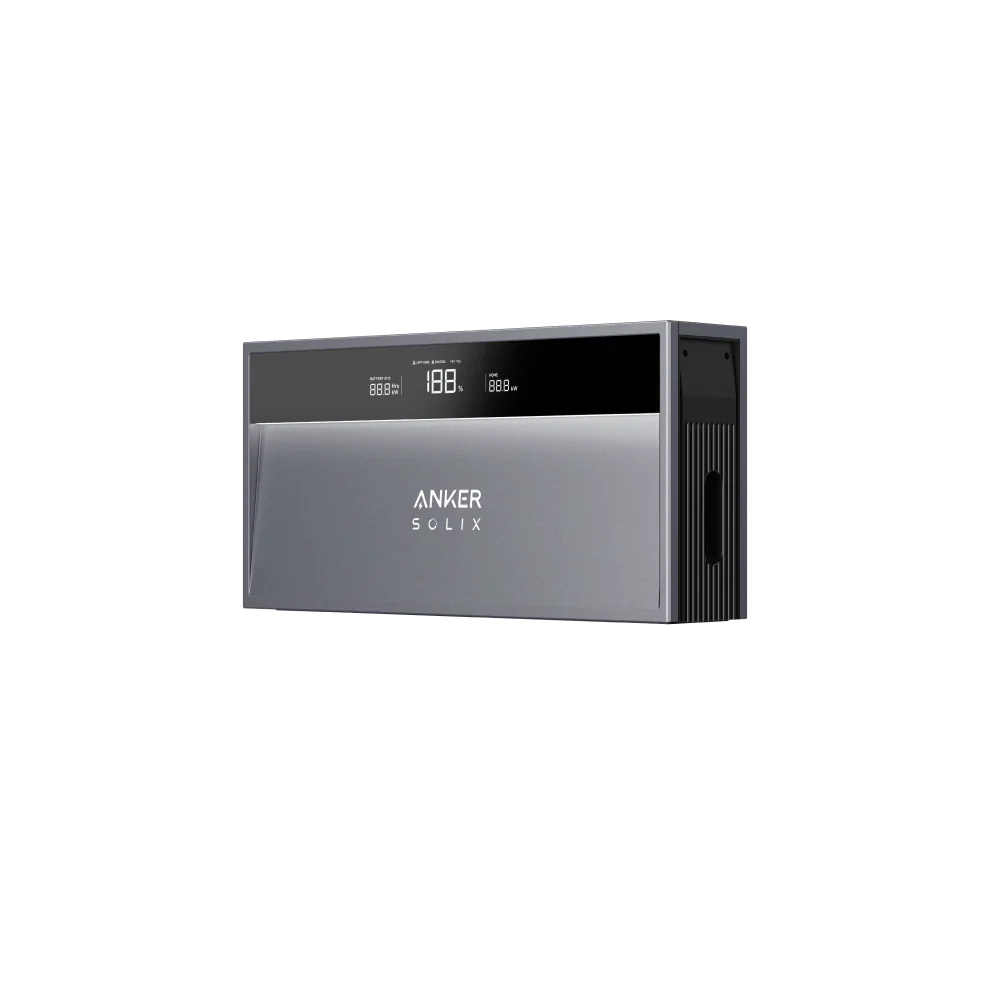

Anker Solix X1-H12K-T 3-Phase Hybrid Inverter

€1.933,58 incl. VAT
Shipping calculated at checkout.

Power for the Extreme: 12kW Hybrid Performance

The Anker Solix X1-H12K-T represents the peak of 3-phase residential energy storage. This 12kW hybrid inverter combines industrial-grade power with an unprecedented slim design of just 150mm depth. Designed for larger homes and maximum independence, the system switches to backup mode in less than 10ms during power outages. With its robust IP66 housing and SG-Ready functionality, it is the ideal heart for a high-performance smart energy ecosystem.

  • Power: 12 kW AC output (3-Phase) & high PV input capability.
  • Design: Ultra-slim profile of 150mm for aesthetic integration.
  • Robust: IP66 & C5 Corrosion Protection (-25°C to 60°C).
  • Warranty: 10-Year manufacturer's warranty for maximum peace of mind.

Technical Specifications

  • Model: X1-H12K-T (3-Phase)
  • AC Power: 12 kW (Nominal)
  • PV Input: 2 MPPTs (Voltage range: 150V-1000V)
  • System Efficiency: 98.0% Max. / 97.5% EU
  • Switchover Time: < 10 ms (UPS-level Backup)
  • Dimensions: 670 × 150 mm (Width/Depth variable per config)
  • Connectivity: Wi-Fi, Ethernet, Bluetooth, 4G (Optional)
  • Certifications: VDE-AR-N 4105, CE, IEC/EN 62109-1/-2, IP66
What is included in the package?

The Anker Solix X1 is delivered complete for professional installation:

  • 1x Anker Solix X1-H12K-T Power Module
  • 1x Wall Mounting Bracket
  • 1x Wi-Fi/Ethernet Dongle
  • 1x Smart Meter (3-Phase, including CTs)
  • 1x Set AC/DC Connectors
  • 1x Set of Cable Covers & Side Panels
  • 1x User Manual & Quick Start Guide
Which batteries are compatible with this system?
The X1-H12K-T is an integrated "All-in-One" system and works exclusively with the modular Anker Solix X1 Battery Modules (5kWh LFP). This guarantees that energy management software, safety protocols, and firmware updates work seamlessly without third-party compatibility risks.
Is the system expandable?
Yes, the scalability is immense. You can expand modularly from 5kWh to 30kWh (6 battery modules) per 12kW Power Module. For larger projects, multiple X1 systems can be connected in parallel to achieve up to 180kWh of storage capacity.
Safety and Installation
Safety is paramount with active temperature monitoring and integrated fire extinguishers in the battery modules. The installation is IP66 certified (dust and waterproof), making outdoor placement no problem at all. The system meets the strictest standards such as IEC 62619 and UN38.3.
Is this battery suitable for dynamic energy tariffs?
Absolutely. The Anker Solix X1 features AI-driven software that works perfectly with dynamic hourly rates. The system can automatically charge when electricity prices are low (or negative) and discharge during peak hours. This is essential for maximizing ROI and minimizing grid dependency.

View the full collection: Anker Solix X1 Collection

Download Datasheet Download Manual
