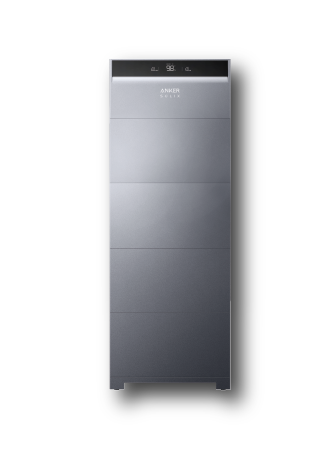

Anker Solix X1-H12K-T 3PH + 20 kWh storage

€8.782,18 incl. VAT
Shipping calculated at checkout.

The Anker Solix X1 (12kW + 20kWh) is the most powerful configuration for high-energy households. This system combines the top-tier 12kW 3-phase hybrid inverter with a massive 20kWh storage capacity (4 modules). This allows you to support your heat pump during winter or fully charge your electric vehicle overnight using stored solar energy.

Thanks to the unique "Energy Optimizer," each 5kWh module operates independently, ensuring up to 5% higher yield over its lifespan. Despite the large capacity, the system remains slim (150 mm deep) and safe. The IP66 enclosure protects against all weather conditions (-25°C to 60°C). In case of a power outage, the system switches to island mode within 10ms, providing enough power to run your entire home.

  • Maximum Performance: 12kW AC power for simultaneous use of heat pump, cooking, and EV charging.
  • Massive 20kWh Capacity: Minimize grid reliance, even with high consumption.
  • Full Black Start: Functions completely off-grid during power outages (<10ms).
  • Modular & Flexible: 15cm deep design, expandable and weatherproof (IP66).
Technical Specifications & Certifications:
  • Model: Anker Solix X1-H12K-T (3PH) + 20kWh
  • MPN: ANK-X1-H12K-T (Power Module)
  • Configuration: 1x Inverter + 4x 5kWh Battery Modules
  • Weight: 243 kg (Total System)
  • Efficiency: 98.0% (Max) / 97.5% (Euro)
  • Certification: VDE-AR-N 4105, CE, IP66, UN38.3
  • Warranty: 10 Years Limited Warranty
What is included in the package?
  • 1x Anker Solix X1 Power Module (12kW Hybrid Inverter)
  • 4x Anker Solix 5kWh Battery Module (Total 20kWh)
  • 1x Anker Solix Wi-Fi/4G Dongle
  • 1x Smart Meter (3-Phase) + CT Clamps
  • 1x Wall Mounting Bracket Set (Complete set) & Hardware
  • 1x User Manual & Installation Guide
Is this system compatible with my solar panels?
Yes, this is an All-in-One system with a powerful 12kW hybrid inverter. You connect your panels directly to the 2 MPPT trackers (suitable for high-power panels from Aiko, Jinko, DMEGC, etc.). No separate Solis or GoodWe inverter is needed. If you already have an inverter, the Solix X1 can also be installed as an AC-coupled (retrofit) solution.
Why choose 20kWh storage?
20kWh is the ideal capacity for "Sector Coupling": combining electricity, heating (heat pump), and mobility (EV). With 20kWh, you can cover the high demand of a heat pump in the evening/night or charge your car cheaply with dynamic energy prices.
How is this system installed (Weight/Dimensions)?
The total weight is 243 kg, but the system is modular. The batteries and inverter are mounted separately on the wall, allowing for installation by 1-2 people. The modules can be arranged in one tall tower or (if supported by the bracket) in two columns side-by-side, depending on the available space. The total depth remains only 150 mm.
View full collection: Anker Solix X1 Systems (EN)
Download Datasheet Download Manual
