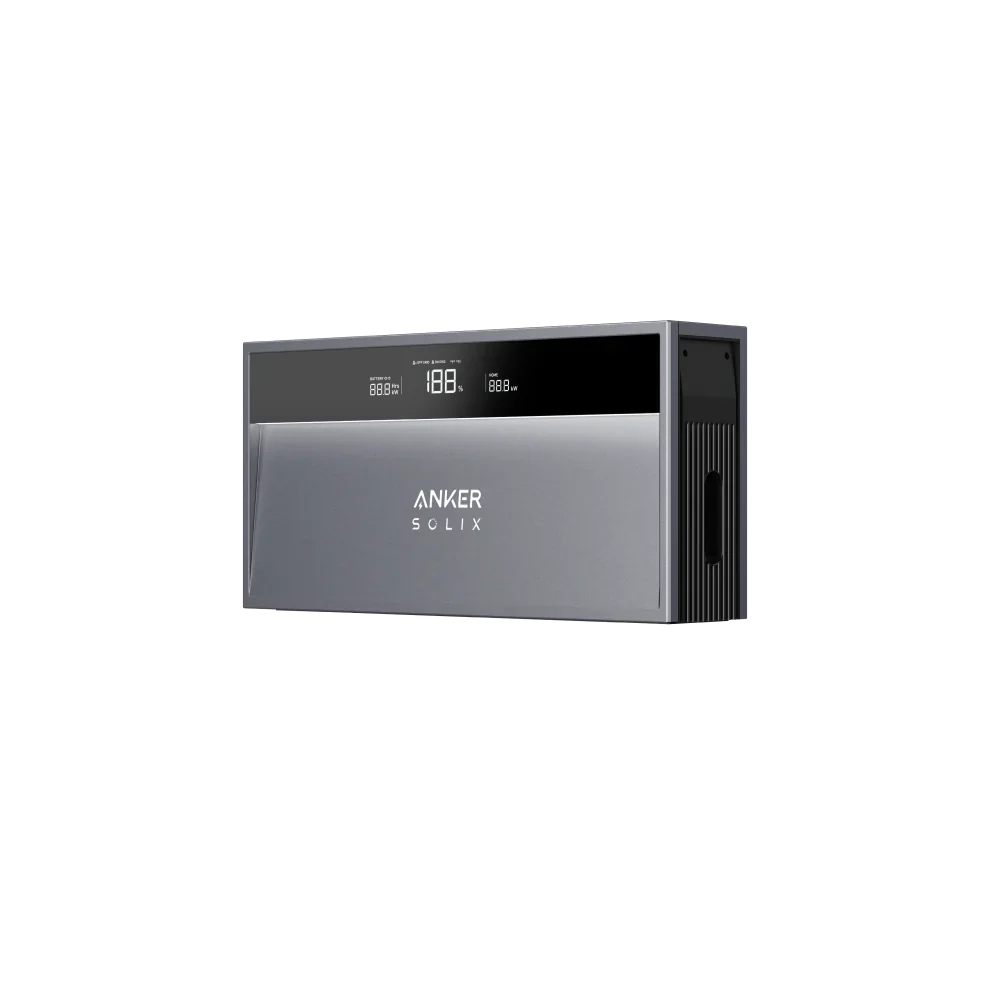

Anker Solix X1-H3.68K-S Single-Phase Hybrid Inverter

€1.179,75 incl. VAT
Shipping calculated at checkout.

Energy Storage Revolution: Ultra-Slim & Powerful

The Anker Solix X1-H3.68K-S redefines residential energy storage. This single-phase hybrid inverter combines an impressive 3.68kW output with an ultra-thin profile of just 150mm. Acting as the intelligent heart of your energy ecosystem, it seamlessly integrates PV generation and battery storage. With its IP66 enclosure and whisper-quiet operation (<30dB), the Solix X1 is suitable for both indoor and outdoor installations.

  • Power: 3.68 kW AC output & 7.36 kW PV input.
  • Design: Only 150mm deep for space-saving mounting.
  • Protection: IP66 rated for extreme weather conditions.
  • Reliability: Standard 10-year manufacturer warranty.

Technical Specifications

  • Model: X1-H3.68K-S (MPN: A5102GZ1)
  • AC Power: 3.68 kW (Max. 4 kVA)
  • PV Input: Max. 7.36 kW (2 MPPTs)
  • Switch Time: < 10 ms (UPS Level)
  • Efficiency: 97.4% Max. (96.5% EU)
  • Dimensions: 670 × 335 × 150 mm
  • Weight: 19 kg
  • Certifications: VDE-AR-N 4105, EN IEC 62109-1/-2, CE
What is included in the package?

The package contains all essential components for a professional installation:

  • 1x Power Module (X1-H3.68K-S)
  • 1x WLAN Dongle (DG-WF-H)
  • 1x Power Sensor (DDSU666, 100A)
  • 1x Floor Mounting Base
  • 1x Wall Mount Bracket
  • 2x Side Covers (Left/Right)
  • 2x Wire Covers (Left/Right)
  • 4x PV Connectors (+/-)
  • 1x RJ45 Connector with resistors
  • Various terminal blocks and dust caps
Which batteries are compatible with this system?
This hybrid inverter is exclusively designed for seamless integration with the Anker Solix X1 Battery Modules (5kWh LFP). This closed ecosystem guarantees optimal communication, maximum safety, and the highest efficiency.
Is the system expandable?
Yes, the Anker Solix X1 features a modular design. You can start with a base capacity of 5kWh and easily expand it later up to a maximum of 30kWh (6 modules) per inverter. This makes the system future-proof for changing energy needs.
How safe and robust is the installation?
The X1 series meets the strictest safety standards (IEC 62109). The enclosure is fully IP66 certified, meaning it is dust and waterproof and resistant to harsh weather conditions (-25°C to 60°C). Additionally, the system features integrated surge protection (Type II DC / Type III AC).
Does this inverter help reduce energy costs?
Absolutely. As a hybrid system, the Anker Solix X1 allows you to store excess solar energy directly instead of feeding it back to the grid. With a backup switch time of less than 10 milliseconds and smart energy management features, you maximize your self-consumption, which is crucial for minimizing energy bills and achieving energy independence.

View the full collection: Anker Solix X1 System

Download Datasheet Download Manual
