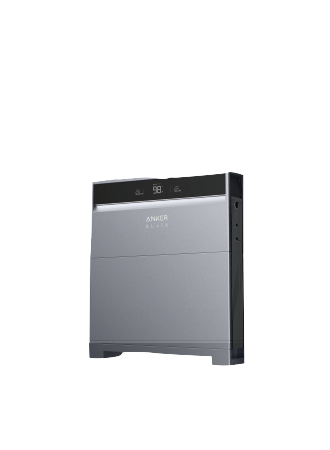

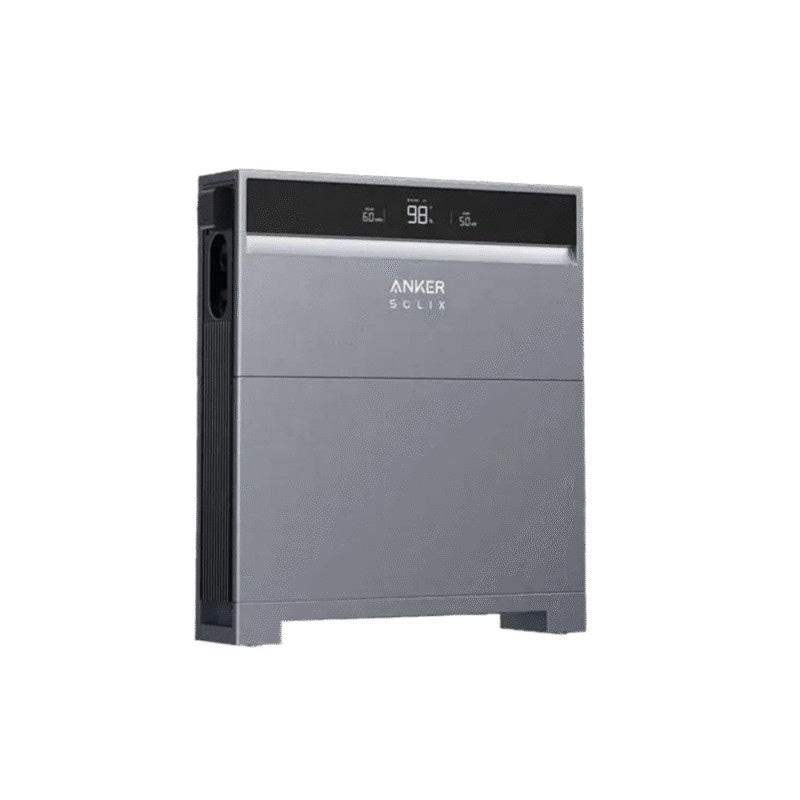

Anker Solix X1-H3.68K-S package with 5kWh battery module

The Anker Solix X1-H3.68K-S package is a compact 1-phase hybrid solution with a storage capacity of 5 kWh . This package is ideal for households that want to get started with solar energy storage and back-up functionality without starting too big. Thanks to the integrated control and high efficiency, your self-consumption of solar energy is maximized.

Key Features:

1-phase hybrid inverter with integrated EMS control

Storage capacity: 5 kWh, expandable to 30 kWh

Max. PV input: 7.36 kW via 2 MPP trackers

On-grid power: 3.68 kW

Backup power: 3.68 kW, peak 7.2 kVA (10 s)

Efficiency up to 97.4%

Protections: overvoltage, short circuit, temperature and polarity

Technical specifications:

• Battery type: LFP (Lithium iron phosphate)

• Battery capacity: 5 kWh

• Battery voltage: 350 – 550 VDC

• Max. charge/discharge power: 3 kW

• Dimensions (inverter): 670 × 335 × 150 mm

• Weight: 19 kg (inverter), 51 kg (battery)

• Total package weight: 70 kg

• Protection class: IP66

• Operating temperature: −25 °C to +60 °C

• Warranty: 10 years

This package consists of the following products:

1 × Anker Solix X1-B5-H 5 kWh battery module
1 × Anker Solix X1-H3.68K-S Power Module

Datasheet download
