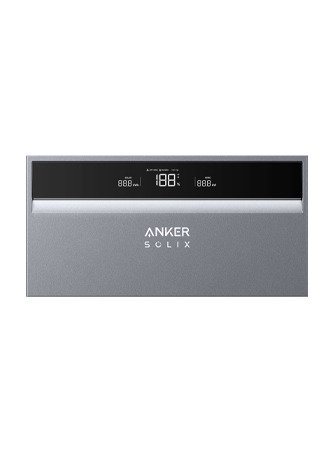

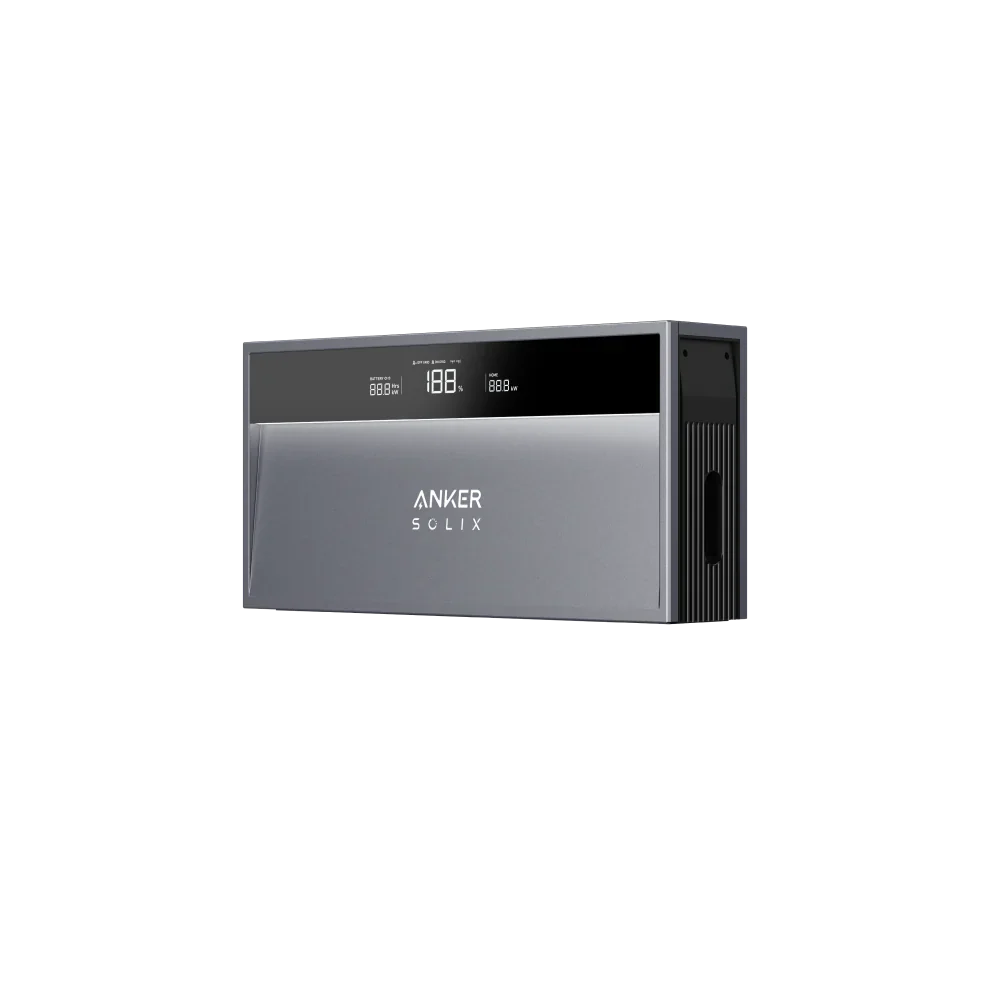

Anker Solix X1-H4.6K-S Single-Phase Hybrid Inverter

€1.195,48 incl. VAT
Shipping calculated at checkout.

Next-Gen Energy Storage: Powerful & Slimm

The Anker Solix X1-H4.6K-S is the ideal single-phase hybrid inverter for households serious about energy independence. With a robust 4.6 kW AC output and an impressive 9.2 kW PV input capacity, you get the most out of your solar panels. The ultra-slim design (150mm) and whisper-quiet operation allow for installation in any space, while the IP66 certification guarantees durability, even outdoors.

  • Capacity: 4.6 kW AC output & 9.2 kW PV input (200% oversizing).
  • Design: Minimalist and only 150mm deep.
  • Robust: IP66 enclosure withstands extreme weather conditions.
  • Reliability: Standard 10-year manufacturer warranty.

Technical Specifications

  • Model: X1-H4.6K-S
  • AC Power: 4.6 kW (Max. 5 kVA)
  • PV Input: Max. 9.2 kW (2 MPPTs)
  • Switch Time: < 10 ms (UPS Level)
  • Efficiency: 97.5% Max. (96.7% EU)
  • Dimensions: 670 × 335 × 150 mm
  • Weight: 19 kg
  • Certifications: VDE-AR-N 4105, EN IEC 62109-1/-2, CE
What is included in the package?

The Anker Solix X1 comes complete for installation:

  • 1x Power Module (X1-H4.6K-S)
  • 1x WLAN Dongle (DG-WF-H)
  • 1x Power Sensor (DDSU666, 100A)
  • 1x Floor Mounting Base & 1x Wall Mount Bracket
  • 2x Side Covers & 2x Wire Covers (Left/Right)
  • 4x PV Connectors (+/-)
  • 1x RJ45 Connector with resistors
  • Complete set of screws and terminal blocks
Which batteries work with this inverter?
The X1-H4.6K-S is part of the closed Anker Solix ecosystem. It works exclusively with the Anker Solix X1 battery modules (5kWh LFP). This ensures a plug-and-play installation, optimal safety, and the highest possible system efficiency without compatibility issues.
Is this system future-proof?
Yes. With feed-in tariffs decreasing, self-consumption is crucial. This inverter can handle up to 9.2 kW of solar power and store it directly in the battery before it hits the grid. Thanks to the <10ms switchover time, you also have a full-fledged emergency power supply, making you less dependent on the power grid.
How much battery capacity can I connect?
The system is modular and scalable. You can start with one 5 kWh module and stack it up to a maximum of 30 kWh (6 modules) on this single inverter. This makes it easy to grow your storage with your energy needs (e.g., when purchasing a heat pump or EV).
How do I install this system?
The system is designed for flexible installation: both floor and wall mounting are possible with the included brackets. Thanks to the IP66 rating, the unit can also be mounted outdoors. Commissioning is done via the Anker Solix Professional App. Watch the installation video at the bottom of this page for step-by-step instructions.

View the full collection: Anker Solix X1 System

Download Datasheet Download Manual
