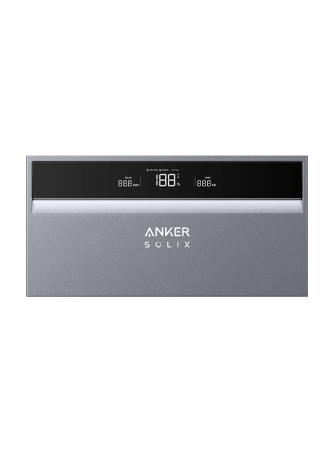

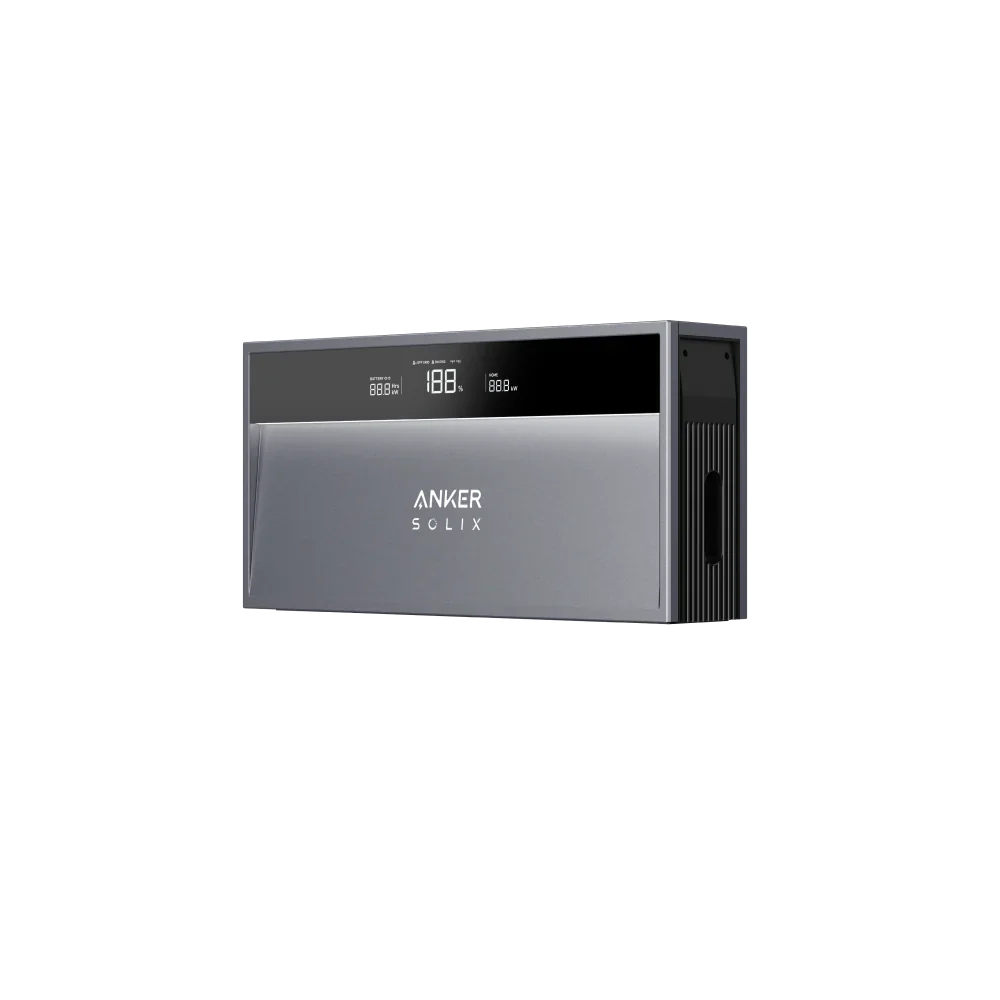

Anker Solix X1-H5K-T 3-Phase Hybrid Inverter
Couldn't load pickup availability
The Anker Solix X1-H5K-T sets a new standard for 3-phase residential energy storage. This hybrid inverter combines a reliable 5kW output with a revolutionary slim design of just 150 mm depth. The system achieves maximum independence by seamlessly integrating PV generation and battery storage, all while operating at a whisper-quiet level of under 30 dB.
- Smart Performance: 5 kW AC output and support for up to 10 kW PV input (200% oversizing).
- Ultra-Slim Design: Only 15 cm deep, ensuring a space-saving and sleek integration for any home.
- UPS-Level Backup: Switches to backup power in less than 10ms during grid outages for continuous security.
- Extreme Resilience: Fully IP66-rated and whisper-quiet, making it suitable for any indoor or outdoor location.
3-Phase Revolution: Compact, Powerful & Intelligent
The X1-H5K-T is designed to be the heart of your modern energy management. Whether installed in a technical room or on an exterior wall, the IP66 enclosure protects the high-end electronics from the harshest weather conditions. Thanks to AI-driven software, you maximize self-consumption and minimize dependency on rising electricity prices.
| Property | Value |
|---|---|
| Model | Anker Solix X1-H5K-T (3-Phase) |
| Nominal AC Power | 5,000 W (5 kW) |
| PV Input Range | Max. 10 kW (2 MPPTs) |
| Maximum Efficiency | 98.0% (97.1% EU) |
| System Depth | Only 150 mm (Ultra-slim) |
| Protection Rating | IP66 (Dust and Waterproof) |
| Warranty | 10-Year Manufacturer Warranty |
| Weight | 30 kg (Power Module) |
What is included in the package?
The Anker Solix X1-H5K-T is delivered as a complete, ready-to-install package:
- 1x Power Module (X1-H5K-T Inverter)
- 1x 3-Phase Smart Meter (DTSU666 including CT clamps)
- 1x WLAN/Ethernet Dongle for app monitoring
- Wall mounting bracket, floor mounting set, and cable covers
- All necessary connectors and user manuals
Which batteries and solar panels are compatible?
The X1-H5K-T is an integrated system designed exclusively for use with Anker Solix X1 Battery Modules (5kWh LFP). Regarding PV input, the system is universally compatible with Tier-1 solar panels from brands like Aiko, Jinko Solar, DMEGC, Hyundai, Trina Solar, Longi, and JaSolar.
Is the system expandable later on?
Yes, the system is fully modular. You can start with a single 5kWh battery module and expand up to 30kWh (6 modules) per inverter. For even larger energy needs, up to 6 full X1 systems can be connected in parallel.
How safe and robust is the installation?
The X1 series is built for extremes. With an IP66 certification, the enclosure is completely dust and waterproof, withstanding temperatures from -25°C to 60°C. Additionally, it features AFCI (Arc Fault Circuit Interrupter) and active temperature monitoring.
Does this system help with energy costs?
Absolutely. With changing energy regulations, self-consumption is key. The Anker Solix X1 stores your excess solar energy for use during expensive peak hours. Thanks to AI-driven 'Time-of-Use' modes, you minimize grid dependency and maximize your return on investment.
View the full collection: Anker Solix X1 System.
