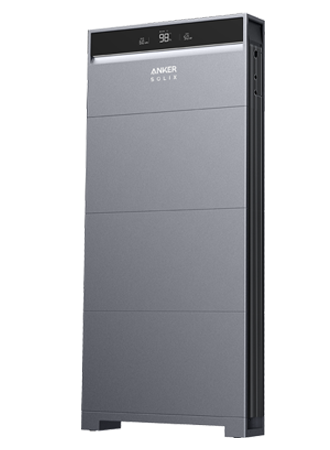

Anker Solix X1-H5K-T 3PH + 15 kWh storage

€7.009,53 incl. VAT
Shipping calculated at checkout.

The Anker Solix X1 (5kW + 15kWh) offers the perfect balance for households striving for maximum autonomy. This configuration combines an efficient 5kW 3-phase hybrid inverter with a generous 15kWh storage capacity. Thanks to the modular design and unique "Energy Optimizer" technology, each 5kWh battery module operates independently, allowing you to extract up to 5% more usable energy from your system compared to traditional series-connected systems.

Despite its large capacity, the system remains extremely slim (only 150 mm deep). The robust IP66 enclosure enables outdoor installation, from freezing cold (-25°C) to heat (60°C). In the event of a power outage, the Solix X1 switches to Full Black Start mode within 10ms, keeping your home running completely off-grid.

  • Maximum Storage, Compact Form: 15kWh capacity in a 15cm thin body.
  • All-in-One 3-Phase: 5kW inverter integrated, no separate components needed.
  • Extremely Weatherproof: IP66 certified for direct outdoor installation.
  • Module-Level Optimization: Eliminates the 'barrel effect'; every module performs at maximum.
Technical Specifications & Certifications:
  • Model: Anker Solix X1-H5K-T (3PH) + 15kWh
  • MPN: ANK-X1-H5K-T (Power Module)
  • Dimensions: 670 x 1600 x 150 mm (Inverter + 3 Modules)
  • Weight: 186.5 kg (Total System)
  • Efficiency: 98.0% (Max) / 97.5% (Euro)
  • Certification: VDE-AR-N 4105, CE, IP66, UN38.3, IEC 62619
  • Warranty: 10 Years Limited Warranty
What is included in the package?
  • 1x Anker Solix X1 Power Module (5kW Hybrid Inverter)
  • 3x Anker Solix 5kWh Battery Module (Total 15kWh)
  • 1x Anker Solix Wi-Fi/4G Dongle
  • 1x Smart Meter (3-Phase) + CT Clamps
  • 1x Wall Mounting Bracket Set (for 3 modules) & Hardware
  • 1x User Manual & Installation Guide
Is this system compatible with my panels?
Yes, the Anker Solix X1 replaces your traditional inverter. The system features 2 MPPT trackers and is compatible with virtually all solar panels, including top brands like Aiko, Jinko Solar, DMEGC, and Trina Solar. You do not need a separate Solis or GoodWe inverter.
Why choose 15kWh storage with a 5kW inverter?
This ratio is ideal for households that want to maximize their self-consumption to 80%+. With 5kW power, you cover the base load of your home, while the massive 15kWh battery ensures that you can run entirely on solar energy even on cloudy days and throughout long nights, without buying energy from the grid.
How safe is the installation (IP66)?
The Anker Solix X1 is designed for extreme conditions. With an IP66 certification, the system is completely dust-tight and protected against powerful water jets. The internal LFP cells are thermally stable, and each module contains sensors and insulation to eliminate fire risks.
