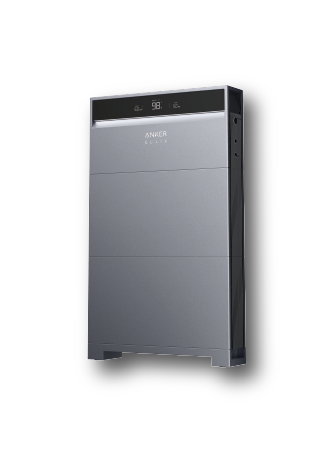

Anker Solix X1-H8K-T 3PH with 10 kWh storage

The Anker Solix X1-H8K-T 3PH package is a powerful three-phase hybrid solution with a storage capacity of 10 kWh . This system is ideal for larger households or SME applications with higher energy consumption and the need for reliable backup.

Key Features:

3-phase hybrid inverter with 8 kW output power

Storage capacity: 10 kWh, expandable to 180 kWh

Max. PV input: 12 kW via 2 MPP trackers

Backup power: 8 kW, peak 12 kVA (10 s)

Efficiency up to 98%

IP66 housing, suitable for outdoor installation

Technical specifications:

• Battery type: LFP (Lithium iron phosphate)

• Battery capacity: 10 kWh (2 × 5 kWh)

• Battery voltage: 350 – 550 VDC

• Max. charging/discharging power: 2 × 3 kW

• Dimensions (inverter): 670 × 435 × 180 mm

• Weight: 30 kg (inverter), 102 kg (2 batteries)

Total package weight: 132 kg

• Protection class: IP66

• Operating temperature: −25 °C to +60 °C

• Warranty: 10 years

This package consists of the following products:

2 × Anker Solix X1-B5-H 5 kWh battery module
1 × Anker Solix X1-H8K-T 3PH Power Module

Datasheet download
