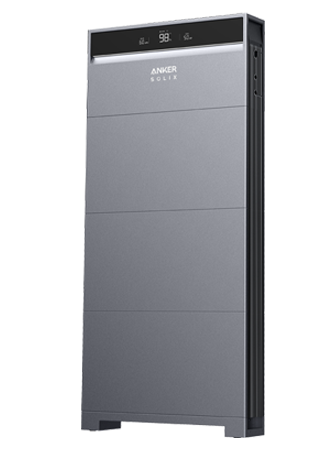

Anker Solix X1-H8K-T 3PH with 15 kWh storage

€8.223,16 incl. VAT
Shipping calculated at checkout.

The Anker Solix X1-H8K-T 3PH package combines a powerful 3-phase hybrid inverter (8 kW) with a generous 15 kWh storage capacity. This system is ideal for larger households or SMBs requiring high peak loads and reliable, Synergrid-compliant backup. It is equipped with an IP66 enclosure and C5 anti-corrosion protection.

Anker SOLIX X1 (3-Phase / 8 kW / 15 kWh) – Key Features

  • Connection: Powerful 3-phase hybrid inverter (8 kW output power).
  • Capacity: Large 15 kWh storage, expandable up to an impressive 180 kWh.
  • PV Input: Max. 12 kW via 2 MPP trackers (High efficiency for large PV installations).
  • Backup: 8 kW backup power, peak 12 kVA (10 s) for optimal power security.
  • Charging Power: High maximum charge/discharge power of 3 × 3 kW.
  • Durability: Robust IP66 enclosure and industrial C5 anti-corrosion.
  • Warranty: 10-year full warranty on the system.

Technical Specifications (X1-H8K-T 3PH / 15 kWh)

  • Battery Type: LFP (Lithium Iron Phosphate)
  • Battery Capacity: 15 kWh (composed of 3 × 5 kWh modules)
  • Battery Voltage (System): 350 – 550 VDC
  • Max. Charge/Discharge Power: 3 × 3 kW
  • Dimensions (Inverter): 670 × 435 × 180 mm
  • Total Package Weight: 183 kg (Inverter: 30 kg / Batteries: 153 kg)
  • Protection Class: IP66
  • Operating Temperature: −25 °C to +60 °C (with internal heating).

This package consists of: 3 × Anker Solix X1-B5-H (5 kWh) battery modules and 1 × Anker Solix X1-H8K-T 3PH Power Module.



Download Datasheet

Frequently Asked Questions about the Anker SOLIX X1

Is this package suitable for my 3-phase connection?

Yes, the Anker Solix X1-H8K-T package is specifically designed as a three-phase hybrid system. This ensures optimal and balanced power distribution for homes and businesses with a 3-phase grid connection.

Is this 15 kWh package Synergrid compliant in Belgium?

Yes, the 8 kW 3-phase model is approved under the Synergrid guidelines for residential installations, as the inverter (8 kVA) falls below the maximum limit of 10 kVA. The storage capacity (15 kWh) is unlimited in Belgium and does not affect Synergrid compliance.
