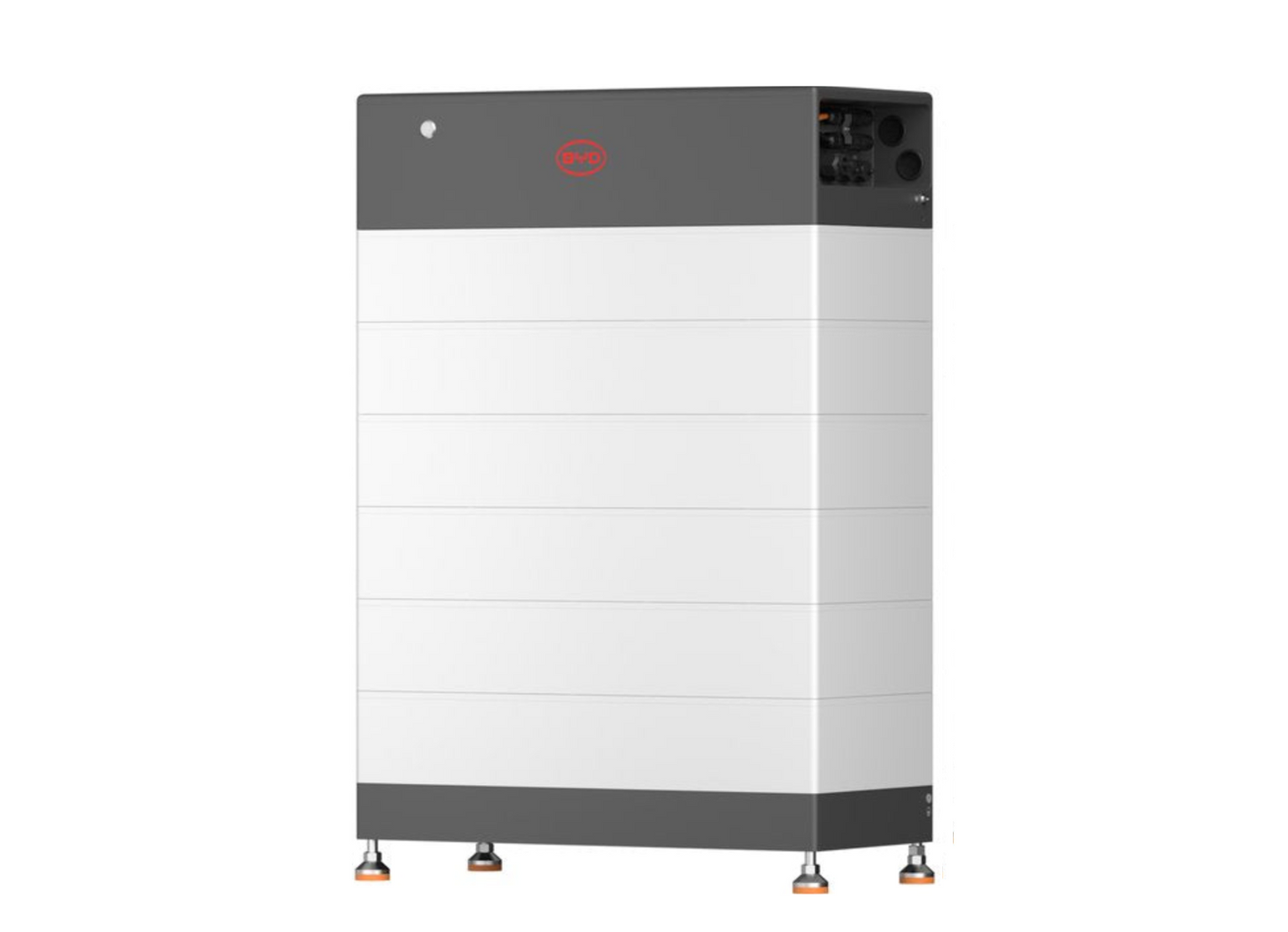

BYD battery-box HVB 17.8kWh
Couldn't load pickup availability
The BYD Battery-Box HVB 17.8 is a high-capacity energy storage system, designed for large households, heat pump owners, and small commercial applications. With a usable capacity of 17.82 kWh and a system voltage of 307 V, this configuration delivers maximum performance and efficiency.
This system consists of six stacked battery modules featuring patented Blade Battery technology (LiFePO4). This ensures not only the highest safety standard on the market but also an unprecedented lifespan, backed by a 15-year factory warranty.
- Massive Storage: 17.82 kWh capacity for maximum autonomy.
- High Voltage Power: 307.2 V nominal voltage for minimal losses.
- Proven Safety: Cobalt-free Blade Cells, tested under extreme conditions.
- Future-Proof Investment: 15-year warranty and suitable for off-grid/backup.
Technical Specifications (HVB 17.8)
| Usable Capacity | 17.82 kWh |
| Nominal Voltage | 307.2 V |
| Number of Modules | 6x HVB Module (2.97 kWh each) |
| Max. Discharge Current | 50 A (Continuous) / 98 A (15s Peak) |
| Dimensions (HxWxD) | 1467 x 610 x 282 mm |
| Weight | 177.9 kg (Modular design) |
| IP Rating | IP55 (Suitable for outdoor installation) |
What is included in this package?
The BYD HVB 17.8 set comes complete with:
- 6x BYD HVB Battery Module (2.97 kWh each)
- 1x BYD HVB BCU + Base (Control unit and base plate)
- Documentation, manuals, and installation materials
Which inverters is this system compatible with?
BYD Battery-Box HVB systems work seamlessly with leading 3-phase hybrid inverters. We recommend:
- Solis: Full hybrid support and communication.
- GoodWe: Excellent integration with ET/EH series.
- Other brands: Fronius, SMA, Kostal (please always check the latest compatibility list below).
What about the warranty?
BYD offers a unique factory warranty of 15 years on the HVB series. This is significantly longer than the market standard. View the official Warranty Letter here for all details.
Is this battery suitable for Time-of-Use tariffs?
Absolutely. With almost 18 kWh of storage, you can achieve a very high percentage of self-sufficiency even with high consumption (like a heat pump or EV). In winter and dark days, you can smartly use the battery to trade on the imbalance market (dynamic contracts), significantly shortening the payback period.
View the full BYD Collections here:
View BYD Collection (EN)
Register as an installer to view your net prices. Already have an account? Log in here.
