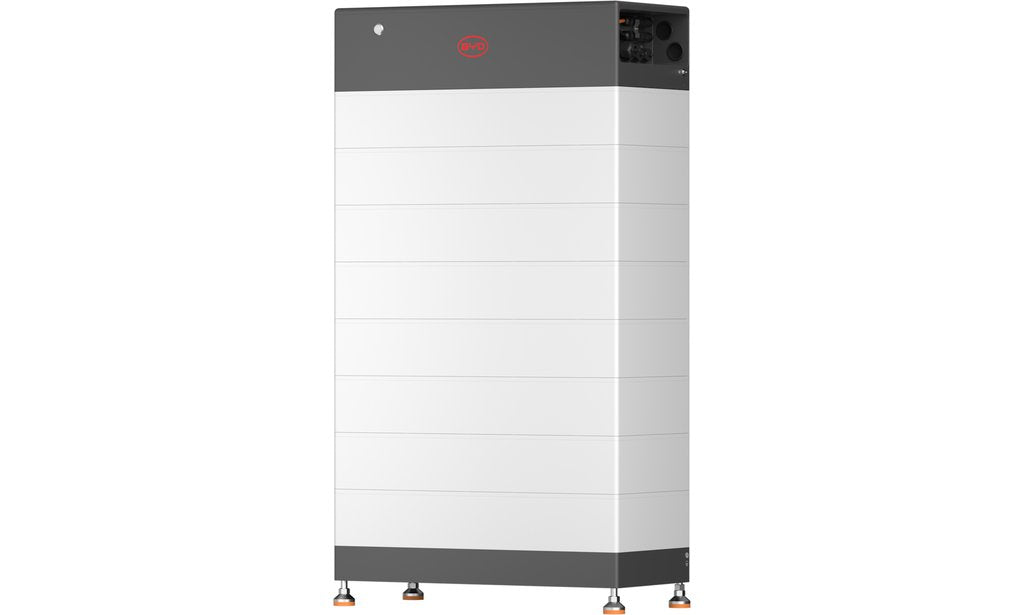

BYD battery-box HVB 23.7kWh
Couldn't load pickup availability
The BYD Battery-Box HVB 23.7 offers a massive storage capacity of 23.76 kWh, perfectly tailored for large residential and commercial applications. This system uses eight HVB modules in series, resulting in a high system voltage (409.6 V) and superior efficiency.
Thanks to the revolutionary Blade Battery technology, you are assured of maximum safety and durability, backed by an industry-leading 15-year warranty. The system is easy to expand and integrates seamlessly with hybrid inverters from Solis and GoodWe, among others.
- Massive Capacity: 23.76 kWh usable energy for maximum self-consumption.
- Proven Safety: Cobalt-free LiFePO4 technology (Blade Battery).
- High Voltage Efficiency: 409.6 V nominal for minimal conversion losses.
- Future-Proof: 15-year warranty and modular scalability.
Technical Specifications (HVB 23.7)
| Usable Capacity | 23.76 kWh |
| Nominal Voltage | 409.6 V |
| Number of Modules | 8x HVB Module (2.97 kWh each) |
| Max. Discharge Current | 50 A (Continuous) / 98 A (15s Peak) |
| Dimensions (HxWxD) | 1961 x 610 x 282 mm |
| Weight | 232.5 kg (Modular design) |
| IP Rating | IP55 (Suitable for outdoor installation) |
What is included in this package?
The BYD HVB 23.7 set comes complete with:
- 8x BYD HVB Battery Module (2.97 kWh each)
- 1x BYD HVB BCU + Base (Control unit and base plate)
- Documentation and installation materials
Which inverters is this system compatible with?
BYD Battery-Box systems work seamlessly with market leaders. We recommend:
- Solis: Full hybrid support and communication.
- GoodWe: Excellent integration with ET/EH series.
- Other brands: Fronius, SMA, Kostal (please always check the latest compatibility list below).
What about the warranty?
BYD offers an exceptional factory warranty of 15 years on the HVB series. This demonstrates confidence in the lifespan of the cells. View the official Warranty Letter here for all conditions.
Is this battery suitable for Time-of-Use tariffs?
Certainly. With nearly 24 kWh of storage, you can store a significant portion of your daily solar energy for use in the evening. This immediately increases your independence. Additionally, the system is suitable for smart control via dynamic energy contracts, allowing you to save costs even in winter.
