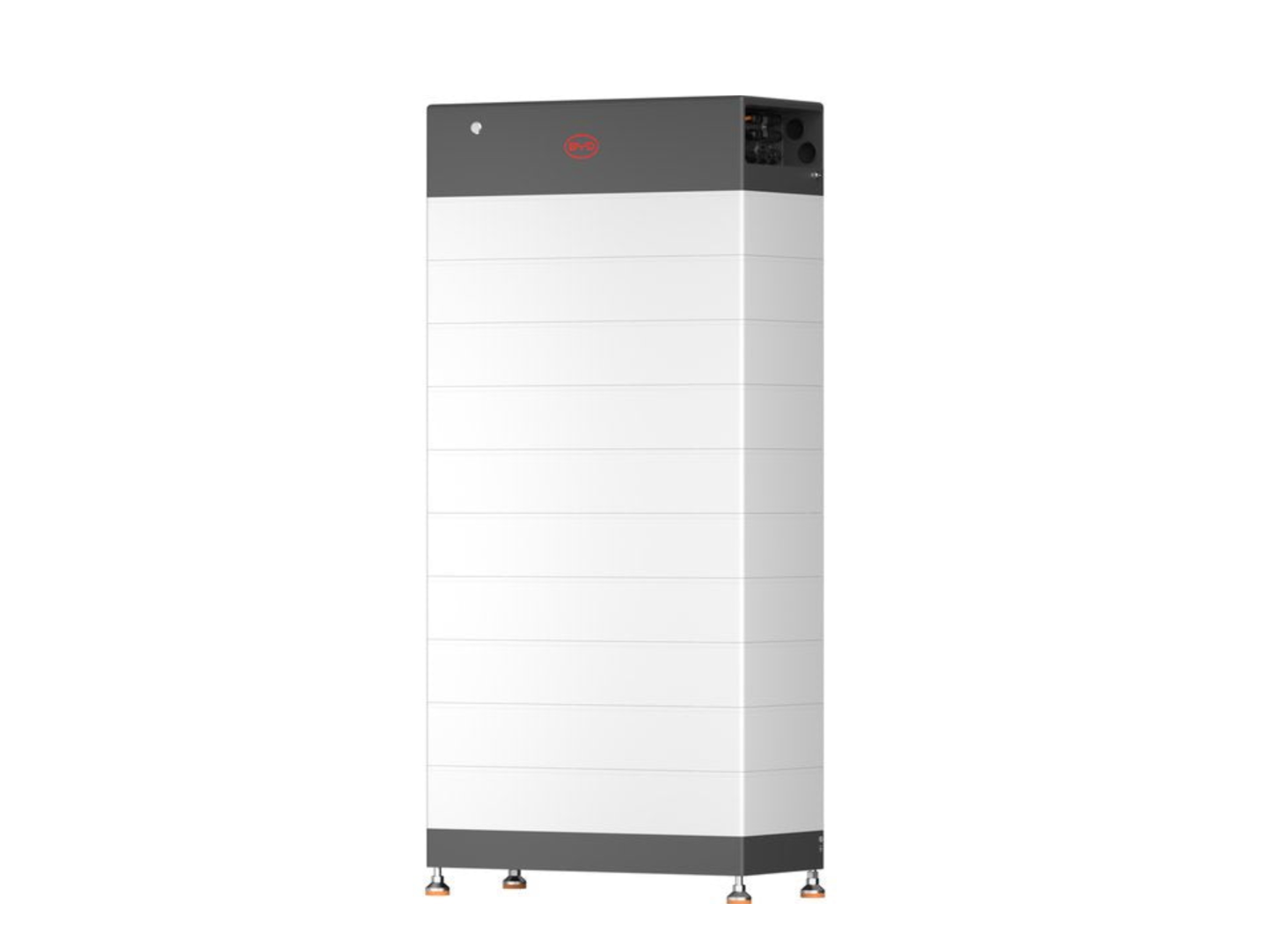

BYD battery-box HVB 29.6kWh
Couldn't load pickup availability
The BYD Battery-Box HVB 29.6 is the flagship of the HVB series, boasting an impressive storage capacity of 29.7 kWh in a single tower. This system utilizes 10 series-connected modules and achieves a system voltage of 512 V for maximum efficiency.
Thanks to the ultra-compact Blade Battery technology, the total height is limited to just 1327 mm, despite the massive capacity. With a 15-year warranty and IP55 protection, this is the ideal choice for large homes, heat pump owners, and small business applications (SME).
- Maximum Capacity: 29.7 kWh in one compact tower (only 1.33m high).
- Ultra Safe: Patented LiFePO4 Blade Battery cells.
- High Voltage: 512 V nominal for optimal performance with 3-phase inverters.
- Scalable: Connect up to 3 towers in parallel for 89.1 kWh total.
Technical Specifications (HVB 29.6)
| Usable Capacity | 29.7 kWh |
| Nominal Voltage | 512 V |
| Number of Modules | 10x HVB Module (2.97 kWh each) |
| Max. Discharge Current | 50 A (Continuous) / 98 A (15s Peak) |
| Dimensions (HxWxD) | 1327 x 610 x 282 mm |
| Weight | 287.1 kg (Modular design) |
| IP Rating | IP55 (Suitable for outdoor installation) |
What is included in this package?
The BYD HVB 29.6 set comes complete with:
- 10x BYD HVB Battery Module (2.97 kWh each)
- 1x BYD HVB BCU + Base (Control unit and base plate)
- Documentation and installation materials
Which inverters is this system compatible with?
BYD Battery-Box systems work seamlessly with market leaders. We recommend:
- Solis: Full hybrid support and communication.
- GoodWe: Excellent integration with ET/EH series.
- Other brands: Fronius, SMA, Kostal (please always check the latest compatibility list below).
What about the warranty?
BYD offers an exceptional factory warranty of 15 years on the HVB series. This demonstrates confidence in the lifespan of the cells. View the official Warranty Letter here for all conditions.
Is this battery suitable for Time-of-Use tariffs?
Absolutely. With almost 30 kWh of storage, you can run large households or small businesses almost entirely off-grid during peak hours. This system is perfect for maximizing self-consumption and leveraging dynamic energy pricing strategies.
