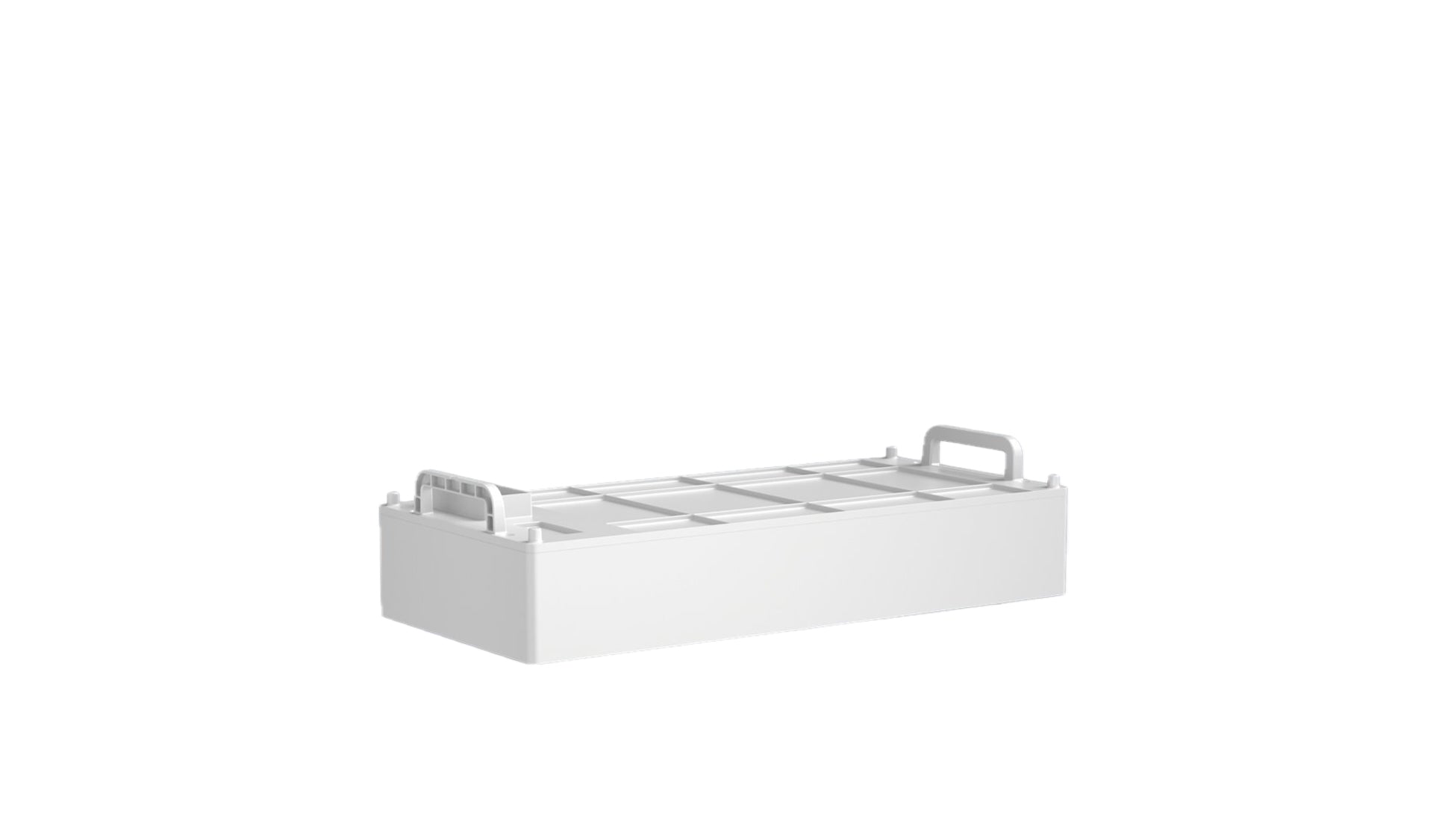

BYD battery-box HVB Battery module 2.97 kWh

€1.235,41 incl. VAT
Shipping calculated at checkout.

The BYD Battery-Box HVB Battery Module (2.97 kWh) is the original expansion module for your BYD HVB energy system. Thanks to the modular design, you can simply click this module onto your existing tower to increase storage capacity. Each module adds 2.97 kWh to your system, with a maximum of 10 modules per tower (29.6 kWh).

This module utilizes the patented BYD Blade Battery (LiFePO4) technology, guaranteeing the highest safety standard in the market and an extremely long lifespan. The robust IP55 enclosure allows for installation in garages or outdoor areas.

  • Easy Expansion: Patented plug-in design without internal wiring.
  • Top Safety: Cobalt-free LiFePO4 cells (Blade Technology).
  • Long Warranty: Covered by the 15-year factory warranty.
  • Flexible: Modules can be added at any time (at any SOC).

Technical Specifications (Per Module)

Capacity 2.97 kWh
Nominal Voltage 51.2 V
Technology LiFePO4 (Blade Battery)
Dimensions (LxWxH) 610 x 282 x 106 mm
Weight 27.3 kg
IP Rating IP55
What is in the box?

You receive:

  • 1x BYD HVB Battery Module (2.97 kWh)
  • Note: This is only the module, no BCU (control unit) or base plate.
To how many modules can I expand?

A single HVB tower supports a minimum of 2 and a maximum of 10 modules. This means a capacity between 5.9 kWh and 29.6 kWh. Please always check if your inverter supports the increased voltage (view compatibility list).

Does the warranty apply to single modules?

Yes, individual expansion modules are also covered by the industry-leading conditions. View the official Warranty Letter for details on the 15-year warranty.

Is scaling up beneficial for my ROI?

Absolutely. By adding a module, you increase your capacity to store more solar energy for evening use. This maximizes your self-consumption and allows for better optimization with Time-of-Use tariffs.

View the full BYD Collections here:
View BYD Collection (EN)

Datasheet HVB Manual
